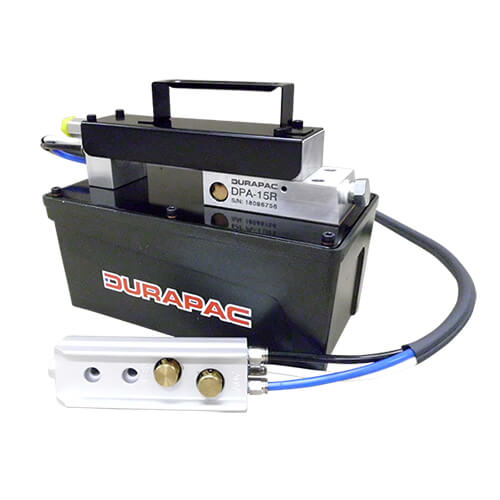

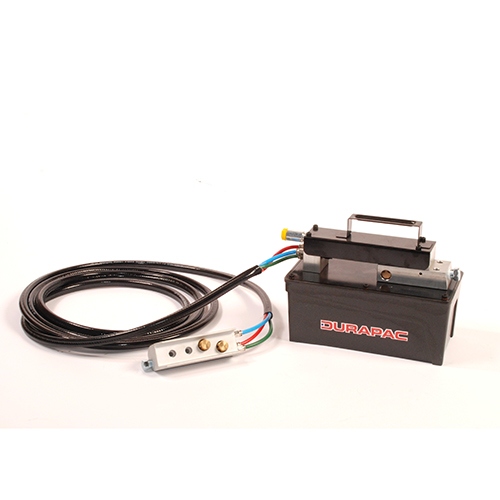

DPA-15R Remote Equipped

The DPA-15R (1.5 L) Remote Equipped Air Driven Hydraulic Power Units are ideally suited when a remote actuation of the pump is required. The pump will operate small to medium sized single acting hydraulic cylinders and tools.

DPA-15R

Advance/Hold/Retract

A 3 metre long lead with advance/hold/retract button on the remote.

Dust Cover Protection

Dust cover protection for the release control valve.

Strength

A high strength reinforced alloy oil reservoir.

700 Bar Operating Pressure

All models have a maximum working pressure of 700 bar.

Ready to Go

All pumps are supplied pre-filled with oil and ready for immediate use.

Convenient Carry Handle

A convenient carry handle is built into the unit.
DPA-15R
INSTRUCTIONS
SPECIFICATIONS
CATALOGUE
Model Number Used with Cylinder Usable Oil Capacity (cc) Pressure Rating (bar) Output Flow Rate (cm 3/min) No load Output Flow Rate (cm 3/min) Load Air Pressure Range (bar) Weight (kg)
DPA-15R S/A 1,5007009001604-128.8
