Strength
Metal parts are solid brass.
Rubber Dimples

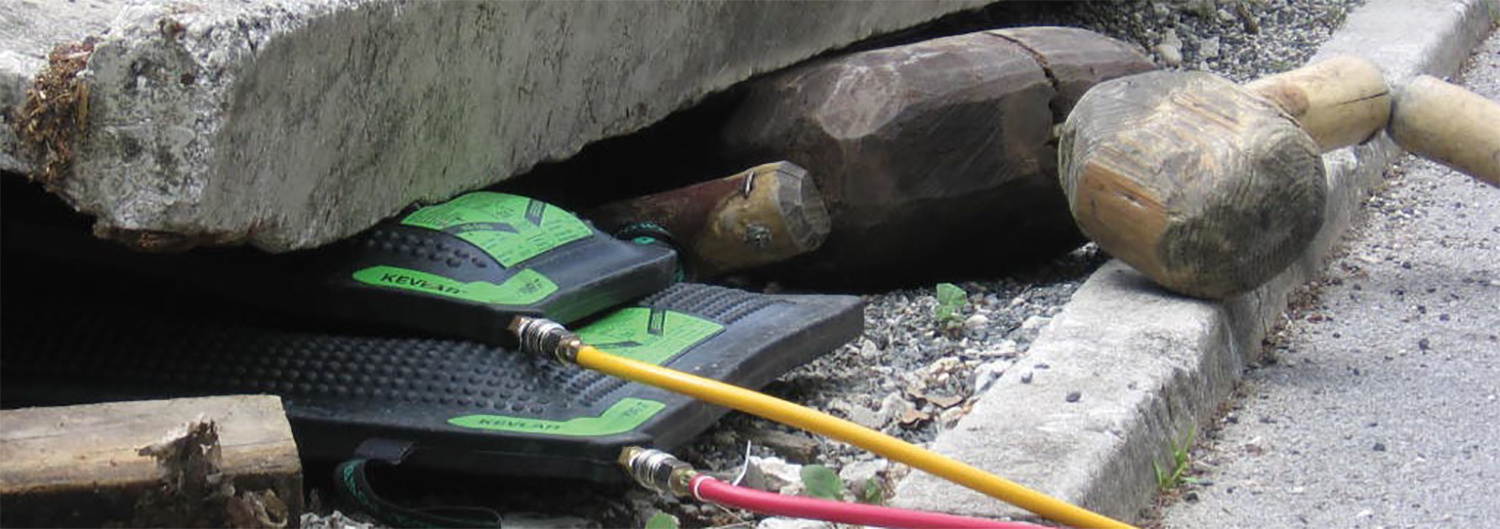

Rubber dimples on contact surfaces provide positive gripping and allow two bags to be stacked safely on top of each other (to increase the lifting height).
Fireproof & Anti-Static
Fireproof and anti-static for use in underground coal mines (use AB-4 & AB-5 controllers).
Crosshatch Reinforcing Pattern
Crosshatch reinforcing pattern made from Kevlar®.

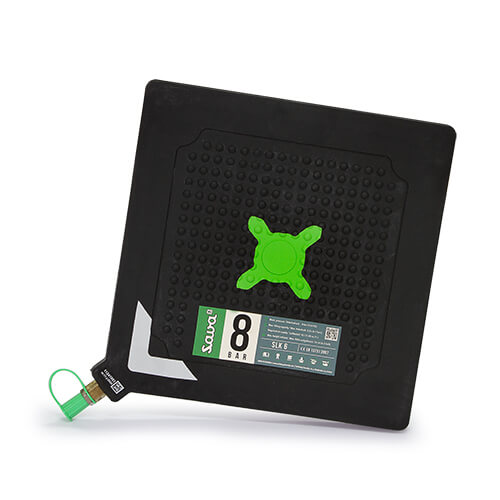

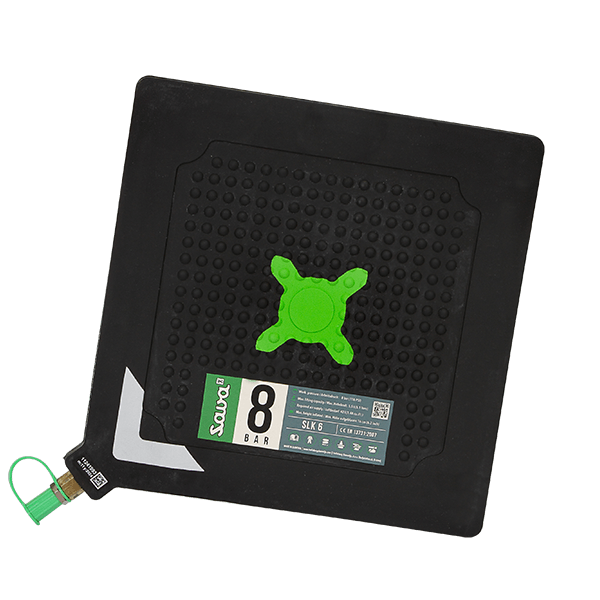

Centring Cross
Centring cross and printing are brightly coloured and bonded to the rubber for long life.
Safety Controllers & Accessories
Safety controllers and accessories allow the efficient and safe use of the KPL-Series air bags. Single and dual deadman controllers with pressure gauge and pressure relief valves offer maximum air bag inflation and deflation control, while single and dual safety controllers offer a cost effective and reliable air bag control solution. Hoses, connectors, shut-off valves and pressure regulators allow maximum flexibility in the air bag system.
| Model No. | Max. Lifting Capacity (kg) | Max. Lifting Height (mm) | Thickness (mm) | Insertion Height (mm) | Dimensions (mm x mm) | Max. Air Requirement (L) | Max. Inflation Pressure (bar) | Min. Burst Pressure (bar) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| KPL 1 | 800 | 80 | 25 | 26 | 150 x 150 | 5 | 8 | 32 | 0.55 |
| KPL 3 | 2,700 | 130 | 25 | 26 | 225 x 225 | 15 | 8 | 32 | 1.25 |
| KPL 6 | 5,500 | 160 | 25 | 26 | 300 x 300 | 42 | 8 | 32 | 2.0 |
| KPL 10 | 10,100 | 210 | 25 | 26 | 380 x 380 | 86 | 8 | 32 | 3.5 |
| KPL 14 | 13,500 | 250 | 25 | 26 | 450 x 450 | 152 | 8 | 32 | 5.0 |
| KPL 21 | 21,100 | 300 | 25 | 26 | 550 x 550 | 296 | 8 | 32 | 7.0 |
| KPL 25 | 25,200 | 340 | 25 | 26 | 610 x 610 | 416 | 8 | 32 | 9.0 |
| KPL 33 | 33,000 | 380 | 25 | 26 | 690 x 690 | 621 | 8 | 32 | 11.0 |
| KPL 45 | 44,600 | 420 | 25 | 26 | 780 x 780 | 921 | 8 | 32 | 14.0 |
| KPL 55 | 55,000 | 470 | 25 | 26 | 870 x 870 | 1,305 | 8 | 32 | 18.0 |
| KPL 70 | 70,400 | 520 | 25 | 26 | 945 x 945 | 1,505 | 8 | 32 | 22.5 |

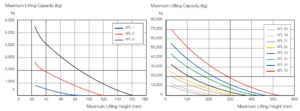

KPL Lifting Capacity v Lifting Height
 |
