SDN Jack + POWERDRIVE

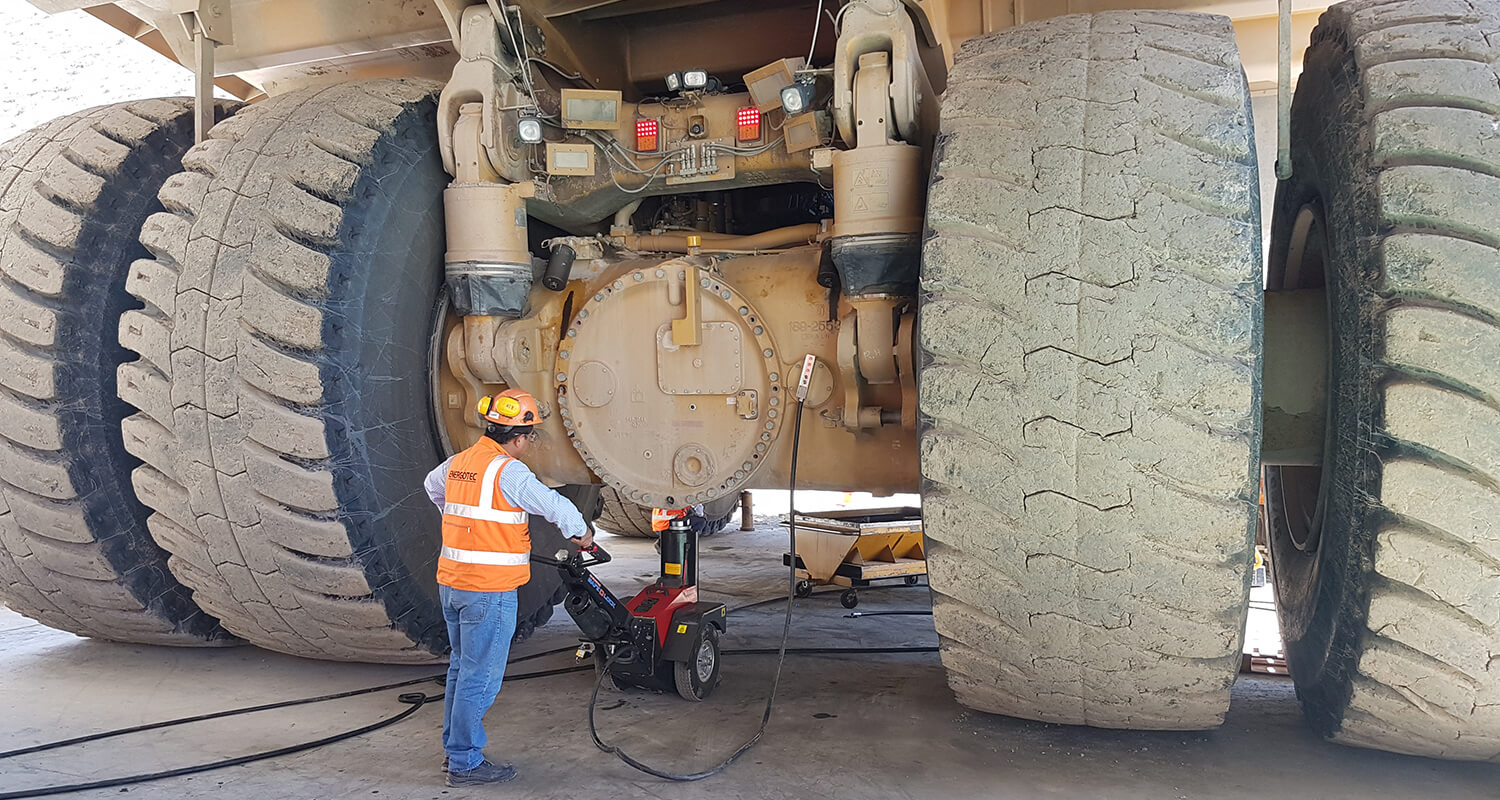

The SDN jack is an ergonomically designed portable jacking system that is easily wheeled around a job site. This unit is designed for lifting of heavy mining vehicles. It can be used on any hard surface (maintenance bays & workshops) and is easily transported by ute to site.

SDN-No-Locking-Jack

Easy to Move

The wheeled chassis has an ergonomically designed handle system which is adjustable, making it easy to move around by one person.

Strong & Reliable

The chassis frame is steel (not cast) for maximum durability and longevity.

Remote Controlled

For safety, a 5 mtr remote control pendant is supplied to keep the operator out of the way of any possible hazards.

Optional Accessories

U-rings provide mechanical load support. Extensions & Tilt Saddles are also available.

SDN + POWERDRIVE

Self-propels up workshop slopes of 5 degrees.

Controlled Load Lowering

A counterbalance valve allows for smooth, controlled lowering of the load.
SDN-No-Locking-Jack
SPECIFICATIONS
CATALOGUE
Model Number Jack Capacity Metric (tonne) Jack Capacity US (ton)* Jack Capacity (kN) Cylinder Effective Area (cm2) Collapsed Height (mm)** Stroke (mm) Oil Tank Capacity (L) Base Plate Diameter (mm)Weight (kg)
SDN-1006810011098014368040024505346
SDN-10068-PD10011098014368040024505346
SDN-1008610011098014386057124505381
SDN-10086-PD10011098014386057124505381
SDN-150681351501,32425468540024505434
SDN-15068-PD1351501,32425468540024505434
SDN-150961351501,32425497068524525476
SDN-15096-PD1351501,32425497068524525476
SDN-200681812001,78125468540024505434
SDN-20068-PD1812001,78125468540024505434
SDN-200961812001,78125497068524525476
SDN-20096-PD1812001,78125497068524525476
* Nominal Cylinder Capacity in ton - see kN values for actual capacity
** Includes load cap height of 22 mm
"-PD" suffix indicates {SDN Jack + POWERDRIVE}

Extensions, Tilt Saddles & Load Caps

Model Number Capacity (tons) Description Height (mm) Diameter (mm) Total Length (mm) Spigot Depth (mm) Spigot Diameter (mm) Weight (kg)
SDE100-100 70/100 100 mm Extension 10011216060507
SDE100-150 70/100 150 mm Extension15011221060507
SDE100-200 70/100 200 mm Extension20011226060507
SDE100-300 70/100 300 mm Extension300112360605013
SDE100-400 70/100 400 mm Extension 400127460605013
SDLC-100 70/100 Serrated Steel Load Cap * 221128260503
SDS-100N70/100 Serrated Tilt Saddle 5011211060505
SDE150-150 150150 mm Extension 15012621060507
SDE150-200 150200 mm Extension 20012626060507
SDE150-250 150250 mm Extension 25012631060507
SDE150-300 150300 mm Extension300126360605013
SDE150-350 150350 mm Extension350126410605013
SDLC-150 150Serrated Steel Load Cap * 221268260503
SDS-150/200N150/200Serrated Tilt Saddle 5912611960505
SDE200-100 200100mm Extension 10014016060508
SDE200-150 200150mm Extension 15014021060508
SDE200-200 200200 mm Extension 200140260605015
SDE200-300 200300 mm Extension 300140360605015
SDE200-400 200400 mm Extension 400140460605015
SDE200-500 200500 mm Extension 500140560605015
SDLC-200 200Serrated Steel Load Cap* 221268260504
* Supplied as standard

U-Rings

Model Number Capacity (Tons) Description Height (mm) Weight (kg)
SDNU-100-1510015mm U-Ring Saddle **150.6
SDNU-100-2510025mm U-Ring Saddle **250.9
SDNU-100-7510075mm U-Ring Saddle **752.8
SDNU-100-100100100mm U-Ring Saddle **1003.6
SDNU-100-250100250mm U-Ring Saddle **2509.0
SDNU-200-15150/20015mm U-Ring Saddle **15^
SDNU-200-25150/20025mm U-Ring Saddle **25^
SDNU-200-75150/20075mm U-Ring Saddle **75^
SDNU-200-100150/200100mm U-Ring Saddle **100^
SDNU-200-250150/200250mm U-Ring Saddle **250^
** Optional item
^ Consult Durapac
