Robust Frame
Provides convenience for transportation and mechanical protection of critical components.
Powder Coated Finish
The powder coated finish enhances appearance and reduces corrosion.
Components
Components are standard Durapac manifolds, gauges and accessories.
Spare Parts
Spare parts are available from Durapac stockists.
Couplings
Standard couplings are CR-6 high flow screw couplings. Other styles are available on request.
700 Bar Working Pressure
700 bar working pressure is compatible with all commonly available 700 bar systems.
| Model No. | Type | Description |
|---|---|---|

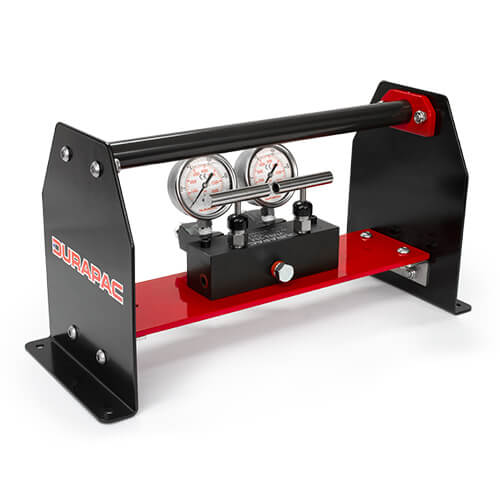

| VMN-2M-GF | Valved Manifold | 2 way steel bodied manifold with needle valves 2 x 3/8”-NPT female outlet ports, 1 x 3/8"-NPT female inlet port (centrally located opposite to the 2 outlet ports) |

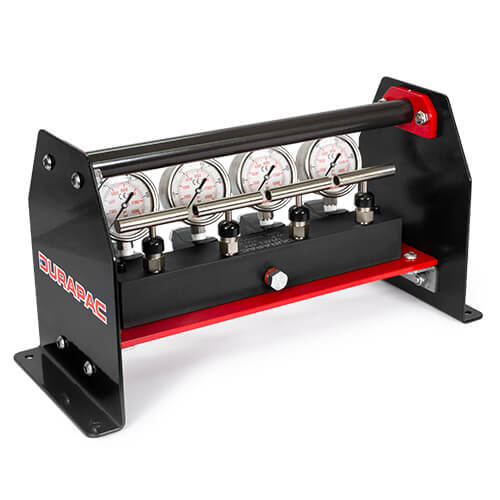

| VMN-4M-GF | Valved Manifold | 4 way steel bodied manifold with needle valves 4 x 3/8"-NPT female outlet ports, 1 x 3/8"-NPT female inlet port (centrally located opposite to the 4 outlet ports) |

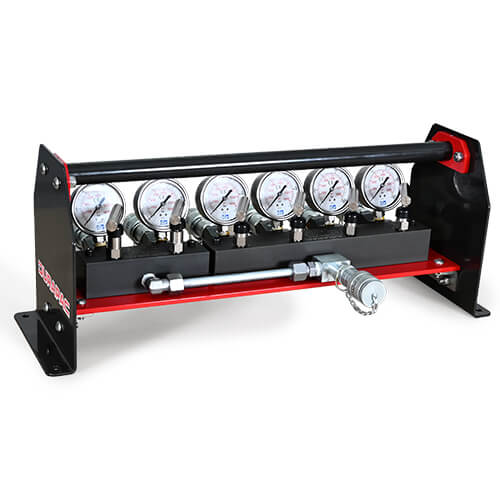

| VMN-6M-GF | Valved Manifold | 6 way steel bodied manifold with needle valves 6 x 3/8"-NPT female outlet ports, 1 x 3/8"-NPT female inlet port (centrally located opposite to the 6 outlet ports) |

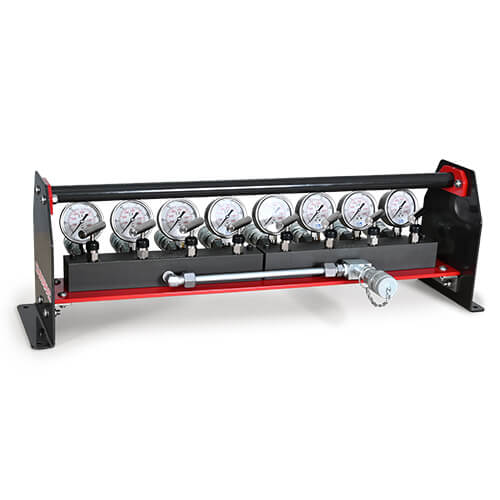

| VMN-8M-GF | Valved Manifold | 8 way steel bodied manifold with needle valves 8 x 3/8"-NPT female outlet ports, 1 x 3/8"-NPT female inlet port (centrally located opposite to the 8 outlet ports) |
Gauge Adaptor & Gauge included with each model
| Model No. | Type | Description |
|---|---|---|
| FGA-1 | Gauge Adaptor | 3/8"-NPT male x 3/8"-NPT female x 1/4"-NPT female gauge adaptor on angle |
| PG-63 | Gauge | 63 mm diam. 0-1,000 bar / 0-14,500 psi 1/4"-NPT Male |
