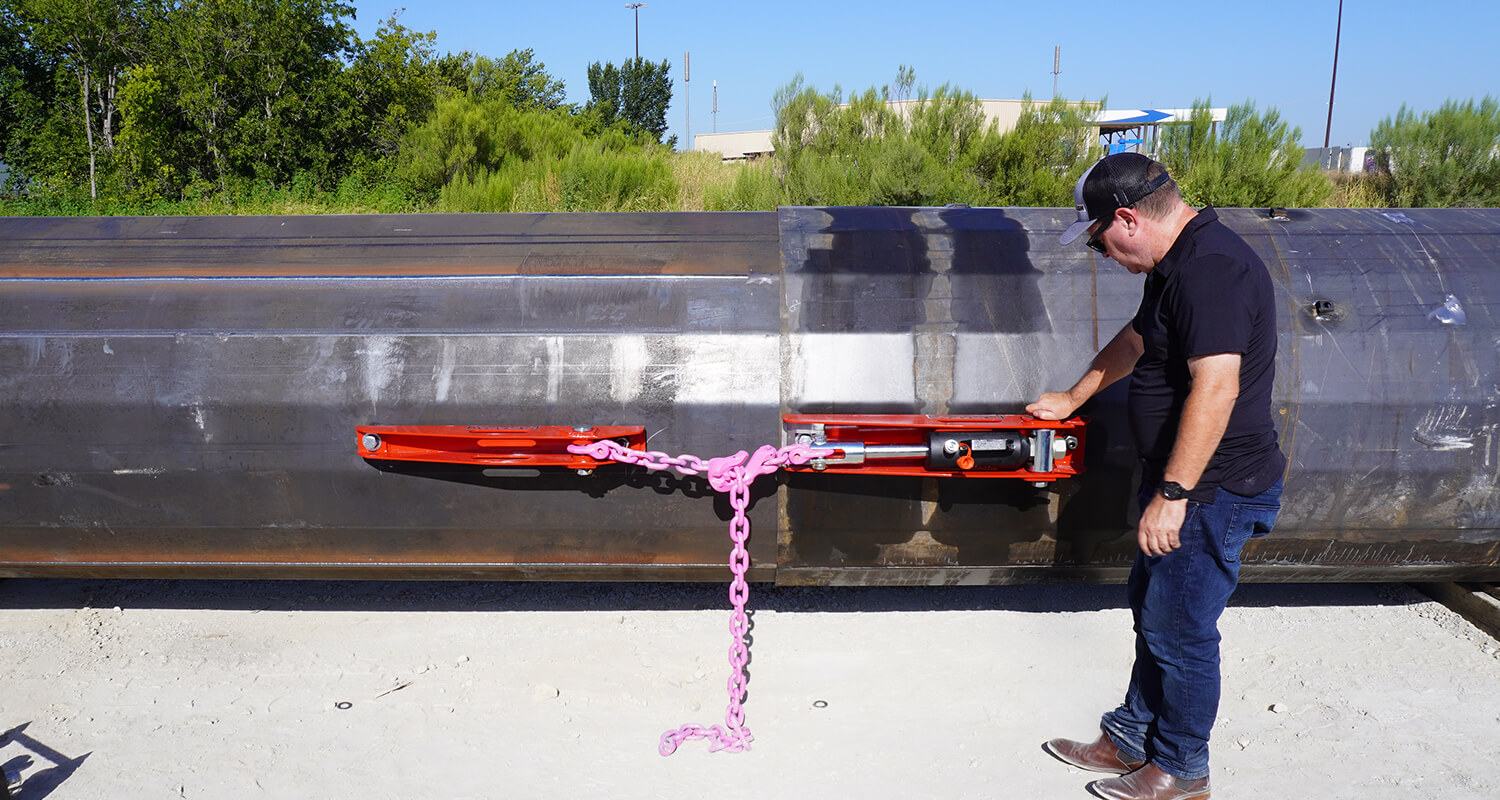

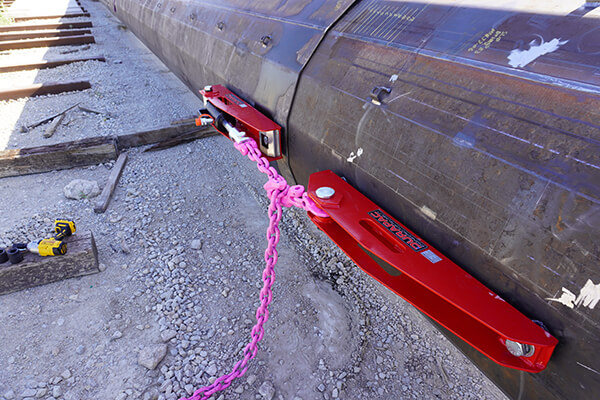

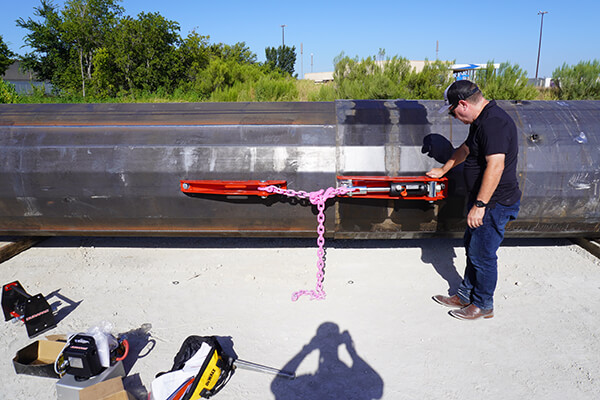

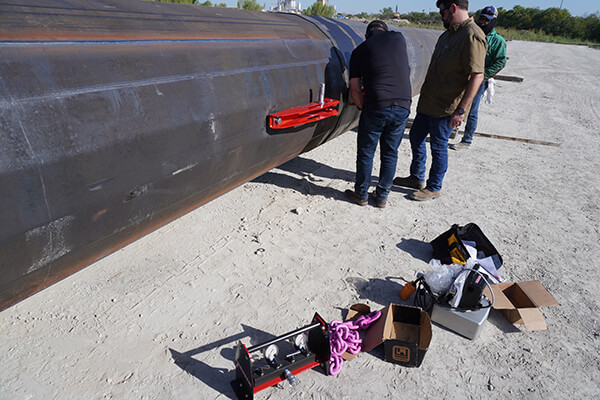

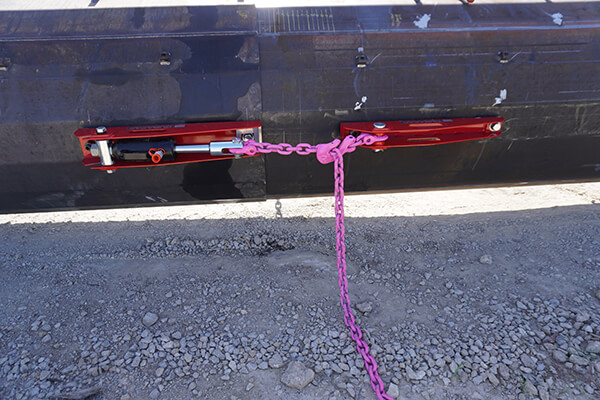

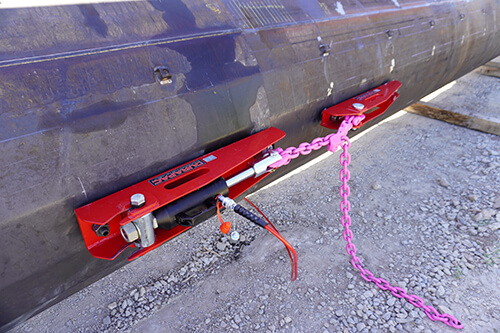

Horizontal or Vertical Operation
The system can be used when the poles are horizontal or vertical.
Solo Operation
Each component is designed to be easily handled by one person.
Simple Assembly
Step-by-step instructions are included in the Operating Manual to guide you through the assembly.
DPP-20 Standard Inclusions

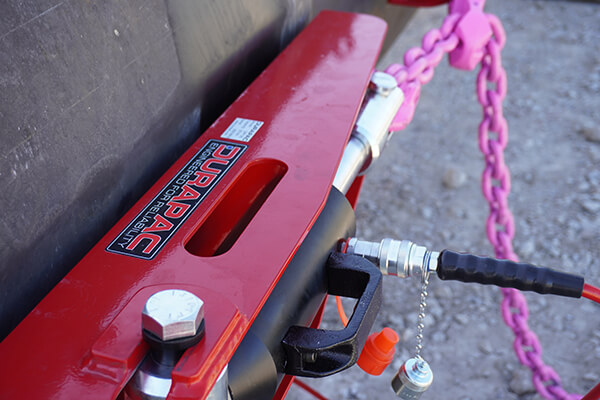

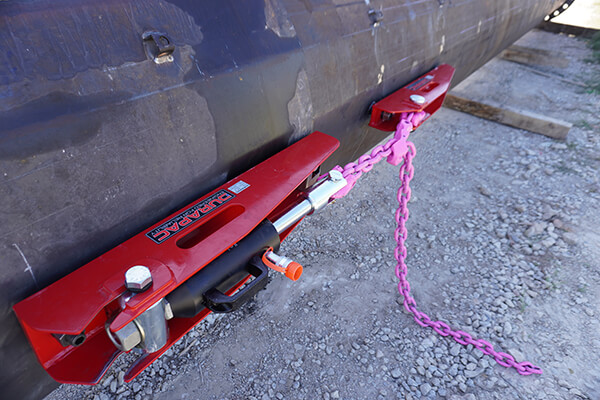

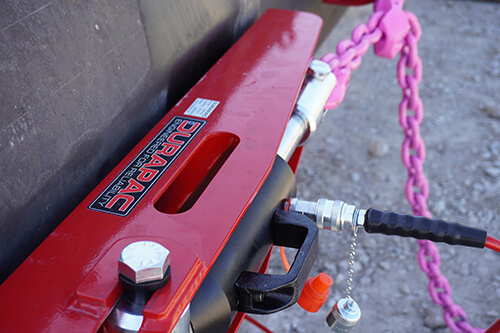

• 2 x RAP-206 Aluminum Hydraulic Pull Cylinders with internal spring return and fitted with male snap couplings
• 2 x High Strength Welded Steel Jacking Frames
• 2 x Grade 100 RUD ® VIP Chain Assemblies with Grab Hook
• Jacking bolts and studs to suit 1" jacking nuts
Convenient Kits ~ Standard Inclusions
DPP-20 can be ordered separately or as part of a kit. Kit Standard Inclusions:

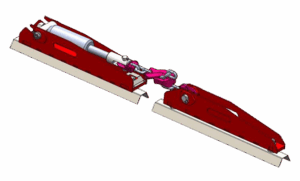

• DPP-20 Pole Pulling Assembly
• 2 x 10ft High Pressure Hydraulic Hoses fitted with female snap couplings

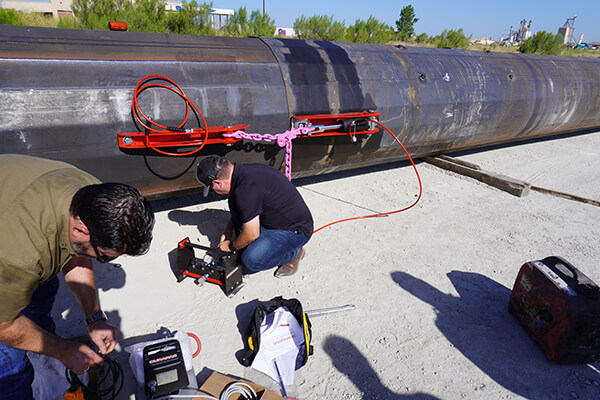

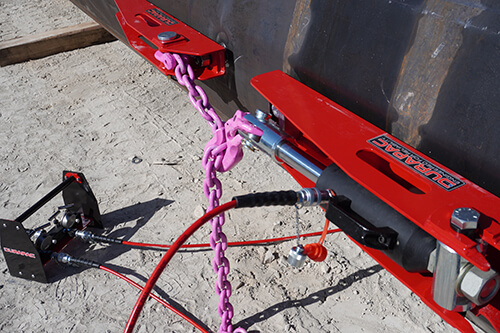

• Gauge Manifold Transport Frame with 2 x HP Gauges, Adapters female snap couplings
Kit Options
Durapac offers a range of suitable power pumps to suit. See table below for options.
| Model Number | Max. Load (lb) | Max. Stroke (In) | Pressure Rating (psi) | Chain Length (ft) | Jacking Nut Centers (In) | Max. Component Weight (lb) |
|---|---|---|---|---|---|---|
| DPP-20 | 87,000 | 5.90 | 10,150 | 8 | 30 | 45 |
Kit Standard Inclusions
| Description | Image | Pump Model No. |
|---|---|---|
| Pole Pulling Assembly |  | DPP-20 |

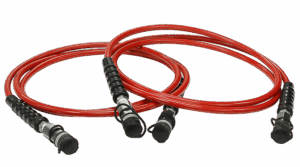

| Hydraulic Hoses |  | HPS-0603FF |

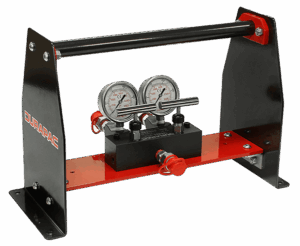

| Gauge Manifold Transport Frame |  | VMN-2M-GFC-FF |
All Standard Inclusions shown above are included in each Kit - Kit options shown below
Kit Power Options
| Kit Model No. | Pump Type | Image | Pump Model No. |
|---|---|---|---|

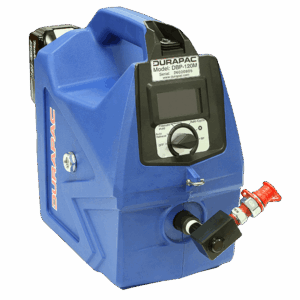

| DPP-20B | Battery Power Unit |  | DBP-120M |

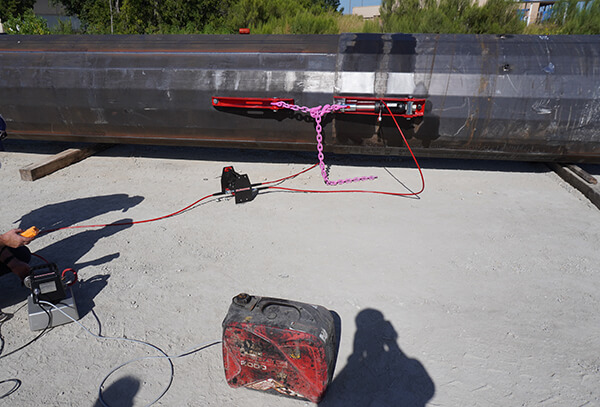

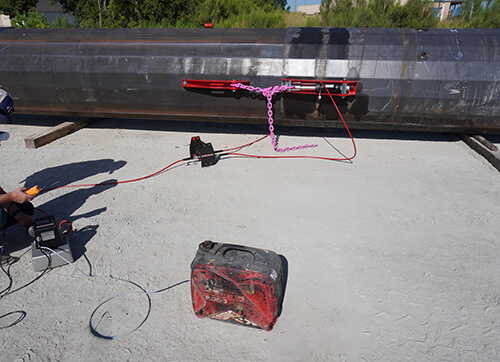

| DPP-20E | 115V Electric Power Unit |  | SPES4505NCL-115V |
| DPP-20G | Gasoline Power Unit |  | PPM-2014 |
All Standard Inclusions shown above are included in each Kit
All Power Units are supplied with Male Snap Couplings
