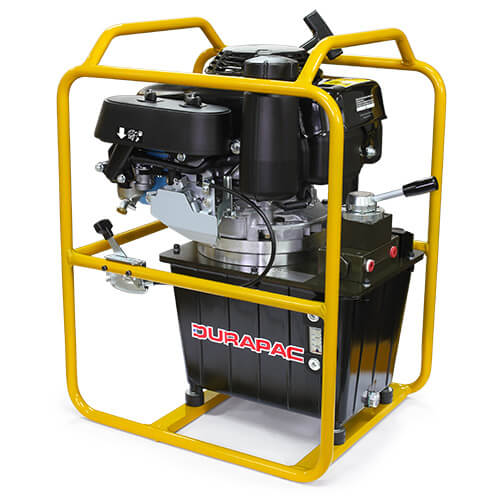

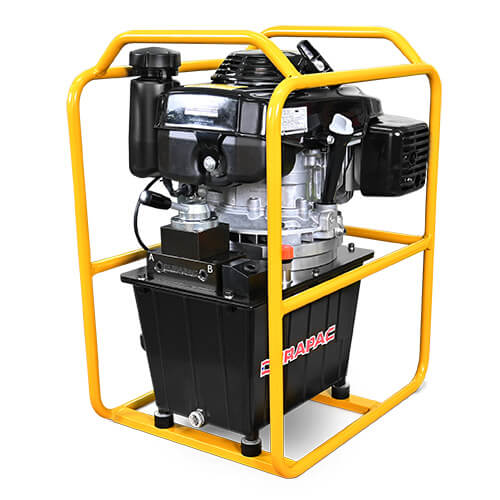

PPM2014 – Petrol Hydraulic Power Unit

The PPM2014 Petrol, Hydraulic Power Unit features a powerful 4 stroke Honda engine. A protection cage makes it easier to handle and provides protection on construction sites. With a 10 litre aluminium reservoir it may be used with a wide range of equipment.

PPM2014

PPM2014

Perfect Power

Powered by a Honda GXV 2.6 kW 4 stroke petrol engine.

10 L Aluminium Reservoir

The power unit has an aluminium 10 litre oil reservoir.

Rugged

The power unit is surrounded by a rugged tubular protection cage.

4 Way / 3 Position

The power unit has a 4 way, 3 position manual directional valve with internal check valve.

Fast Oil Flow

Fast 4.5 Lpm first stage (70 bar) oil flow and 1.8 Lpm oil flow at 700 bar.

Optional Pressure Gauge

Easy to read, large 100mm diameter glycerine filled pressure gauge (optional).

PPM2014

Model No.	Motor Type/Brand	Hydraulic Pressure (bar)	Hydraulic Reservoir Capacity (L)	Motor Fuel	Motor Power (kW/RPM)	Dimensions Outside Frame (mm) LxWxH	Weight incl. oil & frame (kg)
PPM2014	4-Stroke / Honda	700	10.0	Petrol	2.6 / 3,000	470x372x630	47
