The HPS-Series Hydraulic 1/4" & 3/8" Hoses are a high pressure thermoplastic hose that exceeds the American Jacking Specifications IJ100 for use in applications to 700 bar.

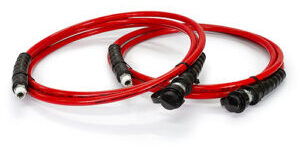

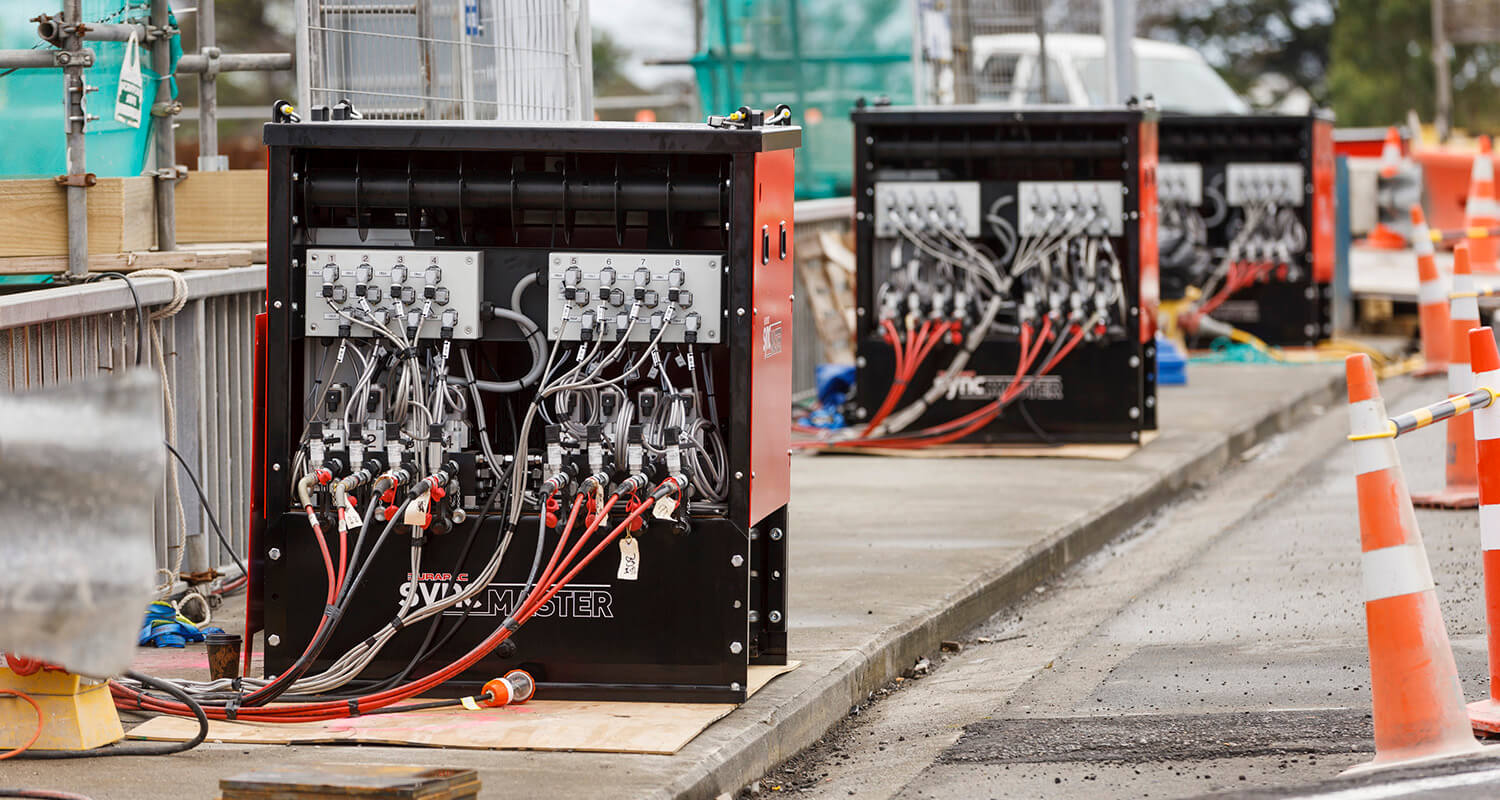

The hose is made up by an inner tube that is polyester elastomer and is reinforced by braids of aramid fibre plus one braid of steel wire covered with polyurethane (anti abrasive) outer. The hose is lightweight and flexible with a tight bend radius for use on hose reels and in tight situations. 1/4" sizes are available in Red, Black and Twin (1 x Red / 1 x Black) for double acting hydraulic applications. All hoses are complete with crimp on fittings and bend restrictors. Models complete with hydraulic couplings are available (see table below for details).
When using long hose lengths, it may be necessary to refill the pump reservoir to allow for the oil that has filled the hose. Allow the following volumes per M of hose length; HPS-06: 34.21 cc/m or HPS-10: 75.43 cc/m.
HOSE SPECIFICATIONS
| Model No. | Hose Size (inch) | Internal Dia. (mm) | Outside Dia. (mm) | Working Pressure (bar) | Working Pressure (psi) | Min. Burst Pressure (bar) | Min. Burst Pressure (psi) | Safety Factor Ratio | Temp. Range (min.) | Temp. Range (max.) | Bend Radius (mm) | Weight (g/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPS-06 | 1/4 | 6.6 | 12.7 | 700 | 10,000 | 2,800 | 40,000 | 4:1 | -40 °C | +100 °C | 35 | 180 |
| HPS-10 | 3/8 | 9.8 | 18.7 | 700 | 10,000 | 2,800 | 40,000 | 4:1 | -40 °C | +100 °C | 90 | 330 |

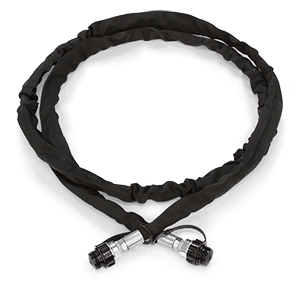

Durapac hose burst sleeves are a very dense (but not bulky) hose cover. They are highly resistant to abrasion and have a high degree of burst resistance in case of a hydraulic hose failure. MSHA number IC-359/01 certified for flame-resistant solid products taken into mines.
The sleeve is available in two sizes, 27 mm and 31 mm inside diameter and optionally available for any Durapac hose up to 30 meters long.
Durapac Hose Burst Sleeve is sold separately.
DURAPAC 1/4" BORE HOSES ARE IDEAL FOR MOST JACKING AND HYDRAULIC TOOL APPLICATIONS
| HPS Model No. | Bore Size | Lengths | End Types |
|---|---|---|---|
| HPS-0601A | 1/4" | 1 M | 1/4"-NPT - Male thread both ends |
| HPS-0602A | 1/4" | 2 M | 1/4"-NPT - Male thread both ends |
| HPS-0603A | 1/4" | 3 M | 1/4"-NPT - Male thread both ends |
| HPS-0604A | 1/4" | 4 M | 1/4"-NPT - Male thread both ends |
| HPS-0606A | 1/4" | 6 M | 1/4"-NPT - Male thread both ends |
| HPS-0610A | 1/4" | 10 M | 1/4"-NPT - Male thread both ends |
| HPS-0615A | 1/4" | 15 M | 1/4"-NPT - Male thread both ends |
| HPS-0620A | 1/4" | 20 M | 1/4"-NPT - Male thread both ends |
| HPS-0625A | 1/4" | 25 M | 1/4"-NPT - Male thread both ends |
| HPS-0630A | 1/4" | 30 M | 1/4"-NPT - Male thread both ends |
| HPS-0601B | 1/4" | 1 M | 3/8"-NPT - Male thread both ends |
| HPS-0602B | 1/4" | 2 M | 3/8"-NPT - Male thread both ends |
| HPS-0603B | 1/4" | 3 M | 3/8"-NPT - Male thread both ends |
| HPS-0604B | 1/4" | 4 M | 3/8"-NPT - Male thread both ends |
| HPS-0606B | 1/4" | 6 M | 3/8"-NPT - Male thread both ends |
| HPS-0610B | 1/4" | 10 M | 3/8"-NPT - Male thread both ends |
| HPS-0615B | 1/4" | 15 M | 3/8"-NPT - Male thread both ends |
| HPS-0620B | 1/4" | 20 M | 3/8"-NPT - Male thread both ends |
| HPS-0625B | 1/4" | 25 M | 3/8"-NPT - Male thread both ends |
| HPS-0630B | 1/4" | 30 M | 3/8"-NPT - Male thread both ends |
| HPS-0601C | 1/4" | 1 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male thread |
| HPS-0602C | 1/4" | 2 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male thread |
| HPS-0603C | 1/4" | 3 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male thread |
| HPS-0604C | 1/4" | 4 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male thread |
| HPS-0606C | 1/4" | 6 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male thread |
| HPS-0610C | 1/4" | 10 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male thread |
| HPS-0615C | 1/4" | 15 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male thread |
| HPS-0620C | 1/4" | 20 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male thread |
| HPS-0625C | 1/4" | 25 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male thread |
| HPS-0630C | 1/4" | 30 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male thread |
| HPS-0601D | 1/4" | 1 M | CH-6 Male coupling on both ends |
| HPS-0602D | 1/4" | 2 M | CH-6 Male coupling on both ends |
| HPS-0603D | 1/4" | 3 M | CH-6 Male coupling on both ends |
| HPS-0604D | 1/4" | 4 M | CH-6 Male coupling on both ends |
| HPS-0606D | 1/4" | 6 M | CH-6 Male coupling on both ends |
| HPS-0610D | 1/4" | 10 M | CH-6 Male coupling on both ends |
| HPS-0615D | 1/4" | 15 M | CH-6 Male coupling on both ends |
| HPS-0620D | 1/4" | 20 M | CH-6 Male coupling on both ends |
| HPS-0625D | 1/4" | 25 M | CH-6 Male coupling on both ends |
| HPS-0630D | 1/4" | 30 M | CH-6 Male coupling on both ends |
R = Red
B = Black
T = Twin (Red & Black) Fused
To order optional Hose Burst Sleeve, add suffix "S" to hose model number, eg. "HPS-0606ARS", "HPS-0603BBS", or "HPS-0602CTS"
DURAPAC 3/8" BORE HOSES ARE IDEAL WHEN HIGHER FLOWS AND LOWER BACK PRESSURES ARE REQUIRED
| HPS Model No. | Bore Size | Lengths | End Types |
|---|---|---|---|
| HPS-1001BB | 3/8" | 1 M | 3/8"-NPT Male thread |
| HPS-1002BB | 3/8" | 2 M | 3/8"-NPT Male thread |
| HPS-1003BB | 3/8" | 3 M | 3/8"-NPT Male thread |
| HPS-1004BB | 3/8" | 4 M | 3/8"-NPT Male thread |
| HPS-1006BB | 3/8" | 6 M | 3/8"-NPT Male thread |
| HPS-1010BB | 3/8" | 10 M | 3/8"-NPT Male thread |
| HPS-1015BB | 3/8" | 15 M | 3/8"-NPT Male thread |
| HPS-1020BB | 3/8" | 20 M | 3/8"-NPT Male thread |
| HPS-1025BB | 3/8" | 25 M | 3/8"-NPT Male thread |
| HPS-1030BB | 3/8" | 30 M | 3/8"-NPT Male thread |
| HPS-1001CB | 3/8" | 1 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male |
| HPS-1002CB | 3/8" | 2 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male |
| HPS-1003CB | 3/8" | 3 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male |
| HPS-1004CB | 3/8" | 4 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male |
| HPS-1006CB | 3/8" | 6 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male |
| HPS-1010CB | 3/8" | 10 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male |
| HPS-1015CB | 3/8" | 15 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male |
| HPS-1020CB | 3/8" | 20 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male |
| HPS-1025CB | 3/8" | 25 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male |
| HPS-1030CB | 3/8" | 30 M | CH-6 Male coupling on one end and other end 3/8"-NPT Male |
| HPS-1001DB | 3/8" | 1 M | CH-6 Male coupling on both ends |
| HPS-1002DB | 3/8" | 2 M | CH-6 Male coupling on both ends |
| HPS-1003DB | 3/8" | 3 M | CH-6 Male coupling on both ends |
| HPS-1004DB | 3/8" | 4 M | CH-6 Male coupling on both ends |
| HPS-1006DB | 3/8" | 6 M | CH-6 Male coupling on both ends |
| HPS-1010DB | 3/8" | 10 M | CH-6 Male coupling on both ends |
| HPS-1015DB | 3/8" | 15 M | CH-6 Male coupling on both ends |
| HPS-1020DB | 3/8" | 20 M | CH-6 Male coupling on both ends |
| HPS-1025DB | 3/8" | 25 M | CH-6 Male coupling on both ends |
| HPS-1030DB | 3/8" | 30 M | CH-6 Male coupling on both ends |
To order optional Hose Burst Sleeve, add suffix "S" to hose model number, eg. "HPS-1001BBS" or "HPS-1025DBS"
