AC-Series S/A, Aluminium

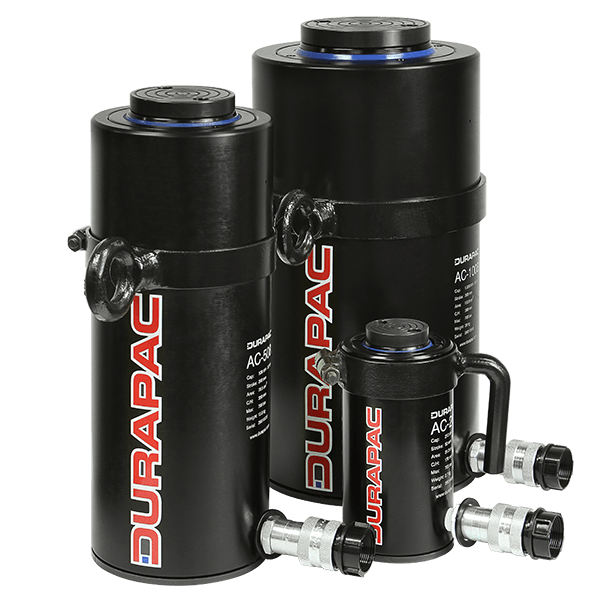

The AC-Series is a Single Acting, Lightweight, High Strength, Aluminium, Spring Return Cylinder. Ideal for use in applications where weight and portability are paramount. They can be used in applications such as axle correction, bridge jacking, machinery maintenance and other non-production applications.

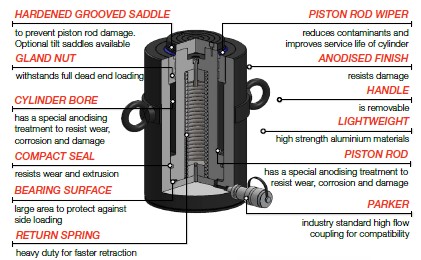

Special Anodising Treatment

A special anodising treatment on the piston rod, cylinder bore and body resists damage and extends cylinder life.

Hardened Grooved Saddle

The hardened grooved saddle prevents piston rod damage. Optional tilt saddles are also available.

Handle

The handle is removable.

Return Spring

A heavy duty return spring allows faster retraction.

Lightweight

Lightweight, high strength aluminium materials.

Gland Nut

Gland nut withstands full dead end loading.

INSTRUCTIONS

SPECIFICATIONS

CATALOGUE

Model Number	Cylinder Capacity ton*	Cylinder Capacity kN	Stroke (mm)	Cylinder Effective Area (cm²)	Oil Capacity (cm³)	Collapsed Height (mm)	Extended Height (mm)	Outside Diameter (mm)	Cylinder Bore Diameter (mm)	Piston Rod Diameter (mm)	Base to Advance Port (mm)	Standard Load Cap Diameter (mm)	Load Cap Protrusion from Piston Rod (mm)	Optional Tilt Saddle Model Number	Optional Tilt Saddle Diameter (mm)	Optional Tilt Saddle Height** (mm)	Weight (kg)

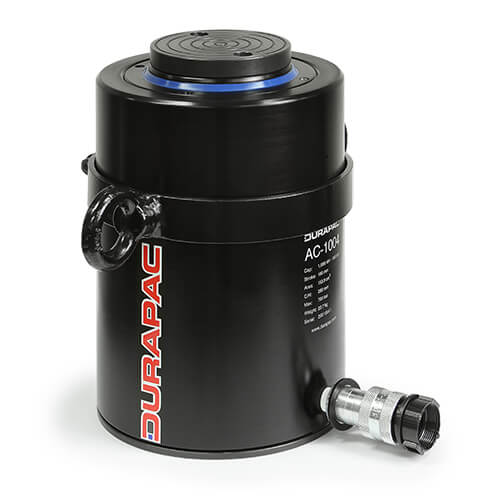

AC-202	20	213	50	31.2	156	170	220	85	63	50	25	48	12	TSAC-20	48	25	2.7
AC-204	20	213	100	31.2	312	220	320	85	63	50	25	48	12	TSAC-20	48	25	3.4
AC-206	20	213	150	31.2	468	270	420	85	63	50	25	48	12	TSAC-20	48	25	4.0
AC-302	30	303	50	44.2	221	180	230	100	75	60	25	58	14	TSAC-30	55	27	4.0
AC-304	30	303	100	44.2	442	230	330	100	75	60	25	58	14	TSAC-30	55	27	4.9
AC-306	30	303	150	44.2	663	280	430	100	75	60	25	58	14	TSAC-30	55	27	5.8

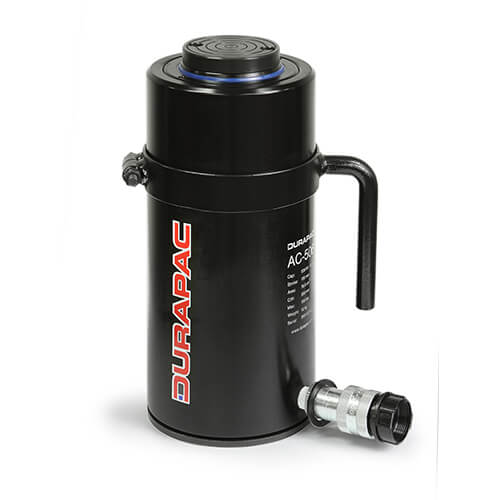

AC-502	50	539	50	78.5	393	200	250	135	100	80	25	78	17	TSAC-50	74	27	8.5
AC-504	50	539	100	78.5	785	250	350	135	100	80	25	78	17	TSAC-50	74	27	10.0
AC-506	50	539	150	78.5	1,178	300	450	135	100	80	25	78	17	TSAC-50	74	27	11.5
AC-508	50	539	200	78.5	1,571	350	550	135	100	80	25	78	17	TSAC-50	74	27	13.0
AC-5010	50	539	250	78.5	1,964	400	650	135	100	80	25	78	17	TSAC-50	74	27	14.5
AC-754	75	776	100	113.1	1,131	260	365	165	120	95	35	98	19	TSAC-75	98	34	14.0
AC-756	75	776	150	113.1	1,697	310	465	165	120	95	35	98	19	TSAC-75	98	34	16.0
AC-758	75	776	200	113.1	2,262	360	565	165	120	95	35	98	19	TSAC-75	98	34	18.0
AC-7510	75	776	250	113.1	2,828	410	665	165	120	95	35	98	19	TSAC-75	98	34	20.0
AC-1004	100	1,056	100	153.9	1,539	280	380	190	140	110	35	108	20	TSAC-100	103	34	21.5
AC-1006	100	1,056	150	153.9	2,309	330	480	190	140	110	35	108	20	TSAC-100	103	34	24.5
AC-1008	100	1,056	200	153.9	3,079	380	580	190	140	110	35	108	20	TSAC-100	103	34	27.5
AC-10010	100	1,056	250	153.9	3,848	430	680	190	140	110	35	108	20	TSAC-100	103	34	31.0
AC-1504	150	1,558	100	227.0	2,270	300	400	230	170	140	40	138	20	TSAC-150	133	40	35.5
AC-1506	150	1,558	150	227.0	3,405	350	500	230	170	140	40	138	20	TSAC-150	133	40	40.5
AC-1508	150	1,558	200	227.0	4,540	400	600	230	170	140	40	138	20	TSAC-150	133	40	45.5
AC-15010	150	1,558	250	227.0	5,675	450	700	230	170	140	40	138	20	TSAC-150	133	40	50.5

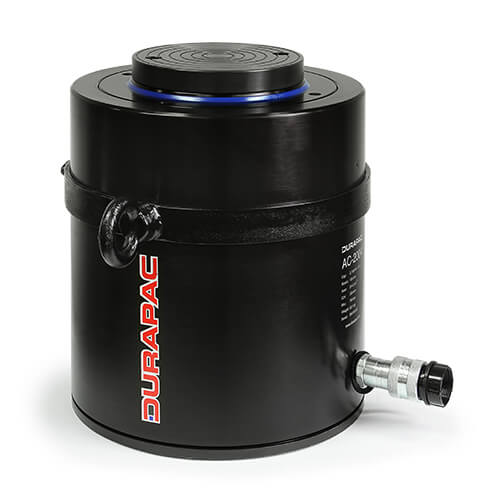

AC-2004	200	2,156	100	314.2	3,142	320	420	270	200	160	45	158	26	TSAC-200	150	45	50.5
AC-2006	200	2,156	150	314.2	4,712	370	520	270	200	160	45	158	26	TSAC-200	150	45	56.5

* Nominal Cylinder Capacity in ton - see kN values for actual capacity
** Total cylinder collapsed height with optional tilt saddle equals (Cylinder Height - Load Cap Protrusion + Tilt Saddle Height)

AC-Series Seal Kits

Seal Kit to Suit	Part Number
AC 20 TON SERIES	ZAA1048
AC 30 TON SERIES	ZAA1049
AC 50 TON SERIES	ZAA1050
AC 75 TON SERIES	ZAA1073
AC 100 TON SERIES	ZAA1051
AC 150 TON SERIES	ZAA1052
AC 200 TON SERIES	ZAA1053

AC-Series S/A, Aluminium

Special Anodising Treatment

A special anodising treatment on the piston rod, cylinder bore and body resists damage and extends cylinder life.

Hardened Grooved Saddle

The hardened grooved saddle prevents piston rod damage. Optional tilt saddles are also available.

Handle

The handle is removable.

Return Spring

A heavy duty return spring allows faster retraction.

Lightweight

Lightweight, high strength aluminium materials.

Gland Nut

Gland nut withstands full dead end loading.

AC-Series Seal Kits
