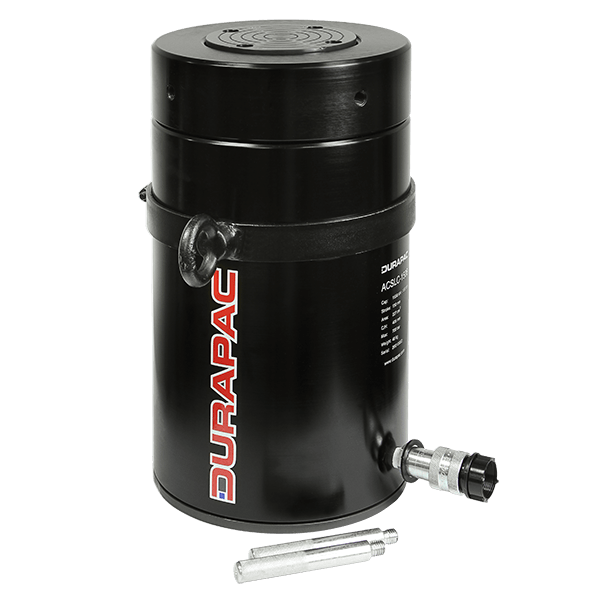

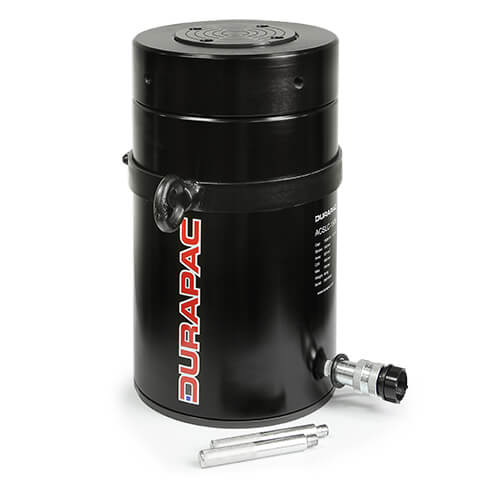

ACSLC-Series S/A, Locking Collar, Aluminium

The ACSLC-Series is a Single Acting, Spring Return, Locking Collar, Aluminium Cylinder that is ideal for use in applications where weight and portability are paramount. The design features a threaded piston rod and lock ring. When the lock ring is screwed down and engaged with the cylinder body, the load can be held mechanically for extended periods. These cylinders are ideally suited to applications requiring safe extended load holding.

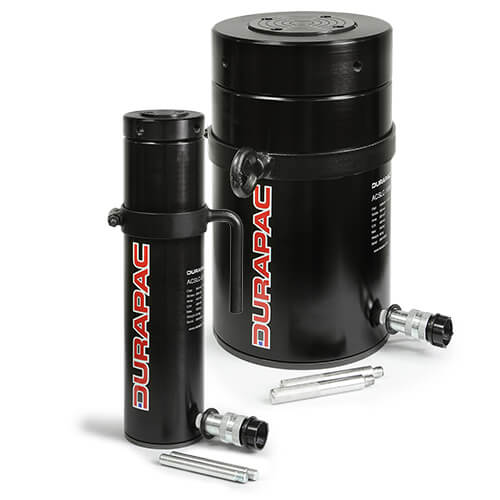

ACSLC

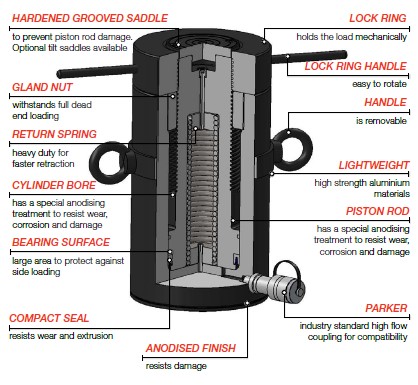

ACSLC Cross Section

ACSLC

Anodised Finish

All ACSLC-Series cylinders feature anodised treatment on the piston rod which enhances appearance and reduces corrosion.

Lock Ring

The lock ring holds the load mechanically. The load can be held mechanically for extended periods.

Hardened Grooved Saddle

Hardened saddles prevent piston rod damage. Optional tilt saddles are also available.

Gland Nut

The gland nut withstands full dead end loading.

Lightweight

Lightweight, high strength, aluminium materials.

Handle

The handle is removable.

ACSLC

Model Number	Cylinder Capacity ton*	Cylinder Capacity kN	Stroke (mm)	Cylinder Effective Area (cm²)	Oil Capacity (cm³)	Collapsed Height (mm)	Extended Height (mm)	Outside Diameter (mm)	Cylinder Bore Diameter (mm)	Piston Rod Diameter (mm)	Base to Advance Port (mm)	Saddle Diameter (mm)	Saddle Protrusion from Piston Rod (mm)	Optional Tilt Saddle Model Number	Optional Tilt Saddle Diameter (mm)	Optional Tilt Saddle Height** (mm)	Weight (kg)
ACSLC-306	30	303	150	44.2	663	300	450	100	75	60	25	55	3	TSAC-30	55	27	6.8
ACSLC-506	50	539	150	78.5	1178	335	485	135	100	80	25	75	3	TSAC-50	74	27	13.5
ACSLC-1006	100	1056	150	153.9	2309	375	525	190	140	110	35	103	3	TSAC-100	103	34	30
ACSLC-1506	150	1558	150	227	3405	405	555	230	170	140	40	133	3	TSAC-150	133	40	48
ACSLC-2006	200	2156	150	314.2	4712	430	580	270	200	160	45	152	3	TSAC-200	150	45	69

* Nominal Cylinder Capacity in ton - see kN values for actual capacity
** Total cylinder collapsed height with optional tilt saddle equals (Cylinder Height - Saddle Protrusion + Tilt Saddle Height)

ACSLC-Series Seal Kits

Seal Kit to Suit	Part Number
ACSLC 30 TON SERIES	ZAA1067
ACSLC 50 TON SERIES	ZAA1068
ACSLC 100 TON SERIES	ZAA1069
ACSLC 150 TON SERIES	ZAA1070
ACSLC 200 TON SERIES	ZAA1071
