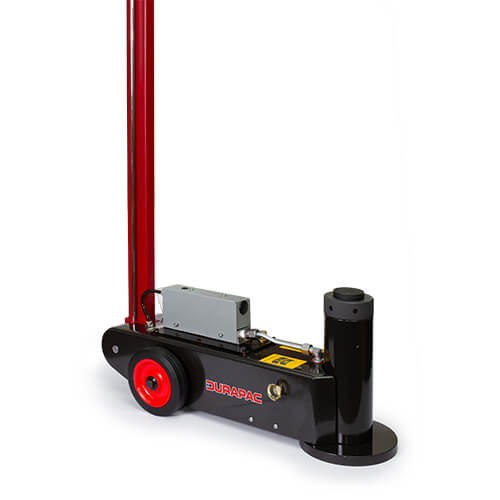

ALJ30-1-150LC – Locking Collar

The ALJ30-1-150LC is a mechanically load holding, air driven hydraulic jack. Once the lock ring is screwed down and engaged with the cylinder body, the load can be mechanically held for extended periods.

ALJ30-1-150LC 600x600 1

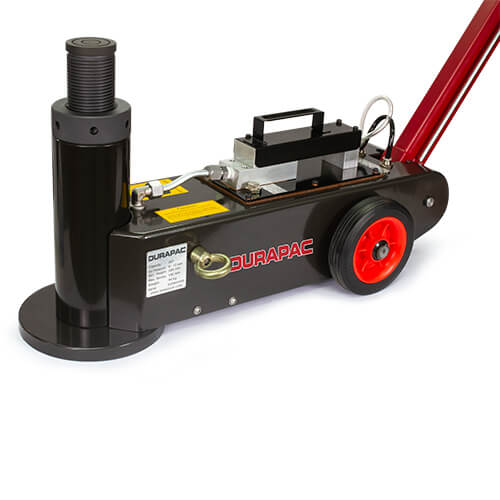

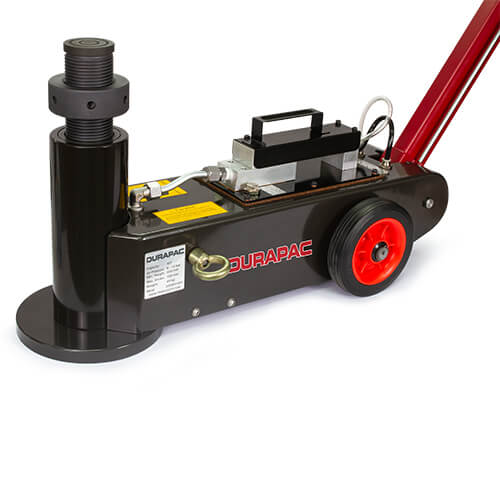

Locking Collar

The locking collar allows the jack to be mechanically held for extended periods.

Controlled Lowering

Automatic control of lowering speed for safety. The jack cannot be accidentally lowered when airline has been disconnected.

Hard Chrome Plated

Hardened chrome plated single acting hydraulic cylinder provides maximum corrosion-resistance and has a special coating on the piston rod and lock ring to resist corrosion and abrasion.

Replacement Spares

Replacement spares are readily available.

Optional Accessories

Extension load caps can be used to increase height and versatility. Other (optional) Locking Collar Accessories include tilt and grooved load cap as well as U-ring collars to assist in mechanical locking.

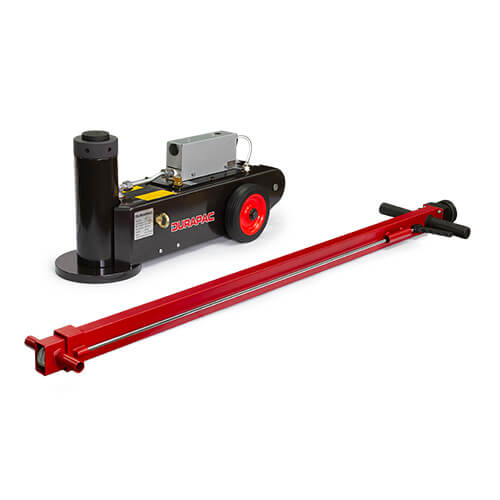

Removable 3 Position Locked Handle

The handle can be locked in 3 positions and is removable, making transporting and storage easy.
ALJ30-1-150LC 600x600
SPECIFICATIONS
CATALOGUE
Model No. Handle Height (mm)Length (mm) Collapsed Height (mm) Capacity (ton) Stroke (mm) Body Width (mm)Width at Wheels (mm)Weight (kg)
ALJ30-1-150LC1,4767013203015017228349
