6 M Remote
A 6 M remote hand pendant incorporates motor ON/OFF button and
ADV/AUTO RETRACT button.
Multiple Tool Outlets
One or two tools can be operated at one time due to the multi outlet pump block.
Roll Cage
The roll cage allows portability
and provides protection.
2.7 kW Power
Features a 2.7 kW Ingersoll Rand® air motor.
Liquid Filled Pressure Gauge
The liquid filled pressure gauge has 1% accuracy and can be recalibrated. The scale is mpa/psi.
Oil Cooler
Oil is continuously cooled during operation.

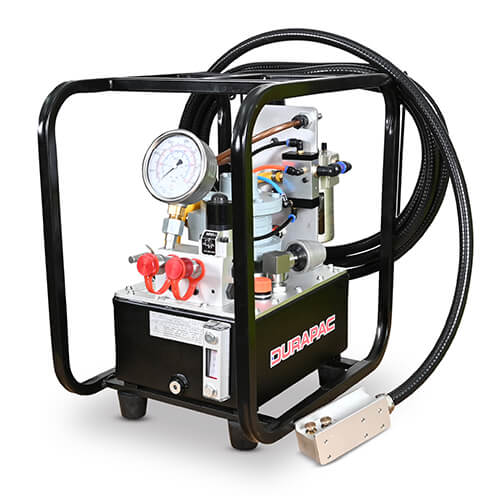

| Model No. | Pressure Rating (bar) | Motor | Flow (Lpm) 1st Stage 0-100 bar | Flow (Lpm) 2nd Stage 100-250 bar | Flow (Lpm) 3rd Stage 250-700 bar | Oil Capacity (L) | Dry Weight (kg) |
|---|---|---|---|---|---|---|---|
| DAT-1114 | 700 | 2.7 kW Air | 7.0 | 1.6 | 0.8 | 7.0 | 31.6 |
Torque Wrench Hoses
| Model No. | Length (m) |
|---|---|
| TWH-04 | 4 |
| TWH-06 | 6 |
| TWH-10 | 10 |
| TWH-15 | 15 |
Twin hose set to suit torque wrenches complete with male and female screw couplers at both ends
700 bar working pressure. 2,800 bar min. burst
Hose burst sleeve available. Consult Durapac for further information
Torque Wrench Couplings
| Model No. | Image | Thread | Description | Suits Tool Model No. |
|---|---|---|---|---|
| CH-2 |  | 1/8"-NPT Male | Male half screw coupling complete with metal dust cap | TW07, TW1 , LPC2 |
| CR-2 |  | 1/8"-NPT Male | Female half screw coupling complete with metal dust cap | TW07, TW1 , LPC2 |
| CS-2 |  | 1/8"-NPT Male | Coupling set with metal dust caps includes CH-2 and CR-2 | TW07, TW1 , LPC2 |
| CH-4 |  | 1/4"-NPT Female | Male half screw coupling complete with metal dust cap | TW3 THROUGH TW50 LPC4 THROUGH LPC30 |
| CR-4 |  | 1/4"-NPT Male | Female half screw coupling complete with metal dust cap | TW3 THROUGH TW50 LPC4 THROUGH LPC30 |
| CS-4 |  | Coupling set with metal dust caps includes CH-4 and CR-4 | TW3 THROUGH TW50 LPC4 THROUGH LPC30 |
