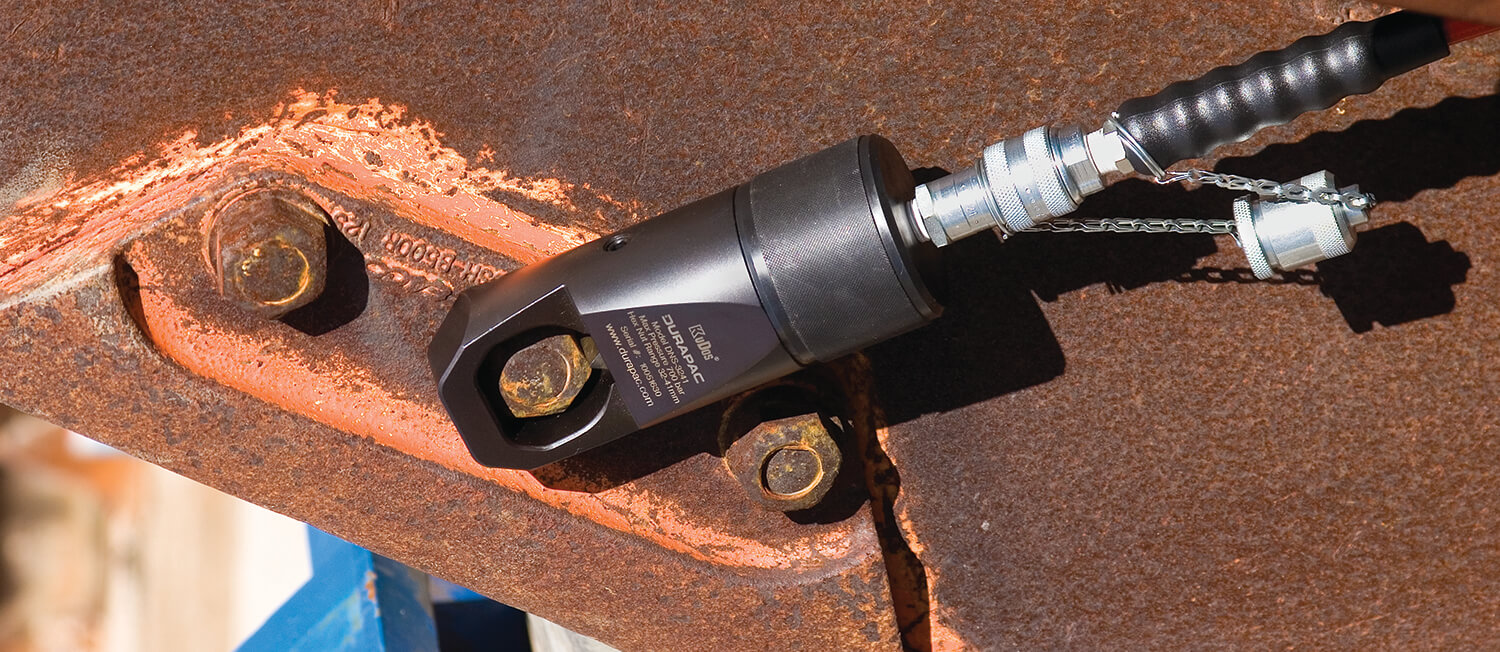

The DNS-Series of Hydraulic Nut Splitters consists of seven models for handling difficult to remove nuts ranging from 10 – 75 mm A/F capacity. They are a proven performer in the railway, pipelines, petro-chemical, heavy vehicles, mining, steel and industrial applications.

Hydraulic-Advance/Spring Return

A single acting hydraulic-advance/spring return cylinder offering between 5 - 90 ton of force.

Lightweight Power

All models can be driven by a 700 bar lightweight single acting hand pump or power unit.

Unique Angled-Head

The unique angled-head design gives clearance to the body when operating on a flat surface.

Compact Design / Big Capabilities

They are a compact design capable of splitting nuts up to hardness HRc 44 and are also suitable for use on Grade 2H high temperature nuts as used in the petrochemical industry.

Spare Chisel Included

Each tool includes a spare blade which is easily replaced.

Heavy Duty Storage Case

Each tool is supplied in a heavy duty moulded plastic storage case except DNS-6075 which comes with a wooden case.
Model No. Bolt RangeHex Nut Range (mm) Capacity (ton) Oil Capacity (cm3) Dim.s (mm) LengthDim.s (mm) Width Dim.s (mm) Height Weight (kg) Spare Blade Model Number
DNS-1319 M6-M12 10-1951317040481.2DNS-1319-4
DNS-1924 M12-M16 19-24 102119154622.0DNS-1924-4
DNS-2432 M16-M22 24-32 155822264723.0DNS-2432-4
DNS-3241 M22-M27 32-41 208824475884.4DNS-3241-4
DNS-4150 M27-M33 41-50 35153288941058.5DNS-4150-4
DNS-5060 M33-M39 50-60 5023331810612811.8DNS-5060-4
DNS-6075 M39-M48 60-75 9049239315618134.1DNS-6075-4
Please view the catalogue page for product dimensions and drawings.
