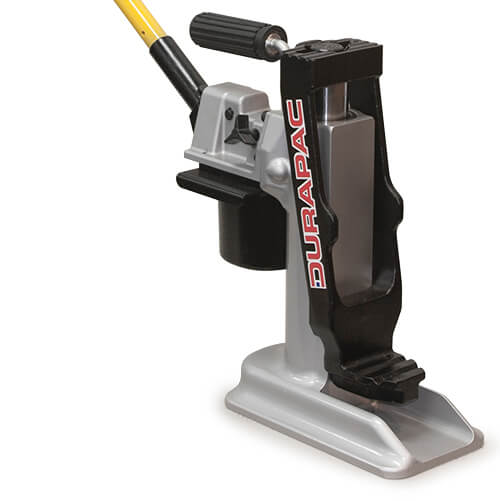

DRJ-10 Rail Jack

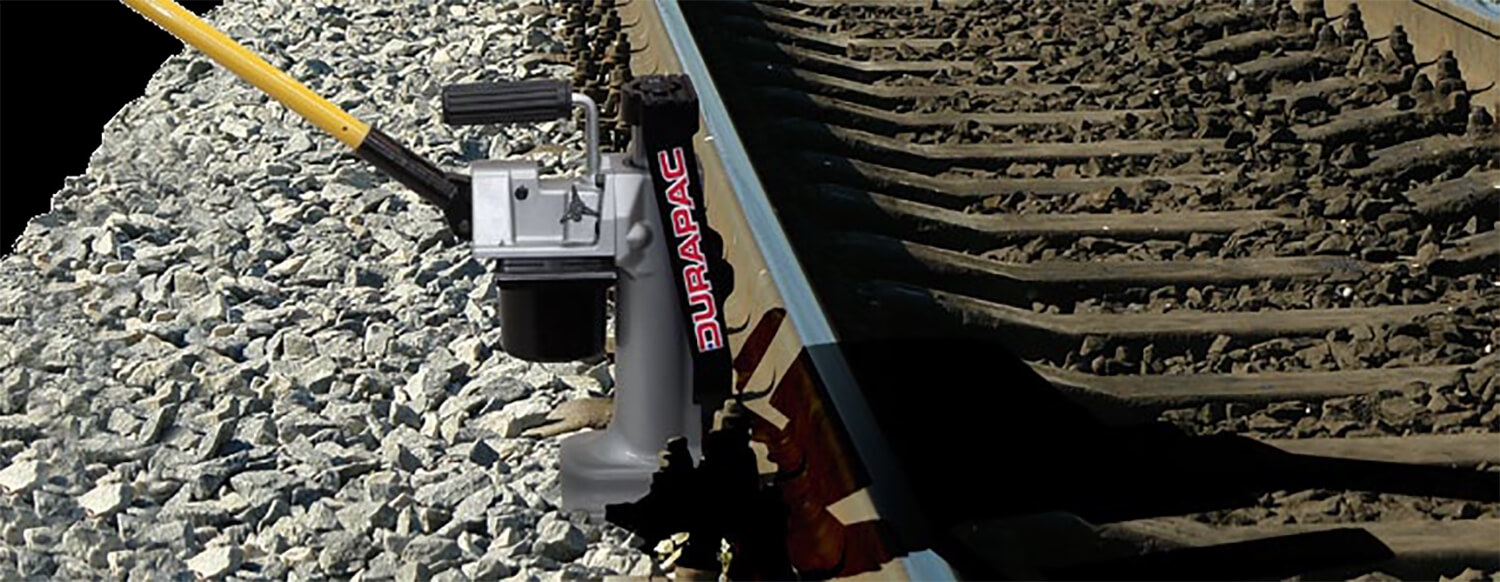

The DRJ-10 Rail Jack is ideally suited to aligning, gauging and lifting rail or sleepers. Utilising a forged aluminium upright base, this 10 ton* capacity jack has been designed to be robust, lightweight and reduce the risk of operator injury.

Internal Spring Return

The spring return mechanism allows a jack with no load to be returned to the retracted position.

Safety Pressure Relief Valve

The jack is fitted with an internal safety pressure relief valve to protect against overloading.

Internal Oil Reservoir Bladder

The bladder system inside the aluminium protected reservoir allows the jack to be used in both the horizontal and vertical positions making it exceptionally versatile.

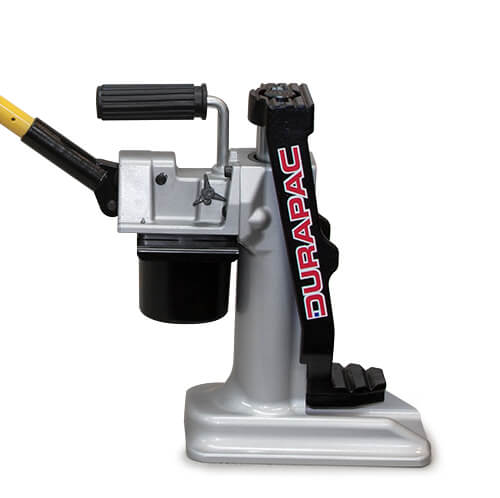

Large Aluminium Base / Minimum Height

One piece of forged aluminium (7075T) base provides great support in soft ballast. The minimum base height of 50mm allows for easy positioning under the base of the rail.

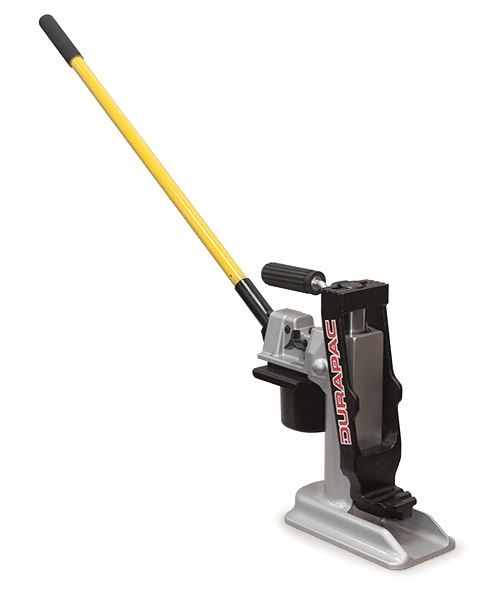

Removable Extension Handle

The 80cm handle is removable. The extension handle can withstand a maximum handle effort of 36kg.

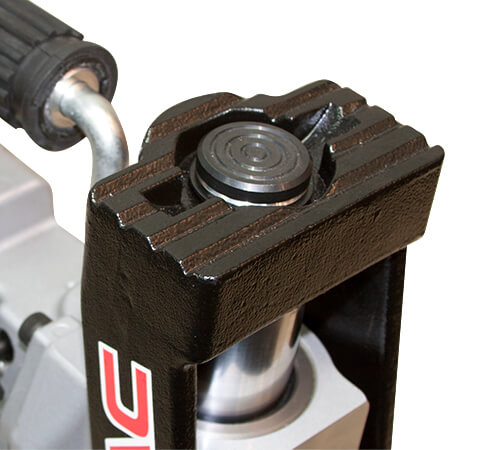

Indexed Toe

The indexed toe minimises swivel and allows for a safe, stable platform.
Model No. Jack Capacity ton*Jack Capacity kN Collapsed Height (mm) Stroke (mm) Extended Height (mm) Travel/Pump Stroke (mm) Max. Handle Effort (kg)L x W x H Base Dimensions (mm) L x W x H Toe Dimensions (mm) Weight without Handle (kg)
DRJ-10 1083.33732255984.536280 x 152 x 50 66 x 79 x 30 20.2
* Nominal Jack Capacity in ton - see kN values for actual capacity
