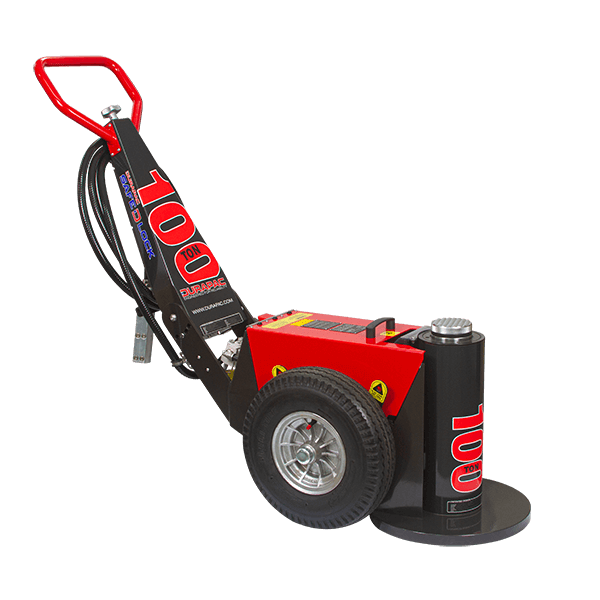

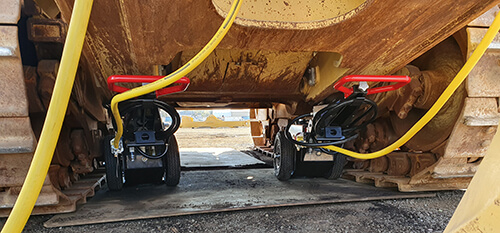

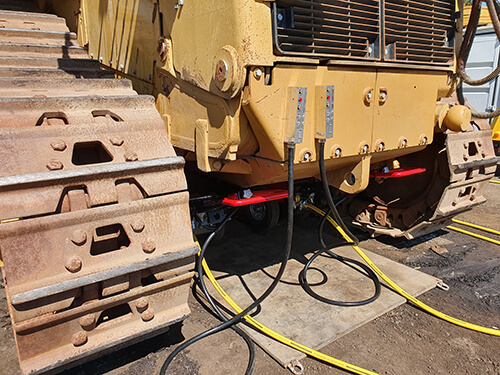

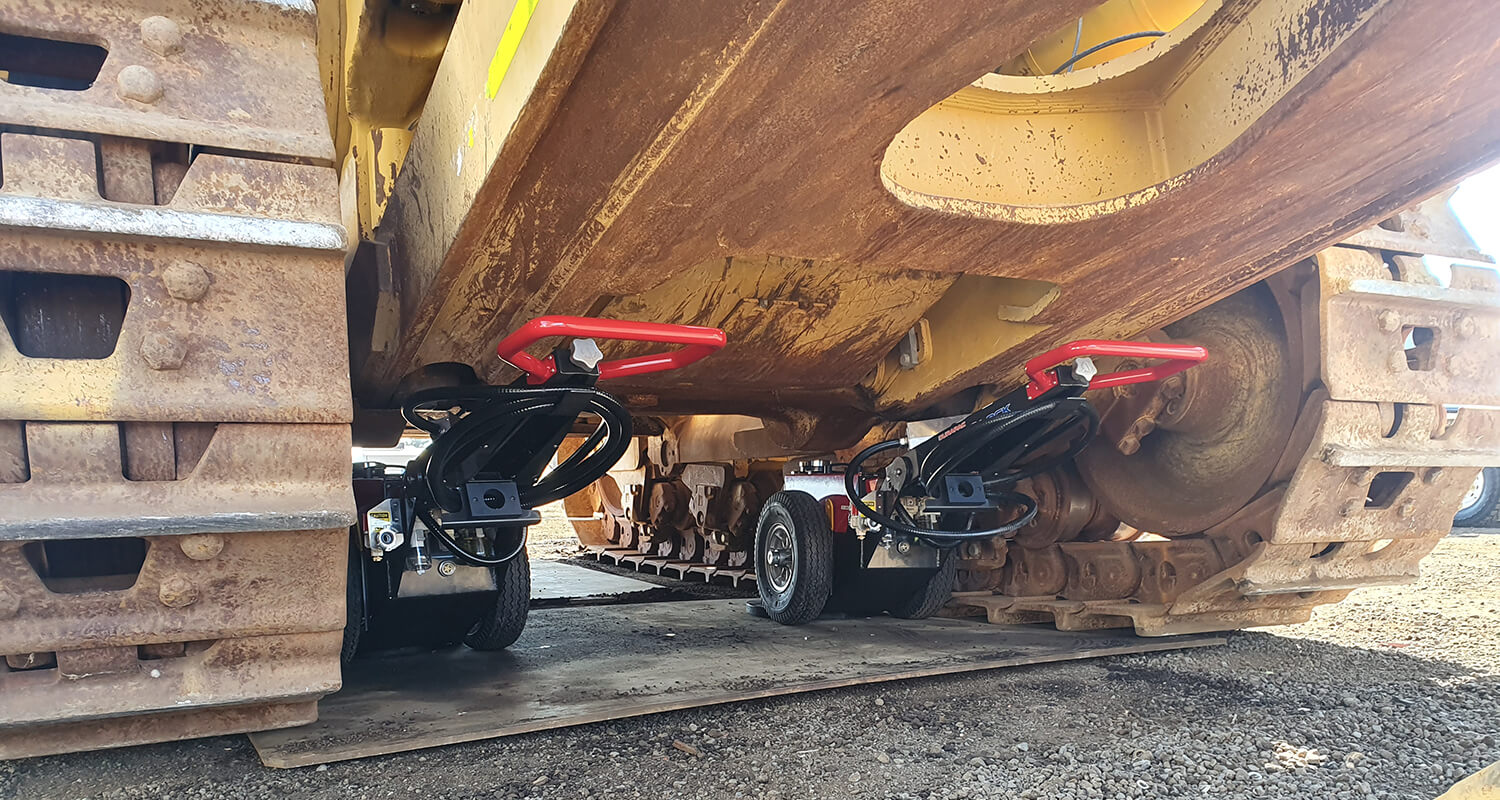

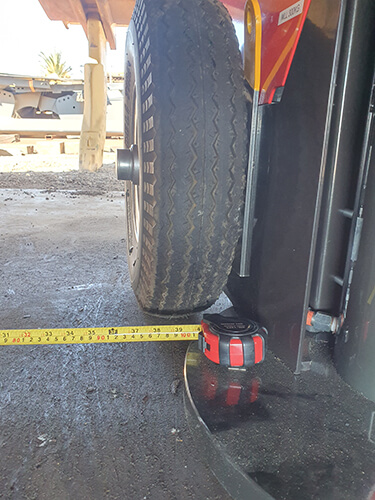

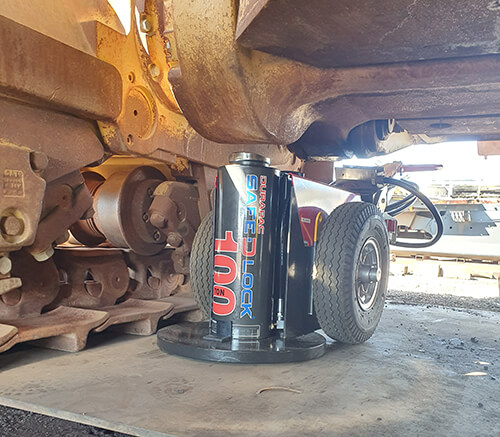

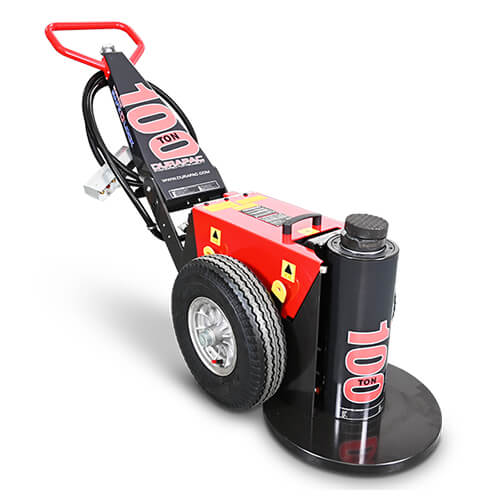

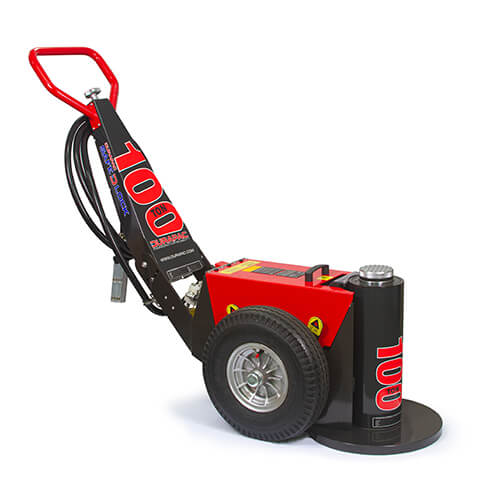

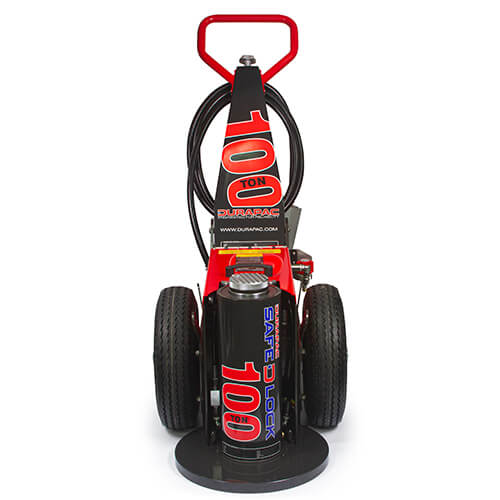

Narrow Width & Extra Compact

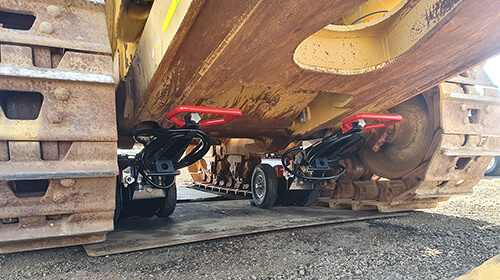

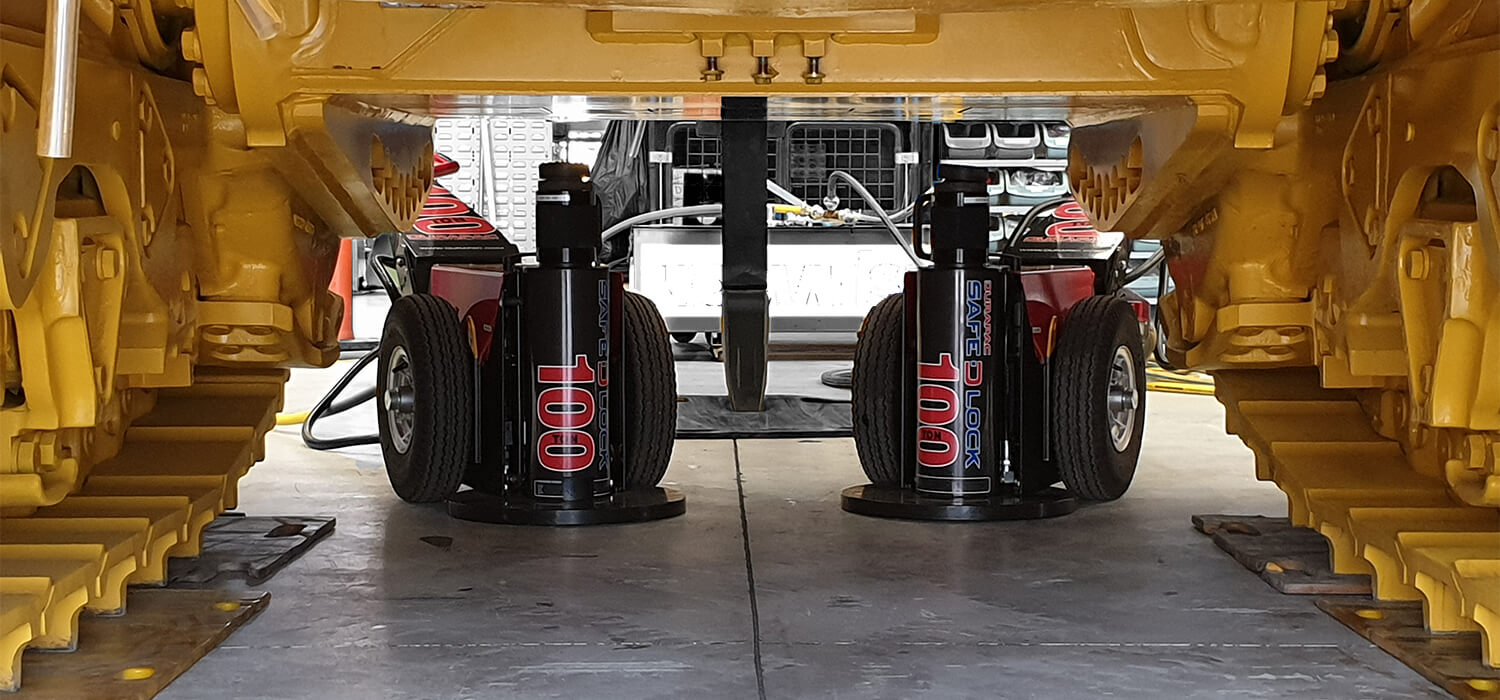

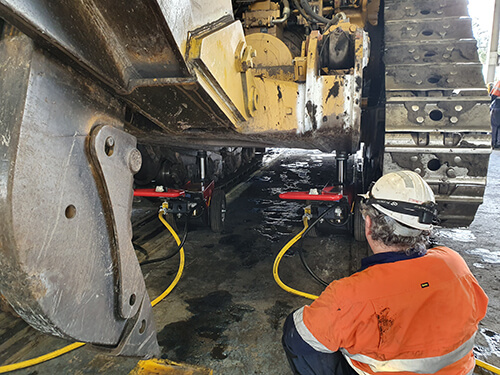

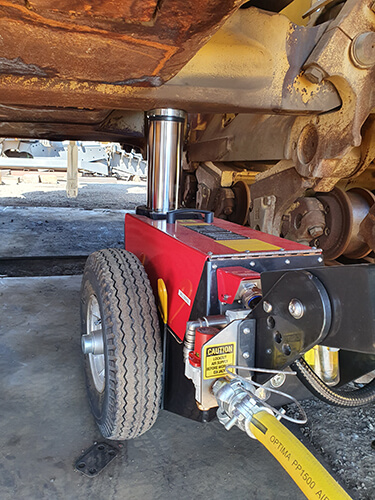

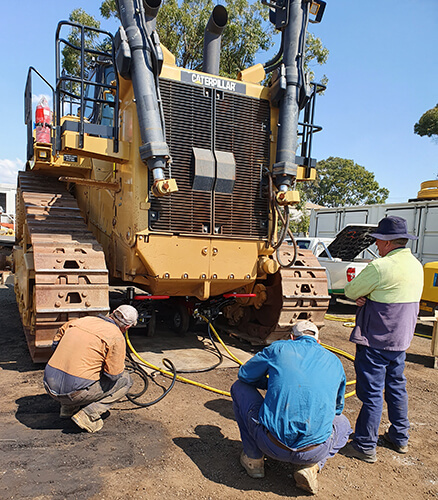

With a width of 620 mm. These jacks were designed to suit a Cat® Dozer or similar low height, narrow width jacking point vehicle. With all the safety features of a standard SDL but in a more compact size.
Serrated Steel Load Cap
A serrated steel load cap is included as standard.

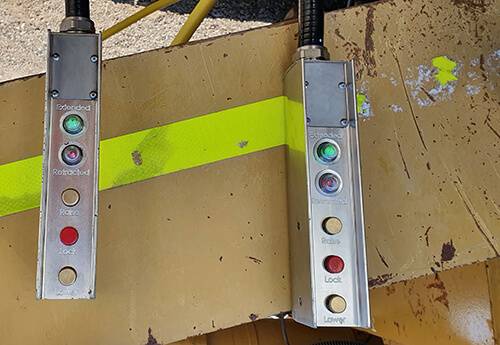

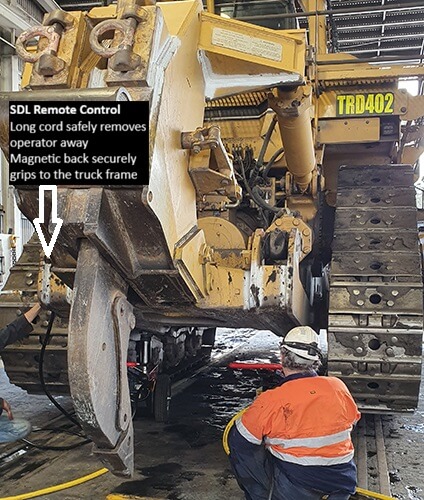

Aluminium Remote Pendant
Lock and unlock remotely. A 5 metre long remote lead allows the operator to be safely away from the lifting area during lifting lowering and locking. A magnetized back allows the Remote Pendant to be attached to the side of the truck or SDL, allowing free hands for other work.
Air Motor
The jack is powered by a 3.9 kW Gast® air motor.
Australian Designed and Built
Australian designed and built to meet AS/NZS 2693:2007 standard for vehicle jacks, it also meets AS/NZS 2538:2004 standard for vehicle support stands.

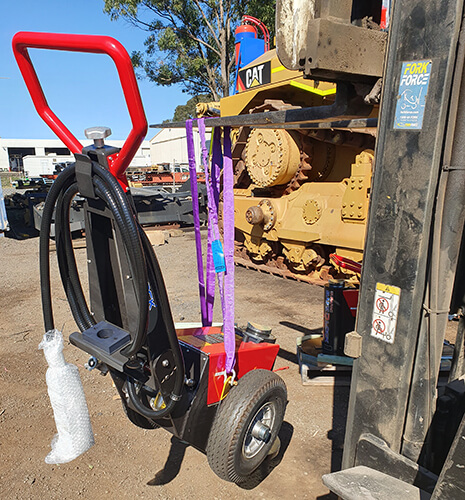

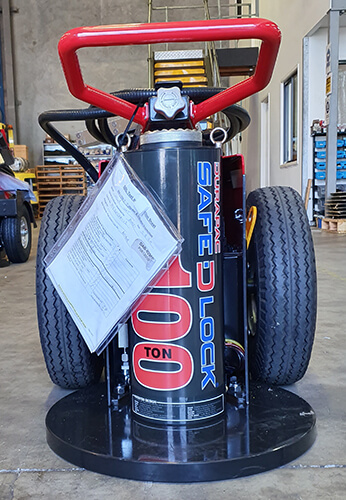

Lifting Eyes
Lifting Eyes allow slinging of the jack.
| Model No. | Jack Capacity Metric (tonne) | Jack Capacity US (ton)* | Jack Capacity (kN) | Cylinder Effective Area (cm2) | Collapsed Height (mm)** | Stroke (mm) | Maximum Lift Height (mm)*** | Oil Tank Capacity (L) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SDL-10055 | 100 | 110 | 980 | 143 | 550 | 274 | 1,250 | 24 | 320 |
** Includes load cap height of 22 mm
*** Maximum lift height for AS/NZS 2538:2004 Vehicle Support Stand Rating
Optional Tilt Saddles & Load Caps
| Model Number | Capacity (tons) | Description | Diameter (mm) | Height (mm) | Spigot Depth (mm) | Spigot Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| SDE100-100 | 70/100 | 100 mm Extension | 126 | 100 | 60 | 50 | 7 |
| SDE100-150 | 70/100 | 150 mm Extension | 126 | 150 | 60 | 50 | 7 |
| SDE100-200 | 70/100 | 200 mm Extension | 126 | 200 | 60 | 50 | 7 |
| SDE100-300 | 70/100 | 300 mm Extension | 126 | 300 | 60 | 50 | 13 |
| SDE100-400 | 70/100 | 400 mm Extension | 126 | 400 | 60 | 50 | 13 |
| SDLC-100 | 70/100 | Serrated Steel Load Cap * | 112 | 22 | 60 | 50 | 3 |
| SDS-100N | 70/100 | Serrated Tilt Saddle | 108 | 50 | 60 | 50 | 5 |
