Heavy Duty H-Frame
The frame is welded for maximum strength and durability and will accept a full off-centre load.
Rolling Head
Allows for off-centre pressing applications.
Electric Bed Winch
For effortless raising and lowering of the press bed.
Maximum Daylight
The press design allows for easy loading and maximum daylight for larger jobs.
Remote Pendant
Operator can control press actions from a safe distance using the remote pendant. 4 M lead for all models except HDP-50, this comes with 2.5 M lead.
Hydraulic Pressure Gauge
The Hydraulic Pressure Gauge allows the operator to control maximum loads. This is a standard inclusion for all models.
| Model No. | Capacity (ton) | Capacity (kN) | Stroke (mm) | Power Unit Model | Used with Cyl. | Cylinder Model | Weight (kg) |
|---|---|---|---|---|---|---|---|

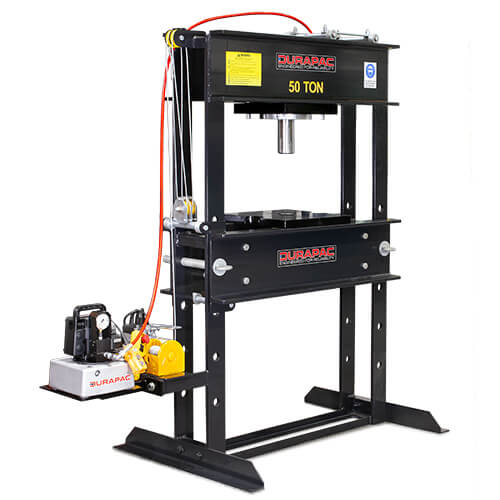

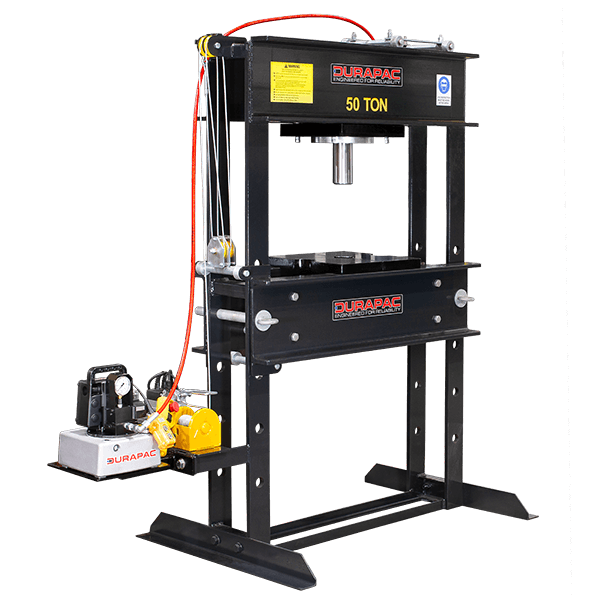

| HDP-50 | 50 | 498 | 334 | SPES4505NCL† | S/A* | RG-5013 | 665 |

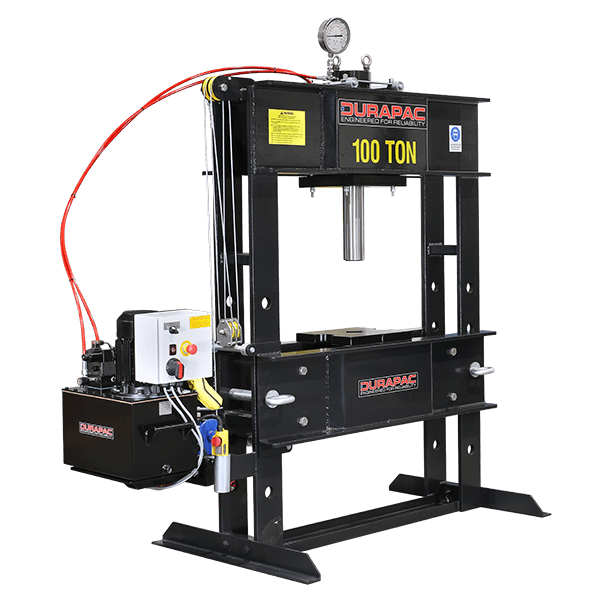

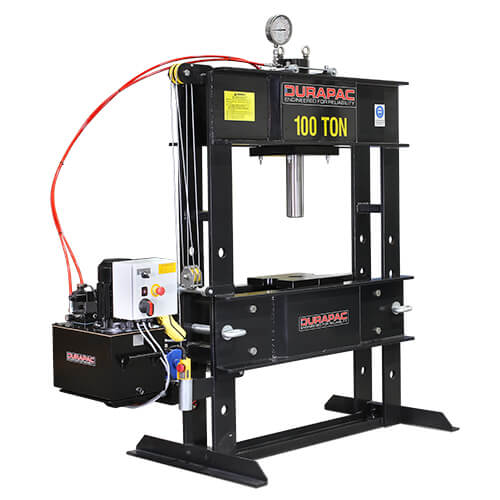

| HDP-100 | 100 | 933 | 333 | PES3024†† | D/A | RD-10013 | 1,180 |
| HDP-150 | 150 | 1,386 | 333 | PES3024†† | D/A | RD-15013 | 2,000 |
| HDP-200 | 200 | 1,995 | 330 | PES3024†† | D/A | RD-20013 | 2,280 |
† Standard motor is 230V, should 115V be required; add suffix “-115V” to the model number, eg. “HDP-50-115V”
†† Standard motor is 400V / 3 Ph. / 50 Hz, should 440 - 480 Volt / 3 Ph. / 60 Hz be required; add suffix “-440V” to the model number, eg. “HDP-150-440V”
