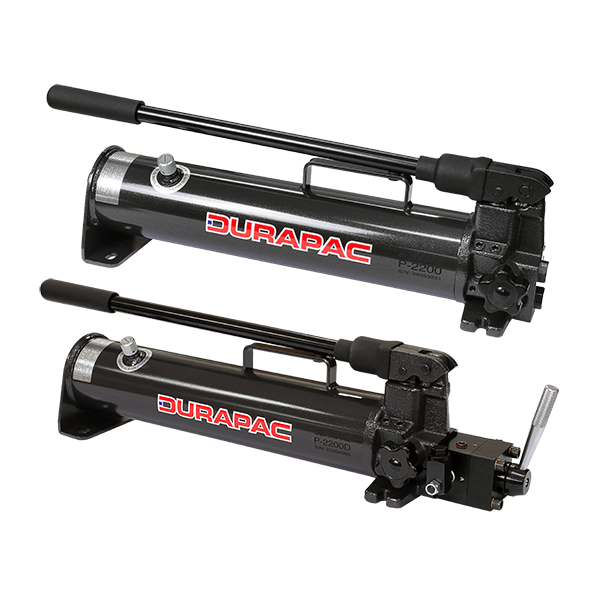

P-2200 & P-2200D Steel Bodied Hand Pumps

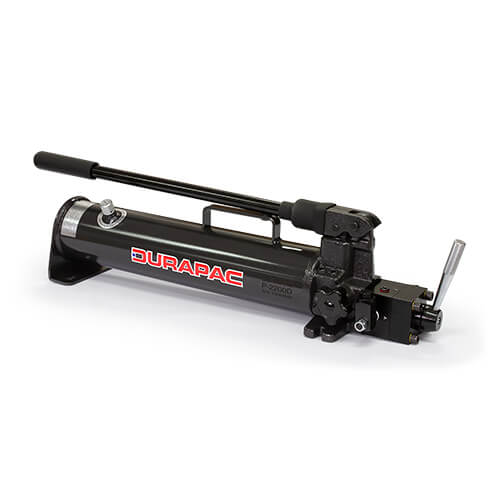

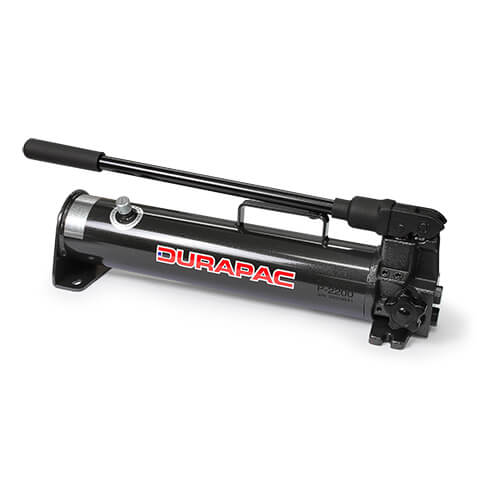

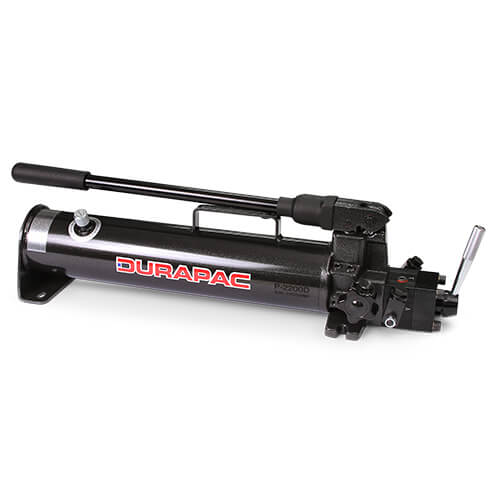

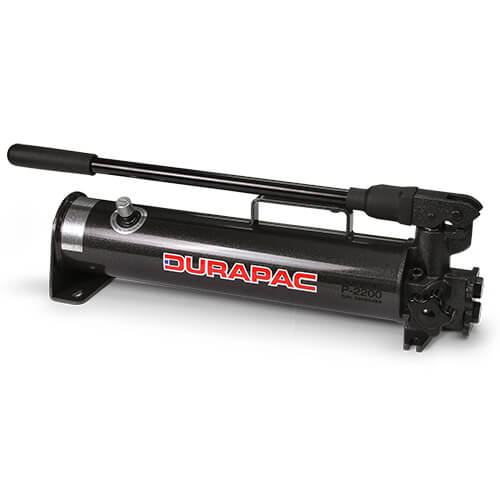

The P-2200 is a 2 Speed, Steel Bodied Hand Pump designed to be used with single acting hydraulic equipment. The P-2200D is a 2 Speed, Steel Bodied Manual Hand Pump with a 4 way valve, designed to be used with double acting hydraulic equipment.

Reservoir Breather

Both model pumps feature a unique oil reservoir breather incorporating a pressure relief valve to guard against accidental over pressurisation of the oil reservoir.

Ease of Handling

Both models have large, easy to grip external pressure release knobs.

Ease of Operation

Both models have a low handle effort for ease of operation.

Double Acting

The P-2200D incorporates a directional control valve, suitable for double acting cylinders and tools.

Proven Performers

They are robustly built, industry proven performers.

Safety Valve

The pumps features a factory set safety pressure relief valve.
Model Number Operation Used with Cylinder Valve Type Pressure Rating (bar) 1st Stage Pressure Rating (bar) 2nd StageUsable Oil Capacity (cc) Oil Volumes per Stroke (cc) 1st Stage Oil Volumes per Stroke (cc) 2nd StageOil Port Thread Max. Handle Effort (kg) Weight with Oil (kg)
P-2200 Two Speed S/A 2 Way 13.87002,00013.02.83/8"-NPTF 3511.5
P-2200DTwo Speed D/A 4 Way 13.87002,00013.02.83/8"-NPTF 3711.5

P-2200 & P-2200D Cylinder Capacity v Pump Handle Strokes

Cylinder Capacity (ton)510152025305075100150200250
P-2200 - 1st Pressure Stage - Movement* (mm)
P-2200 - 2nd Pressure Stage - Movement* (mm)
P-2200D - 1st Pressure Stage - Movement* (mm)
P-2200D - 2nd Pressure Stage - Movement* (mm)
* mm of movement for each stroke of the pump handle
- not recommended
