Any Operating Angle
Both models feature a sealed bladder reservoir which allows the pump to be used at any operating angle.
Ease of Handling
Both models have large, easy to grip external pressure release knobs.
Ease of Operation
Both pumps have a low handle effort for ease of operation.
Dual Operation of Two Single Acting Tools

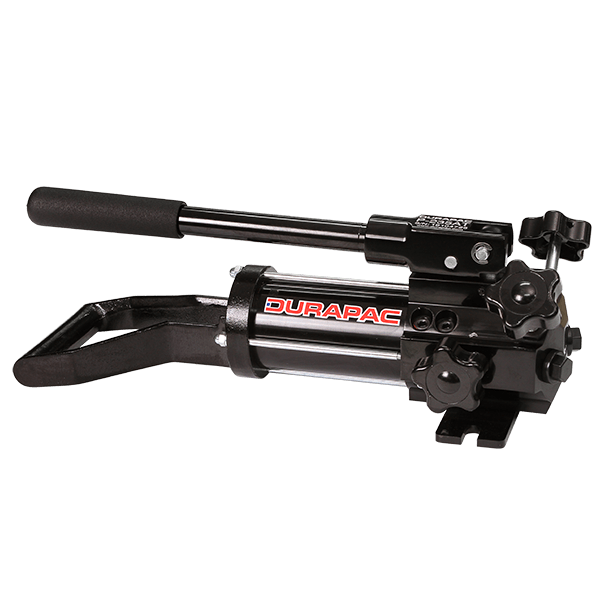

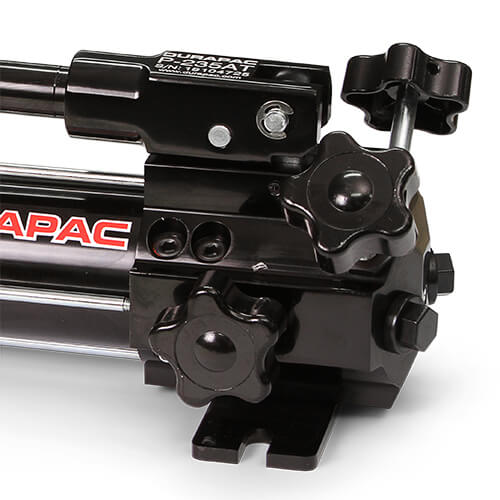

The P-235AT features a twin outlet design and incorporates two needle valves within the pump head. This allows the pump the option of operating two single acting hydraulic tools.
Proven Performer
The pump is a robustly built industry proven performer.
Safety Valve
The pump features a factory set safety pressure relief valve.
| Model Number | Operation | Used with Cylinder | Valve Type | Pressure Rating (bar) 1st Stage | Pressure Rating (bar) 2nd Stage | Usable Oil Capacity (cc) | Oil Volumes per Stroke (cc) 1st Stage | Oil Volumes per Stroke (cc) 2nd Stage | Oil Port Thread | Max. Handle Effort (kg) | Weight with Oil (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P-235A | Two Speed | S/A | 2 Way | 13.8 | 700 | 350 | 3.9 | 0.59 | 3/8"-NPTF | 55 | 3.7 |
| P-235AT | Two Speed | S/A | Twin Outlet | 13.8 | 700 | 350 | 3.9 | 0.59 | 3/8"-NPTF | 55 | 3.8 |
P-235A & P-235AT Cylinder Capacity v Pump Handle Strokes
| Cylinder Capacity (ton) | 5 | 10 | 15 | 20 | 25 | 30 | 50 | 75 | 100 | 150 | 200 | 250 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P-235A - 1st Pressure Stage - Movement* (mm) | 6.2 | 2.6 | 1.9 | 1.3 | 1.1 | 0.9 | - | - | - | - | - | - |
| P-235A - 2nd Pressure Stage - Movement* (mm) | 1.0 | 0.4 | 0.3 | - | - | - | - | - | - | - | - | - |
| P-235AT - 1st Pressure Stage - Movement* (mm) | 6.2 | 2.6 | 1.9 | 1.3 | 1.1 | 0.9 | - | - | - | - | - | - |
| P-235AT - 2nd Pressure Stage - Movement* (mm) | 1.0 | 0.4 | 0.3 | - | - | - | - | - | - | - | - | - |
- not recommended
