Ease of Operation
The low handle effort provides ease of operation.
Ease of Handling
The pumps have large, easy to grip external pressure release knobs.
Carry Handle
The pump body incorporates a convenient carry handle.
Robust
The pump is a robustly built industry proven performer and comes pre-filled with hydraulic oil.
Drop Forged Pump Head
The pump features a drop forged pump head for superior durability.
Safety Valve
The pump features a factory set safety pressure relief valve.
| Model Number | Operation | Used with Cylinder | Valve Type | Pressure Rating (bar) 1st Stage | Pressure Rating (bar) 2nd Stage | Usable Oil Capacity (cc) | Oil Volumes per Stroke (cc) 1st Stage | Oil Volumes per Stroke (cc) 2nd Stage | Oil Port Thread | Max. Handle Effort (kg) | Weight with Oil (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|

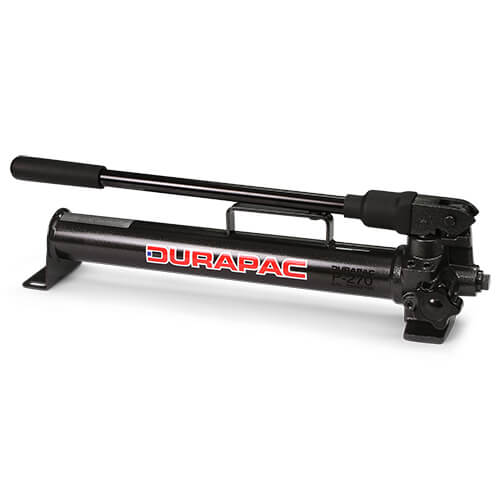

| P-270 | Two Speed | S/A | 2 Way | 13.8 | 700 | 700 | 13.0 | 2.8 | 3/8"-NPTF | 41 | 7.3 |
P-270 Cylinder Capacity v Pump Handle Strokes
| Cylinder Capacity (ton) | 5 | 10 | 15 | 20 | 25 | 30 | 50 | 75 | 100 | 150 | 200 | 250 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P-270 - 1st Pressure Stage - Movement* (mm) | 20.8 | 9.0 | 6.4 | 4.6 | 3.9 | 3.1 | 1.8 | 1.3 | 1.0 | 0.6 | - | - |
| P-270 - 2nd Pressure Stage - Movement* (mm) | 4.5 | 1.9 | 1.4 | 1.0 | 0.8 | 0.7 | 0.4 | 0.3 | 0.2 | 0.1 | - | - |
- not recommended
