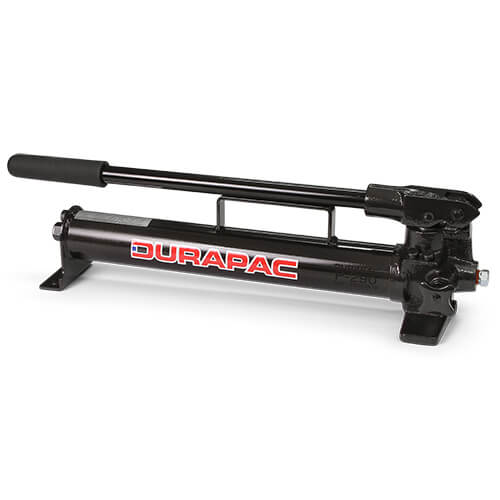

P-290 Steel Bodied Hand Pumps

The P-290 Steel Bodied Hand Pump is a single-acting, two speed, two-way valve design that features a drop forged pump head for superior durability. They are a robustly built, industry proven performer and the perfect choice where manual, portable hydraulic power is required.

P-290

P-290

Ease of Operation

The low handle effort provides ease of operation.

Ease of Handling

The pumps have large, easy to grip external pressure release knobs.

Carry Handle

The pump body incorporates a convenient carry handle.

Robust

The pump is a robustly built industry proven performer and comes pre-filled with hydraulic oil.

Air Vent

An air vent prevents a vacuum being created.

Safety Valve

The pump features a factory set safety pressure relief valve.

P-290

Search:

Model Number	Operation	Used with Cylinder	Valve Type	Pressure Rating (bar) 1st Stage	Pressure Rating (bar) 2nd Stage	Usable Oil Capacity (cc)	Oil Volumes per Stroke (cc) 1st Stage	Oil Volumes per Stroke (cc) 2nd Stage	Oil Port Thread	Max. Handle Effort (kg)	Weight with Oil (kg)
P-290	Two Speed	S/A	2 Way	14	700	900	12.5	2.8	3/8"-NPTF	33	7.5

P-290 Cylinder Capacity v Pump Handle Strokes

Search:

Cylinder Capacity (ton)	5	10	15	20	25	30	50	75	100	150	200	250

Cylinder Capacity (ton)	5	10	15	20	25	30	50	75	100	150	200	250
P-290 - 1st Pressure Stage - Movement* (mm)	20.2	8.8	6.2	4.4	3.8	3.0	1.7	1.2	0.9	0.5	-	-
P-290 - 2nd Pressure Stage - Movement* (mm)	4.5	1.9	1.4	1.0	0.8	0.7	0.4	0.3	0.2	0.1	-	-

* mm of movement for each stroke of the pump handle
- not recommended
