Low Pressure Unloading Valve

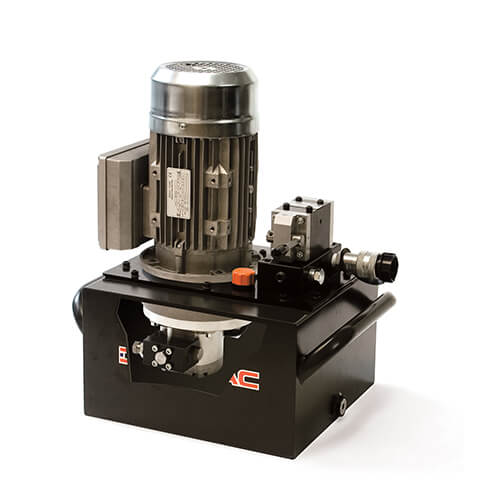

The power unit has a built in low pressure unloading valve.
Safety Pressure
The power unit has a 700 bar safety pressure relief valve.
Perfect Power
The power unit is driven by a 1.5kW, 240 Volt / 50 Hz single phase electric motor.
Adjustable Pressure
An externally adjustable pressure relief valve is included.
Oil Reservoir
The unit has a steel oil reservoir for strength and durability and includes an oil level sight gauge.
Remote Pendant
The unit includes a 4 metre remote pendant to jog the electric motor ON / OFF.
| Model No. | 1st Stage Flow Rate (Lpm) | 2nd Stage Flow Rate (Lpm) | 1st Stage Pressure Rating (bar) | 2nd Stage Pressure Rating (bar) | Motor kW | Voltage (50 Hz) | Amps | Remote Pendant Function 4 mtr | Valve Type (3/8"-NPTF Ports) | Usable Oil Cap. (L) | Approx. Dry Weight (kg) | Approx. Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PEM1514 | 9.5 | 1.1 | 65 | 700 | 1.5 | 240 | 8.3 | MOTOR ON/OFF | 4w/3p Manual | 10 | 46 | 270 W x 410 L x 565 H |
Piston Rod Speed v Cylinder Capacity (15 Series)
| Pressure Stage | Flow (Lpm) | 10 Ton (mm per second) | 15 Ton (mm per second) | 20 Ton (mm per second) | 25 Ton (mm per second) | 30 Ton (mm per second) | 50 Ton (mm per second) | 75 Ton (mm per second) | 100 Ton (mm per second) | 150 Ton (mm per second) | 200 Ton (mm per second) | 250 Ton (mm per second) | 300 Ton (mm per second) | 400 Ton (mm per second) | 500 Ton (mm per second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1st | 9.5 | 109 | 78 | 55 | 48 | 38 | 21 | 15 | 12 | 8 | 6 | 4.3 | 3.5 | 2.8 | 2.2 |
| 2nd | 1.1 | 13 | 9.1 | 6.4 | 5.5 | 4.4 | 2.4 | 1.8 | 1.4 | 0.9 | 0.7 | 0.5 | 0.4 | 0.3 | 0.3 |
