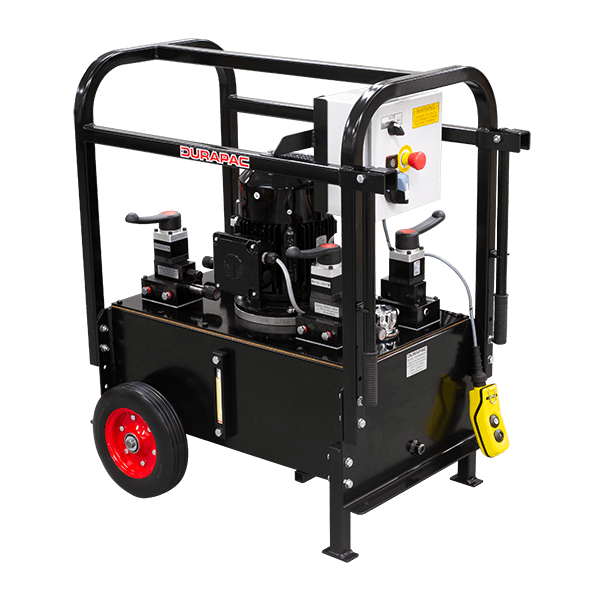

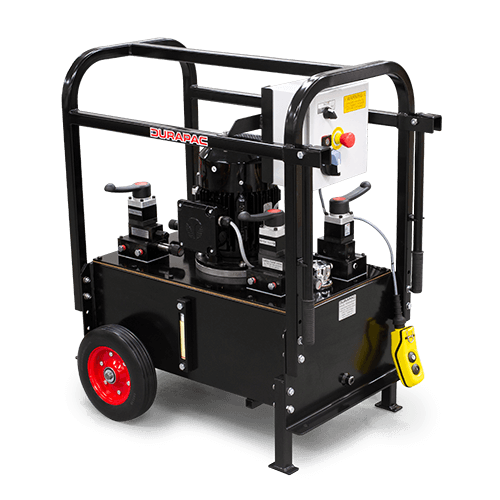

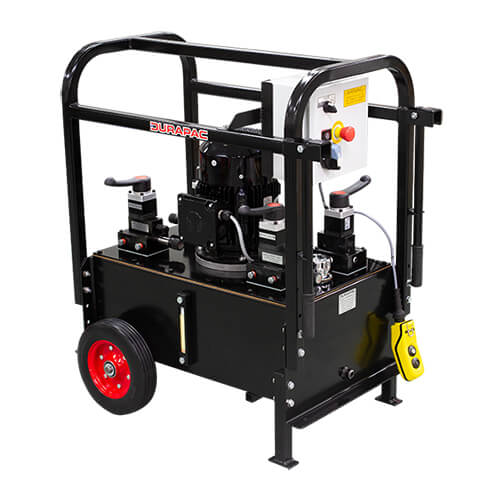

PEMS4054 – 4 Way Split Flow

The PEMS4054 Electric, Hydraulic Split Flow Power Unit features 4 separate hydraulic circuits. Each piston feeds an independent circuit with equal flow regardless of the weight distribution on each outlet. Each circuit is fitted with a directional control valve for operating single and double acting cylinders.

PEMS4054

Perfect Power

The power unit is 4.0 kW, 415 Volt, 50 Hz, 3 phase electric motor.

Safety Pressure

The power unit has a 700 bar safety pressure relief valve on each circuit.

Adjustable Pressure

An externally adjustable pressure relief valve is included on each circuit.

Synchronised Flow

Each circuit delivers the same flow rate regardless of weight distribution.

Directional Control Valve

Each circuit has a 4 way, 3 position manual directional control valve and can be used with single and double acting cylinders.

Medium to Large Tonnage

Ideal for operating medium to large tonnage cylinders and systems.
PEMS4054
INSTRUCTIONS
SPECIFICATIONS
CATALOGUE
Model No. Flow Rate (Lpm) Pressure Rating (bar) Motor kW @ 1,450 rpm Voltage (50 Hz) Amps Pendant Control Valve Type Usable Oil Cap. (L) Approx. Dry Weight (kg) Approx. Dimensions (mm)
PEMS4054 4 x 0.73 70044158.85* 4w/3p Manual 50130440 W x 750 L x 710 H
* Standard supply is motor mounted ON/OFF/JOG switch. Remote pendant is optional.
To order with remote pendant; add "R" to the end of the model number.

PEMS4054 Piston Rod Speed v Cylinder Capacity

Pressure Stage Flow (Lpm) 10 Ton (mm per second)15 Ton (mm per second)20 Ton (mm per second)25 Ton (mm per second)30 Ton (mm per second)50 Ton (mm per second)75 Ton (mm per second)100 Ton (mm per second)150 Ton (mm per second)200 Ton (mm per second)250 Ton (mm per second)300 Ton (mm per second)400 Ton (mm per second)500 Ton (mm per second)
1st 4 x 0.73 8.464.23.72.91.61.20.90.60.50.30.30.20.2
