PEMS751006 – 6 Way Split Flow

The PEMS751006 Electric, Hydraulic Split Flow Power Unit features 6 separate hydraulic circuits. Each piston or group of pistons feeds an independent circuit with equal flow and the ability to work at a different pressure from the others. Each circuit is fitted with the same controls and valves of a single flow unit.

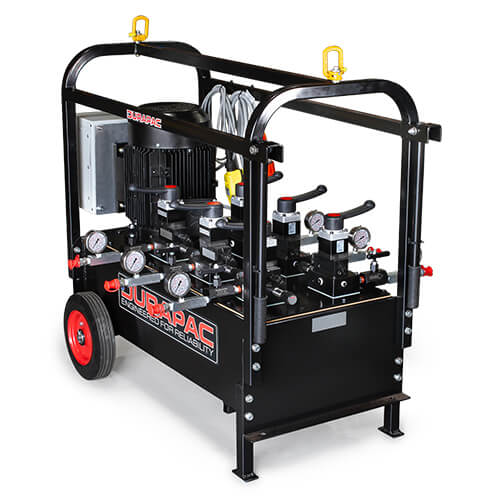

PEMS751006

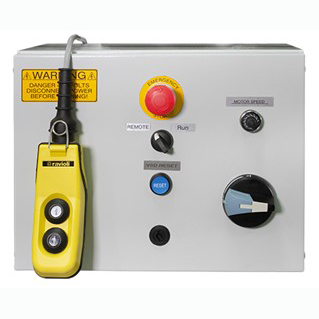

PEMS751006 Control Panel

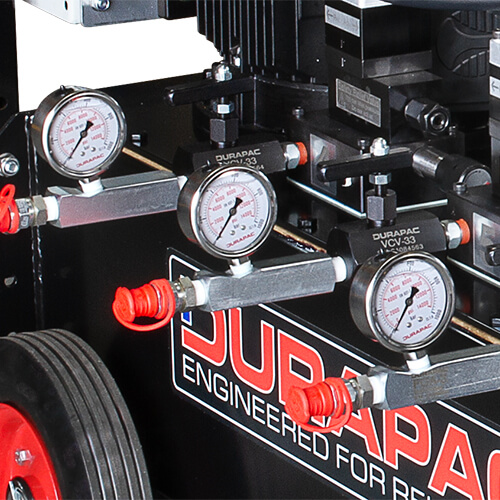

PEMS751006 gauges

PEMS751006

6 Directional Control Valves

The 6 way split flow power unit has 6 directional control valves and the option of 4 adjustable pressure relief valves.

Emergency Stop

The Red Emergency Stop button will immediately stop the motor.

Soft Start

Fitted with a soft start motor starter.

Independent Circuits

Each piston or group of pistons feeds an independent circuit with equal flow and the ability to work at a different pressure from the others.

Perfect Power

The power unit is 7.5 kW, 415 Volt, 50 Hz, 3 phase electric motor.

Adjustable Pressure

An externally adjustable pressure relief valve is included on each circuit.

PEMS751006

Model No.	Motor kW	Voltage (3 Phase)	Amps	Usable Oil Cap. (L)	Pressure Rating (bar)	Flow Per Outlet (Lpm)	Pendant Control	Used with Cylinder	Weight with Oil (kg)
PEMS751006	7.5	415	15^	100	700	0.66	Motor ON/OFF	S/A	300

^ Fitted with a soft start motor starter.
