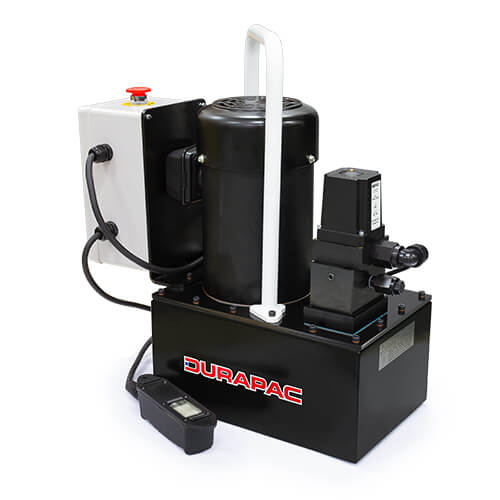

Impressive Operator
Ideal for operating medium to large tonnage cylinders and systems.
Safety Pressure
The power unit has a 700 bar safety pressure relief valve.
Perfect Power
The power unit is driven by a 1.12 kW 230 Volt 50/60 Hz single phase electric motor.
Control Valve
A solenoid directional control valve is ideal for advance, hold and retract functions of single acting cylinders and tools.
Oil Reservoir
The unit has a steel oil reservoir for strength and durability and includes an oil level sight gauge.
Remote Pendant
The unit includes a 4 metre remote pendant to jog the electric motor ON / OFF.
| Model No. | kW | Voltage (1 Phase) | Hz | Amps | Usable Oil Capacity (L) | Max. Pressure Rating (bar) | 1st Stage Flow Rate (Lpm) | 2nd Stage Flow Rate (Lpm) | Remote Pendant Function 4 mtr | Approx. Dry Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| PES1113 | 1.12 | 230 | 50/60 | 8.3 | 9 | 700 | 8.2 | 0.65 | Solenoid Adv/Hold/Retract | 37 |
Piston Rod Speed v Cylinder Capacity (11 Series)
| Pressure Stage | Flow (Lpm) | 10 Ton (mm per second) | 15 Ton (mm per second) | 20 Ton (mm per second) | 25 Ton (mm per second) | 30 Ton (mm per second) | 50 Ton (mm per second) | 75 Ton (mm per second) | 100 Ton (mm per second) | 150 Ton (mm per second) | 200 Ton (mm per second) | 250 Ton (mm per second) | 300 Ton (mm per second) | 400 Ton (mm per second) | 500 Ton (mm per second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1st | 8.20 | 95.00 | 67.00 | 47.00 | 41.00 | 33.00 | 18.00 | 13.00 | 10.00 | 7.00 | 5.00 | 3.70 | 3.00 | 2.40 | 1.90 |
| 2nd | 0.65 | 11.30 | 7.90 | 5.50 | 4.70 | 3.80 | 2.00 | 1.50 | 1.30 | 0.80 | 0.60 | 0.40 | 0.30 | 0.20 | 0.20 |
