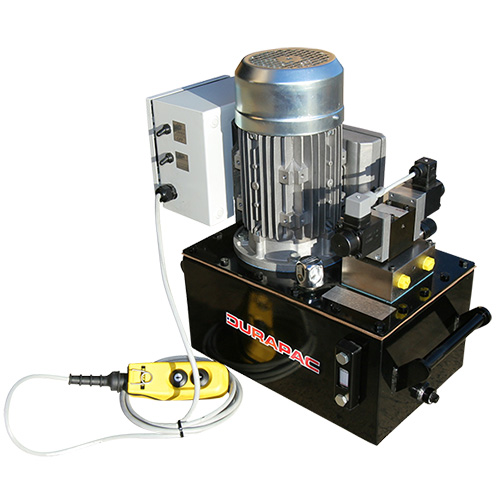

PES1513 – Auto 2 Speed

The PES1513 Electric, Hydraulic Power Unit delivers 9.5 Lpm up to 65 bar and 1.1 Lpm up to 700 bar pressure.

3 Way Solenoid Valve

The power unit has a 3 way solenoid valve.

Safety Pressure

The power unit has a 700 bar safety pressure relief valve.

Perfect Power

The power unit is driven by a 1.5kW, 240 Volt / 50 Hz single phase electric motor.

Remote Pendant

The remote pendant actuates advance/hold/retract functions on single acting cylinders and tools.

Medium to Large Tonnage

Ideal for operating medium to large tonnage cylinders and systems.

Adjustable Pressure

An externally adjustable pressure relief valve is included.
Model No. 1st Stage Flow Rate (Lpm) 2nd Stage Flow Rate (Lpm) 1st Stage Pressure Rating (bar) 2nd Stage Pressure Rating (bar) Motor kW Voltage (50 Hz) Amps Remote Pendant Function 4 mtr Valve Type (3/8"-NPTF Ports)Usable Oil Cap. (L) Approx. Dry Weight (kg) Approx. Dimensions (mm)
PES1513 9.51.1657001.52408.3SOLENOID ADV/HOLD/ RETRACT 3w/3p Solenoid 1059270 W x 410 L x 565 H

Piston Rod Speed v Cylinder Capacity (15 Series)

Pressure Stage Flow (Lpm) 10 Ton (mm per second)15 Ton (mm per second)20 Ton (mm per second)25 Ton (mm per second)30 Ton (mm per second)50 Ton (mm per second)75 Ton (mm per second)100 Ton (mm per second)150 Ton (mm per second)200 Ton (mm per second)250 Ton (mm per second)300 Ton (mm per second)400 Ton (mm per second)500 Ton (mm per second)
1st 9.510978554838211512864.33.52.82.2
2nd 1.1139.16.45.54.42.41.81.40.90.70.50.40.30.3
