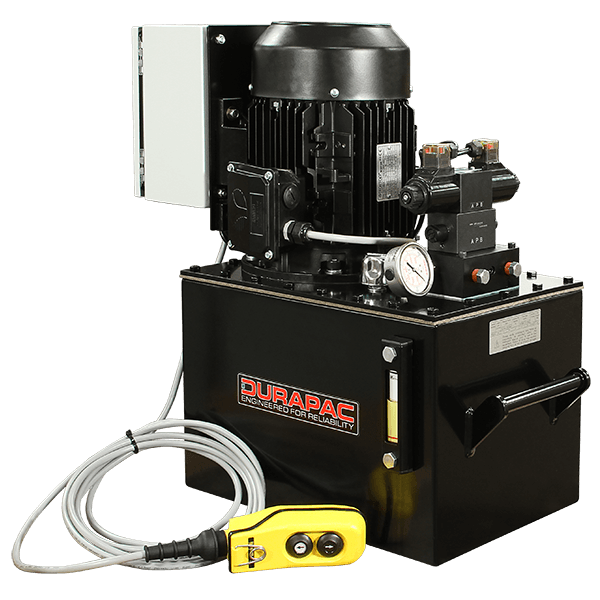

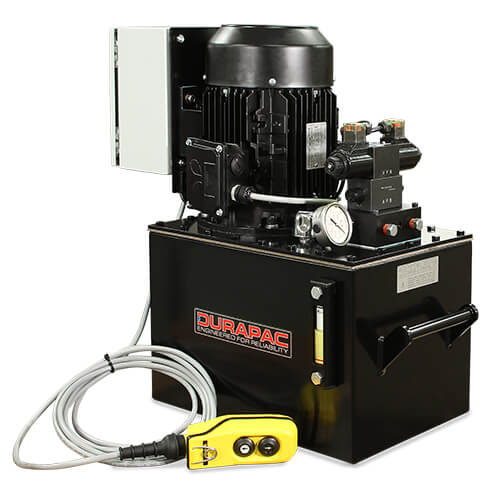

4 Way Solenoid Valve
The power unit has a 4 way solenoid valve.
Safety Pressure
The power unit has a 700 bar safety pressure relief valve.
Perfect Power
The power unit is driven by a 4.0 kW, 415 Volt/50 Hz, 3 phase electric motor.
Remote Pendant
The remote pendant actuates advance/hold/retract functions on double acting cylinders and tools.
Medium to Large Tonnage
Ideal for operating medium to large tonnage cylinders and systems.
Adjustable Pressure
An externally adjustable pressure relief valve is included.
| Model No. | 1st Stage Flow Rate (Lpm) | 2nd Stage Flow Rate (Lpm) | 1st Stage Pressure Rating (bar) | 2nd Stage Pressure Rating (bar) | Motor kW | Voltage (50 Hz) | Amps | Remote Pendant Function 4 mtr | Valve Type (3/8"-NPTF Ports) | Usable Oil Cap. (L) | Approx. Dry Weight (kg) | Approx. Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PES4024 | 14 | 3 | 110 | 700 | 4 | 415 | 8.85 | SOLENOID ADV/HOLD/ RETRACT | 4w/3p Solenoid | 20 | 86 | 320 W x 450 L x 590 H |
Piston Rod Speed v Cylinder Capacity (40 Series)
| Pressure Stage | Flow (Lpm) | 10 Ton (mm per second) | 15 Ton (mm per second) | 20 Ton (mm per second) | 25 Ton (mm per second) | 30 Ton (mm per second) | 50 Ton (mm per second) | 75 Ton (mm per second) | 100 Ton (mm per second) | 150 Ton (mm per second) | 200 Ton (mm per second) | 250 Ton (mm per second) | 300 Ton (mm per second) | 400 Ton (mm per second) | 500 Ton (mm per second) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1st | 14 | 161 | 115 | 81 | 70 | 56 | 30 | 23 | 18 | 12 | 8.8 | 6.4 | 5.1 | 4.2 | 3.2 |
| 2nd | 3 | 35 | 25 | 17 | 15 | 12 | 6.5 | 4.9 | 3.8 | 2.5 | 1.9 | 1.4 | 1.1 | 0.9 | 0.7 |
