Horizontal or Vertical Operation
The system can be used when the poles are horizontal or vertical.
Solo Operation
Each component is designed to be easily handled by one person.
Simple Assembly
Step-by-step instructions are included in the Operating Manual to guide you through the assembly.
Kit Inclusions
• 2 x RAP-206 pull cylinder
• Cylinder clevis and load pin
• 2 x steel upper jacking frames
• 2 x steel lower jacking frames
• 2 x Grade 100 chain with grab hook
• Jacking bolts and studs
• Operating manual
• Pressure versus Load Data sheet
High Strength

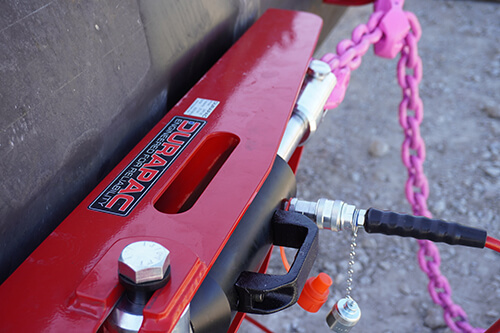

High strength welded steel jacking frames & Grade 100 RUD ® VIP chain.
Perfect Power Options
Durapac offers a range of suitable power pumps and accessories to suit. See table below for recommendations.
| Model Number | Max. Load (lb) | Max. Stroke (In) | Working Pressure (psi) | Chain Length (ft) | Jacking Nut Centers (In) | Max. Component Weight (lb) |
|---|---|---|---|---|---|---|
| DDP-20* | 87,000 | 5.90 | 10,000 | 8 | 30 | 45 |
Recommended Pumps & Accessories
| Pump Type | Pump Model No. | Image |
|---|---|---|

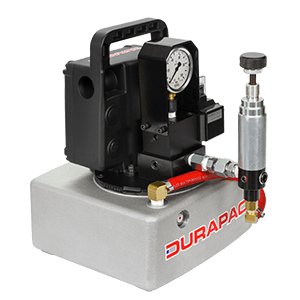

| Electric Power Unit (115 Volt) with Remote Pendant | SPES4505NCL-115V* with VRV-1 pressure relief valve |  |

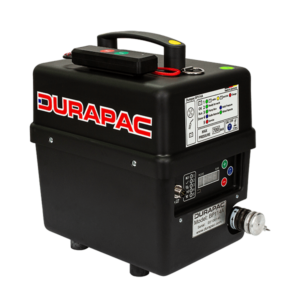

| Battery Power Unit with both Bluetooth & Corded Remotes | BP114A |  |

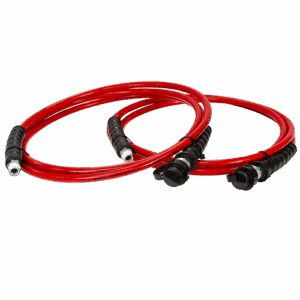

| High Pressure Hydraulic Hoses (10 ft) | HPS-0603CR |  |

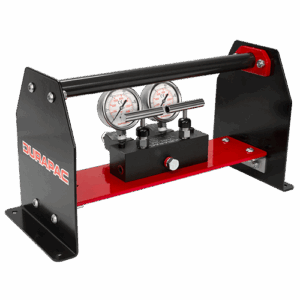

| Needle Valve Manifolds with Transport Frame (2 Ports) | VMN-2M-GFC |  |
