RC-Series S/A, General Purpose

The RC Series is a Single Acting, Spring Return Cylinder that has been designed for general purpose applications that require the cylinder to be collar or base mounted. These cylinders can be used in all positions.

Hard Chrome Piston Rod

All RC Series cylinders feature a hard chrome piston rod for maximum corrosion-resistance.

Threaded Base & Piston Rod

Threaded cylinder base and piston rod for use with attachments.

Return Spring

The return spring is sized to ensure efficient piston rod return and maximum spring life.

Flexible Usage

These cylinders can be used in all positions.

Hydraulic Coupling

High flow coupling compatible with all Durapac pumps.

Hand Pump Options Available

Durapac offers a range of lightweight
hand pumps, the perfect choice when
portable manual power is desirable.
Model No.Capacity (ton)Stroke (mm)Max. Pressure (bar)Oil Port ThreadWeight (kg)

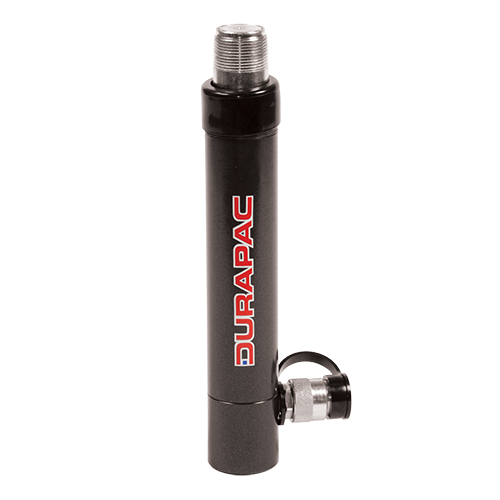

RC-106T101507003/8" NPTF5.3

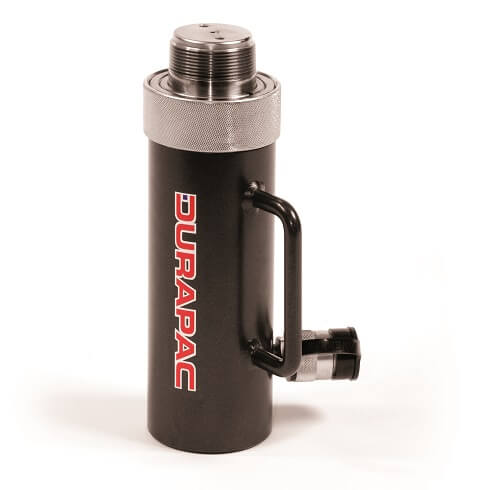

RC-205T201277003/8" NPTF11.0

RC-Series Seal Kits

Seal Kit to SuitPart Number
