RG-Series S/A, General Purpose

The RG-Series is a Single Acting, General Purpose, Spring Return Cylinder designed for use in production, maintenance and fabrication applications.

Hardened Grooved Saddle

Prevents piston rod damage. Optional tilt saddles available.

Cylinder Body Mounting Threads

Piston rod threads and base mounting holes permit easy fixture.

Return Springs

Sized to ensure efficient piston rod return and maximum spring life.

Hard Chrome Plated Piston Rod & Bore

Maximum corrosion-resistance and cylinder life.

Powder Coated Finish

Enhances appearance and reduces corrosion.

Bronze Overlay

Bronze overlay on piston bearing area reduces side load.

INSTRUCTIONS

SPECIFICATIONS

CATALOGUE

Model Number	Cylinder Capacity ton*	Cylinder Capacity kN	Stroke (mm)	Cylinder Effective Area (cm²)	Oil Capacity (cm³)	Collapsed Height (mm)	Extended Height (mm)	Outside Diameter (mm)	Cylinder Bore Diameter (mm)	Piston Rod Diameter (mm)	Base to Advance Port (mm)	Standard Saddle Diameter (mm)	Saddle Protrusion from Piston Rod (mm)	Piston Rod Internal Thread	Piston Rod Thread Length (mm)	Collar Thread	Collar Thread Length (mm)	Weight (kg)	Optional Tilt Saddle Model Number	Model Number	Handle Type
RG-50	5	45	16	6.5	10	41	57	58	28.7	25.4	19	**	**	**	**	-	-	1.0	-	RG-50	-
RG-51	5	45	25	6.5	16	110	135	38	28.7	25.4	19	25	6	3/4"-16UNF	14	1-1/2"-16UN	28	1.0	-	RG-51	-
RG-53	5	45	76	6.5	49	165	241	38	28.7	25.4	19	25	6	3/4"-16UNF	14	1-1/2"-16UN	28	1.5	-	RG-53	-
RG-55	5	45	127	6.5	82	215	342	38	28.7	25.4	19	25	6	3/4"-16UNF	14	1-1/2"-16UN	28	1.9	-	RG-55	-
RG-57	5	45	177	6.5	114	273	450	38	28.7	25.4	19	25	6	3/4"-16UNF	16	1-1/2"-16UN	28	2.4	-	RG-57	-
RG-59	5	45	232	6.5	150	323	555	38	28.7	25.4	19	25	6	3/4"-16UNF	16	1-1/2"-16UN	28	2.8	-	RG-59	-
RG-101	10	101	26	14.5	38	89	115	57	42.9	38.1	19	-	-	#10-24UNC	6	2-1/4"-14UN	26	1.8	-	RG-101	-
RG-102	10	101	54	14.5	78	121	175	57	42.9	38.1	19	35	6	1"-8UNC	19	2-1/4"-14UN	26	2.3	TSX-10	RG-102	-
RG-104	10	101	105	14.5	152	171	276	57	42.9	38.1	19	35	6	1"-8UNC	19	2-1/4"-14UN	26	3.3	TSX-10	RG-104	-
RG-106	10	101	156	14.5	226	247	403	57	42.9	38.1	19	35	6	1"-8UNC	19	2-1/4"-14UN	26	4.4	TSX-10	RG-106	-
RG-108	10	101	203	14.5	294	298	501	57	42.9	38.1	19	35	6	1"-8UNC	19	2-1/4"-14UN	26	5.4	TSX-10	RG-108	-
RG-1010	10	101	257	14.5	372	349	606	57	42.9	38.1	19	35	6	1"-8UNC	19	2-1/4"-14UN	26	6.4	TSX-10	RG-1010	-
RG-1012	10	101	304	14.5	440	400	704	57	42.9	38.1	19	35	6	1"-8UNC	19	2-1/4"-14UN	26	6.8	TSX-10	RG-1012	-
RG-1014	10	101	356	14.5	515	450	806	57	42.9	38.1	19	35	6	1"-8UNC	19	2-1/4"-14UN	26	8.2	TSX-10	RG-1014	-
RG-151	15	142	25	20.3	51	124	149	69	50.8	41.4	19	38	9	1"-8UNC	25	2-3/4"-16UN	30	3.3	TSX-10	RG-151	-
RG-152	15	142	51	20.3	103	149	200	69	50.8	41.4	19	38	9	1"-8UNC	25	2-3/4"-16UN	30	4.1	TSX-10	RG-152	-
RG-154	15	142	101	20.3	205	200	301	69	50.8	41.4	19	38	9	1"-8UNC	25	2-3/4"-16UN	30	5.0	TSX-10	RG-154	-
RG-156	15	142	152	20.3	308	271	423	69	50.8	41.4	25	38	9	1"-8UNC	25	2-3/4"-16UN	30	6.8	TSX-10	RG-156	-
RG-158	15	142	203	20.3	411	322	525	69	50.8	41.4	25	38	9	1"-8UNC	25	2-3/4"-16UN	30	8.2	TSX-10	RG-158	-
RG-1510	15	142	254	20.3	515	373	627	69	50.8	41.4	25	38	9	1"-8UNC	25	2-3/4"-16UN	30	9.5	TSX-10	RG-1510	-
RG-1512	15	142	305	20.3	618	423	728	69	50.8	41.4	25	38	9	1"-8UNC	25	2-3/4"-16UN	30	10.9	TSX-10	RG-1512	-
RG-1514	15	142	356	20.3	721	474	830	69	50.8	41.4	25	38	9	1"-8UNC	25	2-3/4"-16UN	30	11.8	TSX-10	RG-1514	-
RG-251	25	232	26	33.2	86	139	165	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	5.9	TSX-50	RG-251	-
RG-252	25	232	50	33.2	166	165	215	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	6.4	TSX-50	RG-252	-
RG-254	25	232	102	33.2	339	215	317	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	8.2	TSX-50	RG-254	-

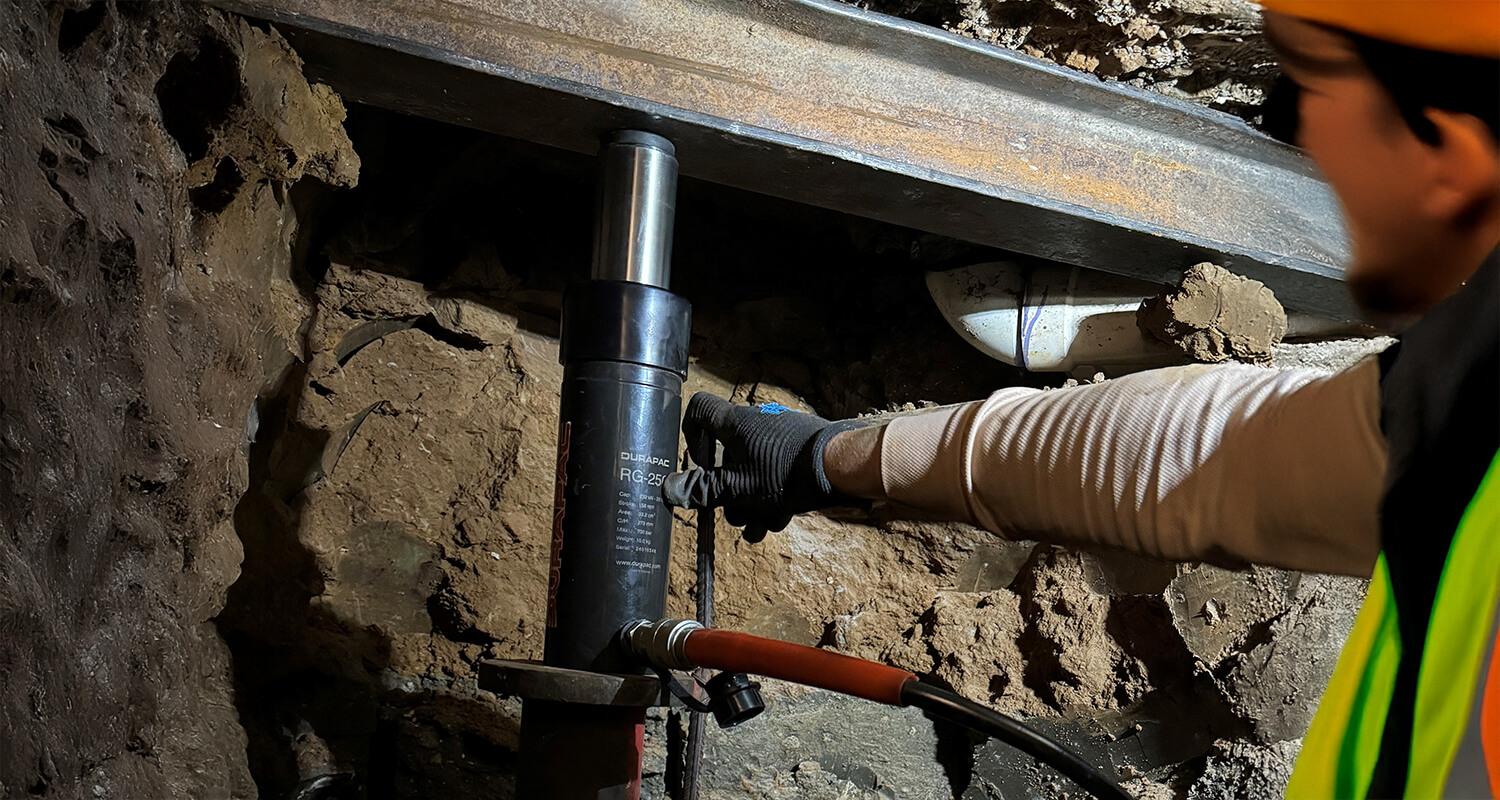

RG-256	25	232	158	33.2	524	273	431	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	10.0	TSX-50	RG-256	-
RG-258	25	232	210	33.2	697	323	533	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	12.2	TSX-50	RG-258	-
RG-2510	25	232	261	33.2	866	374	635	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	14.1	TSX-50	RG-2510	-
RG-2512	25	232	311	33.2	1,032	425	736	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	16.3	TSX-50	RG-2512	-
RG-2514	25	232	362	33.2	1,205	476	838	85	65.0	57.2	25	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	17.7	TSX-50	RG-2514	-
RG-308	30	295	209	42.1	878	387	596	101	73.2	57.2	57	50	10	1-1/2"-16UN	25	3-5/16"-12UN	49	18.1	TSX-50	RG-308	-
RG-502	50	498	51	71.2	363	176	227	127	95.3	79.5	33	71	2	-	-	5"-12UN	55	15.0	TSX-100	RG-502	-
RG-504	50	498	101	71.2	719	227	328	127	95.3	79.5	33	71	2	-	-	5"-12UN	55	19.1	TSX-100	RG-504	♠
RG-506 †	50	498	159	71.2	1,132	282	441	127	95.3	79.5	35	71	2	-	-	5"-12UN	55	23.1	TSX-100	RG-506	♣

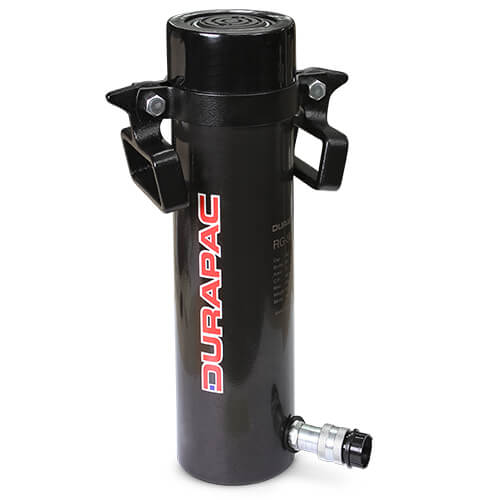

RG-5013	50	498	337	71.2	2,400	460	797	127	95.3	79.5	35	71	2	-	-	5"-12UN	55	37.6	TSX-100	RG-5013	♦
RG-756	75	718	156	102.6	1,600	285	441	146	114.3	95.3	30	71	5	-	-	5-3/4"-12UN	44	29.5	TSX-100	RG-756	♦
RG-7513	75	718	333	102.6	3,415	492	825	146	114.3	95.3	30	71	5	-	-	5-3/4"-12UN	44	59.0	TSX-100	RG-7513	♦
RG-1004	100	933	102	133.3	1,354	205	306	177	130.3	104.9	30	71	2	-	-	6-7/8"-12UN	44	33.1	TSX-100	RG-1004	♣
RG-1006	100	933	168	133.3	2,239	357	525	177	130.3	104.9	41	71	2	-	-	6-7/8"-12UN	44	59.0	TSX-100	RG-1006	♦
RG-1008	100	933	203	133.3	2,708	357	560	177	130.3	104.9	41	71	2	-	-	6-7/8"-12UN	44	61.0	TSX-100	RG-1008	♦
RG-10010	100	933	260	133.3	3,465	449	709	177	130.3	104.9	41	71	2	-	-	6-7/8"-12UN	44	72.6	TSX-100	RG-10010	♦

* Nominal Cylinder Capacity in ton - see kN values for actual capacity
** RG-50 Cylinder has non-removable grooved saddle and no collar thread

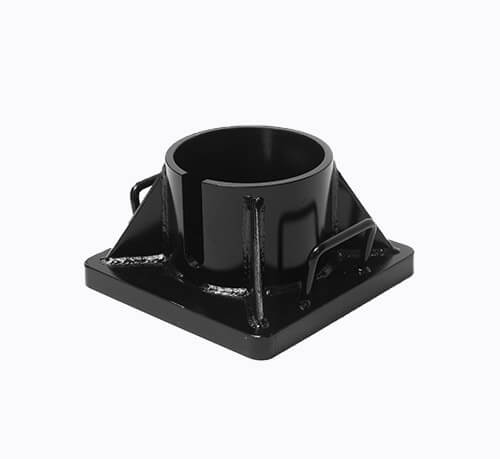

† RG-506 cylinder will not fit into jacking base without welded handle being removed
HANDLE TYPES: ♣ WELDED ♦ EYEBOLT ♥ REMOVABLE STRAP HANDLE ♠ THREAD

RG-Series Seal Kits

Seal Kit to Suit	Part Number
RG 5 TON SERIES (except RG-50 & RG-51)	ZAM1038
RG-50	ZAM1095
RG-51	ZAM1096
RG 10 TON SERIES	ZAM1033
RG 15 TON SERIES	ZAM1035
RG 25 TON SERIES	ZAM1036
RG 30 TON SERIES	ZAM1037
RG 50 TON SERIES	ZAM1039
RG 75 TON SERIES	ZAM1040
RG 100 TON SERIES	ZAM1034
