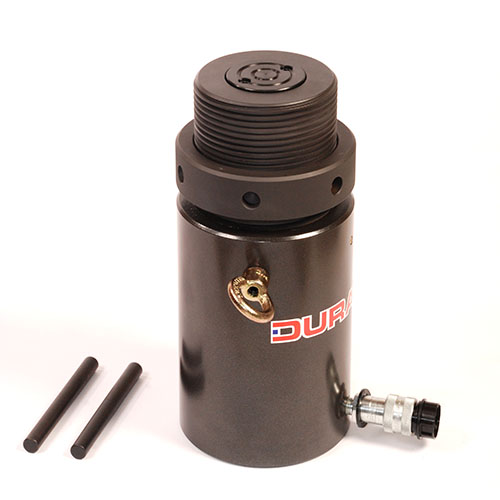

RSLC-Series S/A, High Tonnage, Locking Collar

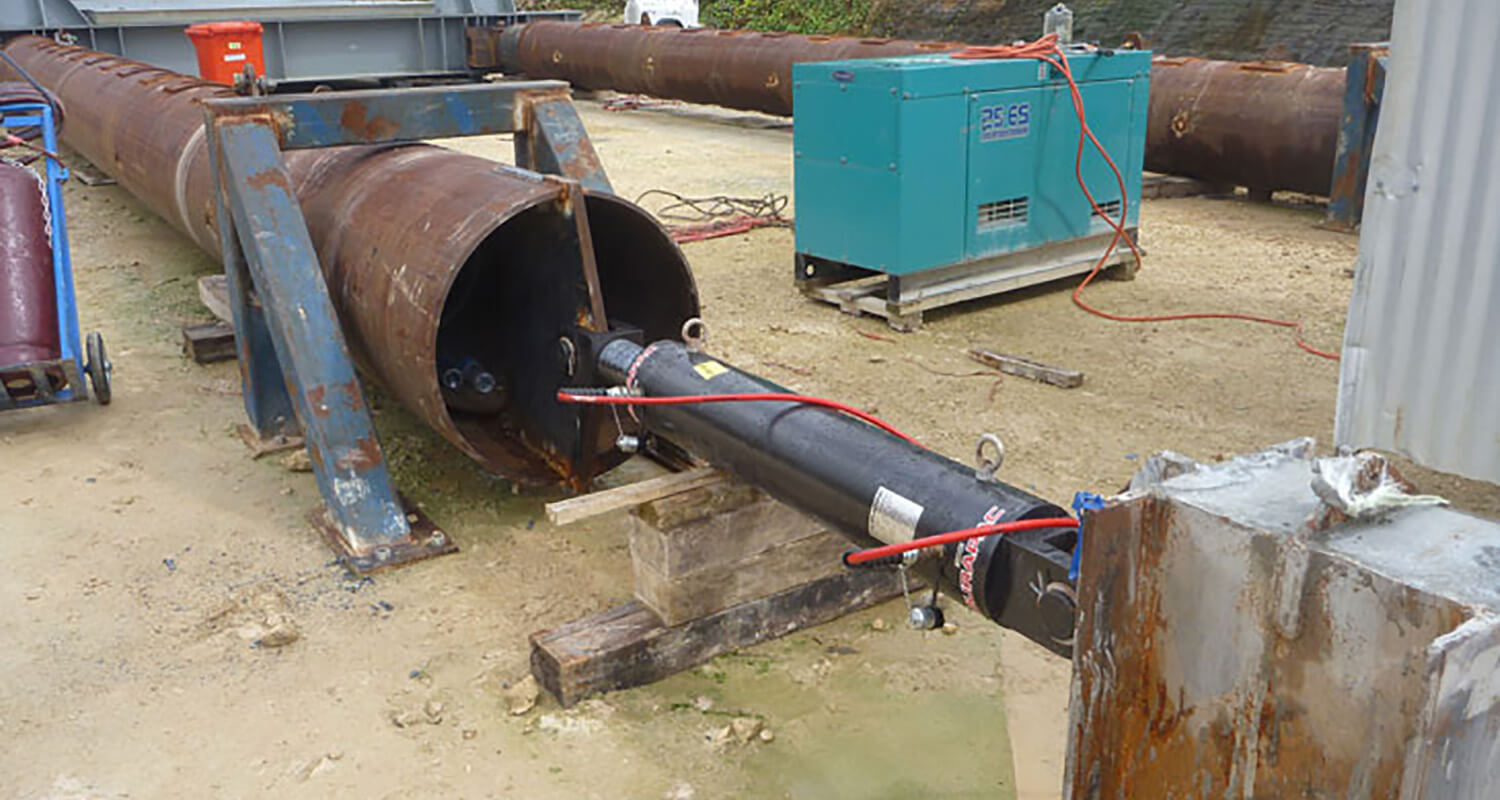

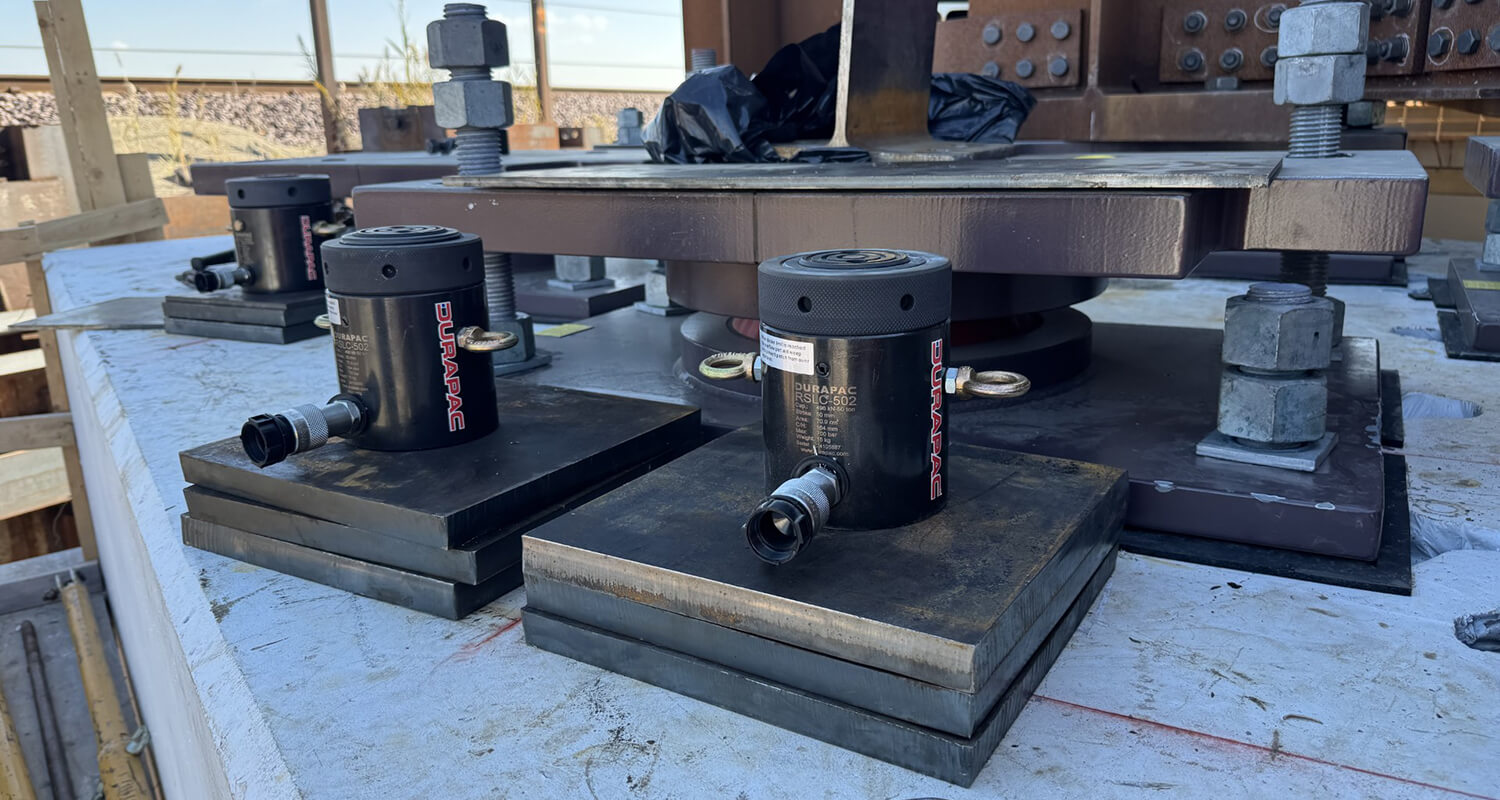

The RSLC-Series is a Single Acting, Load Return, High Tonnage, Locking Collar Cylinder. It features a threaded piston rod and lock ring. When the lock ring is screwed down and engaged with the cylinder body, the load can be held mechanically for extended periods. These cylinders are ideally suited to bridge construction and jacking applications requiring safe extended load holding.

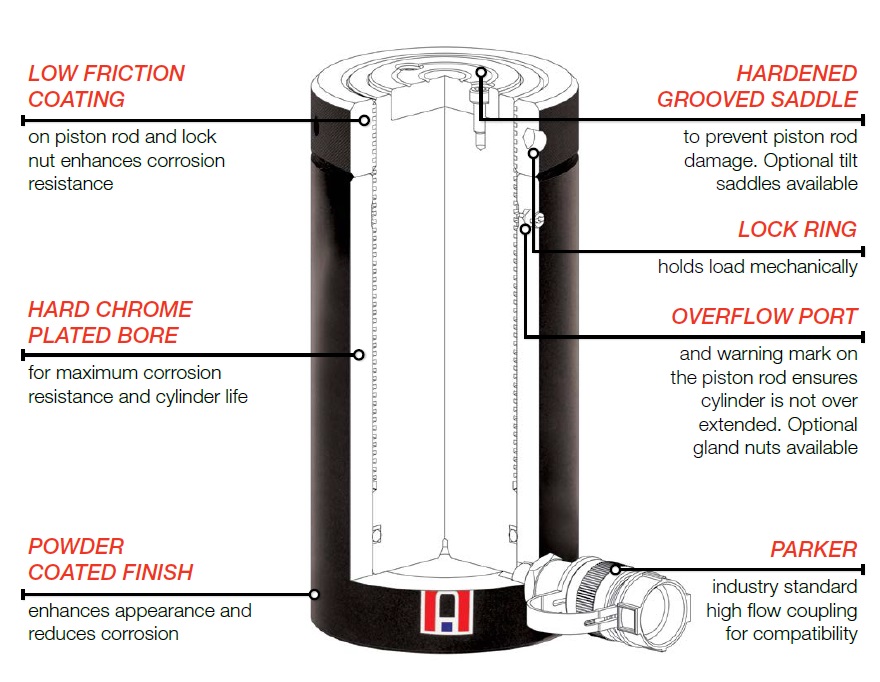

Hard Chrome Plated Bore

All RSLC-Series cylinders feature a hard chrome bore for maximum corrosion resistance.

Low Friction Coating

A special coating on the piston rod and lock ring to resist corrosion and abrasion.

Overflow Port

An oil overflow port and warning mark on the piston rod ensures cylinder is not over extended. Optional gland nuts are also available.

Hardened Groove Saddle

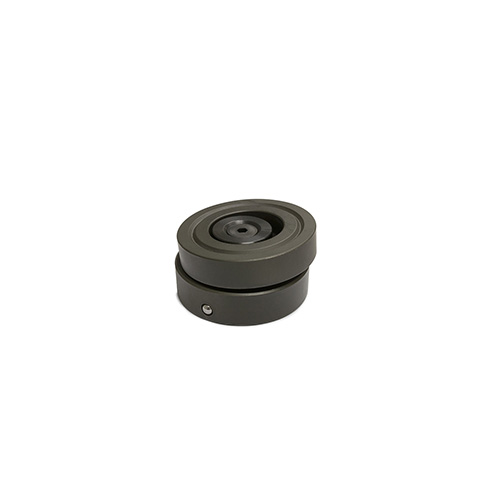

Hardened removable saddles are standard and TSX tilt saddles are optional.

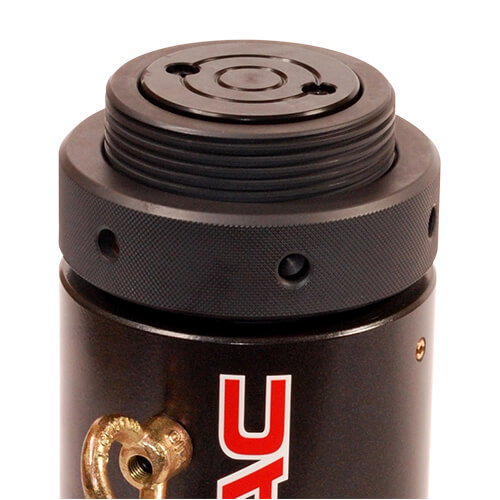

Lock Ring

A lock ring holds the load mechanically.

Powder Coated Finish

The powder coated finish enhances appearance and reduces corrosion.

INSTRUCTIONS

SPECIFICATIONS

CATALOGUE

Model Number	Cylinder Capacity ton*	Cylinder Capacity kN	Stroke (mm)	Cylinder Effective Area (cm²)	Oil Capacity (cm³)	Collapsed Height (mm)	Extended Height (mm)	Outside Diameter (mm)	Cylinder Bore Diameter (mm)	Piston Rod Diameter (mm)**	Base to Advance Port (mm)	Standard Saddle Diameter (mm)	Saddle Protrusion from Piston Rod (mm)	Depth of Piston Rod Hole (mm)	Lock Ring Height (mm)	Weight (kg)	Optional Tilt Saddle Model Number	Optional Tilt Saddle Diameter (mm)	Optional Tilt Saddle Height (mm)***	Model Number	Handle Type
RSLC-502	50	496	50	70.9	355	164	214	125	95	TR95x4	30	71	2	13	36	15	TSX-100	71	24	RSLC-502	♦
RSLC-504	50	496	100	70.9	708	214	314	125	95	TR95x4	30	71	2	13	36	20	TSX-100	71	24	RSLC-504	♦
RSLC-506	50	496	150	70.9	1,063	264	414	125	95	TR95x4	30	71	2	13	36	25	TSX-100	71	24	RSLC-506	♦
RSLC-508	50	496	200	70.9	1,417	314	514	125	95	TR95x4	30	71	2	13	36	30	TSX-100	71	24	RSLC-508	♦
RSLC-5010	50	496	250	70.9	1,771	364	614	125	95	TR95x4	30	71	2	13	36	35	TSX-100	71	24	RSLC-5010	♦
RSLC-5012	50	496	300	70.9	2,125	414	714	125	95	TR95x4	30	71	2	13	36	40	TSX-100	71	24	RSLC-5012	♦
RSLC-1002	100	929	50	132.7	664	187	237	165	130	TR130x6	30	71	2	13	44	30	TSX-100	71	24	RSLC-1002	♦
RSLC-1004	100	929	100	132.7	1,327	237	337	165	130	TR130x6	30	71	2	13	44	39	TSX-100	71	24	RSLC-1004	♦
RSLC-1006	100	929	150	132.7	1,990	287	437	165	130	TR130x6	30	71	2	13	44	48	TSX-100	71	24	RSLC-1006	♦
RSLC-1008	100	929	200	132.7	2,653	337	537	165	130	TR130x6	30	71	2	13	44	56	TSX-100	71	24	RSLC-1008	♦
RSLC-10010	100	929	250	132.7	3,317	387	637	165	130	TR130x6	30	71	2	13	44	64	TSX-100	71	24	RSLC-10010	♦
RSLC-10012	100	929	300	132.7	3,980	437	737	165	130	TR130x6	30	71	2	13	44	73	TSX-100	71	24	RSLC-10012	♦
RSLC-1502	150	1,390	50	198.6	993	209	259	205	159	TR159x6	39	130	2	25	44	53	TSX-200	130	20	RSLC-1502	♦
RSLC-1504	150	1,390	100	198.6	1,985	259	359	205	159	TR159x6	39	130	2	25	44	66	TSX-200	130	20	RSLC-1504	♦
RSLC-1506	150	1,390	150	198.6	2,977	309	459	205	159	TR159x6	39	130	2	25	44	78	TSX-200	130	20	RSLC-1506	♦
RSLC-1508	150	1,390	200	198.6	3,969	359	559	205	159	TR159x6	39	130	2	25	44	92	TSX-200	130	20	RSLC-1508	♦
RSLC-15010	150	1,390	250	198.6	4,961	409	659	205	159	TR159x6	39	130	2	25	44	104	TSX-200	130	20	RSLC-15010	♦
RSLC-15012	150	1,390	300	198.6	5,954	459	759	205	159	TR159x6	39	130	2	25	44	117	TSX-200	130	20	RSLC-15012	♦
RSLC-2002	200	1,859	50	265.6	1,330	243	293	235	184	TR184x6	50	130	2	25	50	83	TSX-200	130	20	RSLC-2002	♦
RSLC-2006	200	1,859	150	265.6	3,987	343	493	235	184	TR184x6	50	130	2	25	50	117	TSX-200	130	20	RSLC-2006	♦
RSLC-20012	200	1,859	300	265.6	7,973	493	793	235	184	TR184x6	50	130	2	25	50	170	TSX-200	130	20	RSLC-20012	♦
RSLC-2502	250	2,562	50	366.1	1,833	249	299	275	216	TR216x6	50	150	2	25	56	116	TSX-250	150	21	RSLC-2502	♦
RSLC-2506	250	2,562	150	366.1	5,494	349	499	275	216	TR216x6	50	150	2	25	56	162	TSX-250	150	21	RSLC-2506	♦
RSLC-25012	250	2,562	300	366.1	10,987	499	799	275	216	TR216x6	50	150	2	25	56	234	TSX-250	150	21	RSLC-25012	♦
RSLC-3002	300	3,193	50	456.2	2,282	295	345	310	241	TR241x6	59	139	5	25	60	173	TSX-300	195	75	RSLC-3002	♦
RSLC-3006	300	3,193	150	456.2	6,844	395	545	310	241	TR241x6	59	139	5	25	60	233	TSX-300	195	75	RSLC-3006	♦
RSLC-30012	300	3,193	300	456.2	13,678	545	845	310	241	TR241x6	59	139	5	25	60	323	TSX-300	195	75	RSLC-30012	♦
RSLC-4002	400	3,919	50	559.9	2,798	335	385	350	267	TR266x6	70	159	5	25	70	250	TSX-400	225	85	RSLC-4002	♦
RSLC-4006	400	3,919	150	559.9	8,394	435	585	350	267	TR266x6	70	159	5	25	70	327	TSX-400	225	85	RSLC-4006	♦
RSLC-40012	400	3,919	300	559.9	16,789	585	885	350	267	TR266x6	70	159	5	25	70	441	TSX-400	225	85	RSLC-40012	♦
RSLC-5002	500	5,118	50	731.1	3,651	375	425	400	305	TR305x6	80	179	5	25	80	367	TSX-500	250	91	RSLC-5002	♦
RSLC-5006	500	5,118	150	731.1	10,954	475	625	400	305	TR305x6	80	179	5	25	80	466	TSX-500	250	91	RSLC-5006	♦
RSLC-50012	500	5,118	300	731.1	21,907	625	925	400	305	TR305x6	80	179	5	25	80	617	TSX-500	250	91	RSLC-50012	♦
RSLC-6002	600	5,983	50	854.8	4,274	395	445	430	330	TR330x6	85	194	5	25	85	446	TSX-600	275	96	RSLC-6002	♦
RSLC-6006	600	5,983	150	854.8	12,823	495	645	430	330	TR330x6	85	194	5	25	85	562	TSX-600	275	96	RSLC-6006	♦
RSLC-60012	600	5,983	300	854.8	25,646	645	945	430	330	TR330x6	85	194	5	25	85	737	TSX-600	275	96	RSLC-60012	♦
RSLC-8002	800	8,238	50	1,176.9	5,878	455	505	505	387	TR387x6	100	224	5	25	100	709	TSX-800	320	123	RSLC-8002	♦
RSLC-8006	800	8,238	150	1,176.9	17,635	555	705	505	387	TR387x6	100	224	5	25	100	870	TSX-800	320	123	RSLC-8006	♦
RSLC-80012	800	8,238	300	1,176.9	35,271	705	1,005	505	387	TR387x6	100	224	5	25	100	1,110	TSX-800	320	123	RSLC-80012	♦
RSLC-10002	1,000	10,260	50	1,466.4	7,325	495	545	560	432	TR432x6	110	249	5	25	110	949	TSX-1000	360	136	RSLC-10002	♦
RSLC-10006	1,000	10,260	150	1,466.4	21,975	595	745	560	432	TR432x6	110	249	5	25	110	1,141	TSX-1000	360	136	RSLC-10006	♦
RSLC-100012	1,000	10,260	300	1,466.4	43,950	745	1,045	560	432	TR432x6	110	249	5	25	110	1,430	TSX-1000	360	136	RSLC-100012	♦

* Nominal Cylinder Capacity in ton - see kN values for actual capacity
** TR is a metric trapezoidal thread
*** Total cylinder collapsed height with optional tilt saddle equals (Cylinder Height - Saddle Protrusion + Tilt Saddle Height)
HANDLE TYPES: ♣ WELDED ♦ EYEBOLT ♥ REMOVABLE STRAP HANDLE ♠ THREAD

RSLC-Series Seal Kits

Seal Kit to Suit	Part Number
RSLC 50 TON SERIES	ZAM1085
RSLC 100 TON SERIES	ZAM1079
RSLC 150 TON SERIES	ZAM1080
RSLC 200 TON SERIES	ZAM1081
RSLC 250 TON SERIES	ZAM1082
RSLC 300 TON SERIES	ZAM1083
RSLC 400 TON SERIES	ZAM1084
RSLC 500 TON SERIES	ZAM1086

RSLC-Series S/A, High Tonnage, Locking Collar

Hard Chrome Plated Bore

All RSLC-Series cylinders feature a hard chrome bore for maximum corrosion resistance.

Low Friction Coating

A special coating on the piston rod and lock ring to resist corrosion and abrasion.

Overflow Port

An oil overflow port and warning mark on the piston rod ensures cylinder is not over extended. Optional gland nuts are also available.

Hardened Groove Saddle

Hardened removable saddles are standard and TSX tilt saddles are optional.

Lock Ring

A lock ring holds the load mechanically.

Powder Coated Finish

The powder coated finish enhances appearance and reduces corrosion.

RSLC-Series Seal Kits
