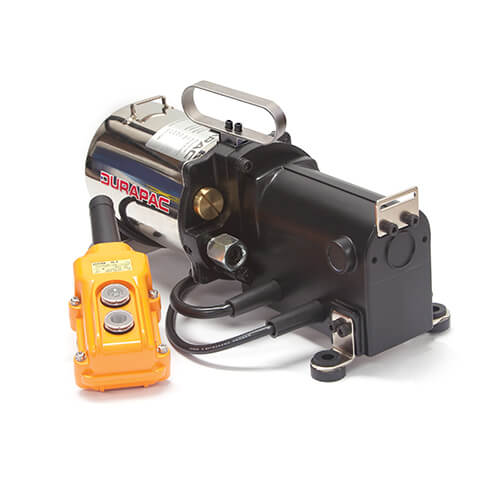

Power
The power unit is driven by a 0.35 kW, 230 Volt or 115 Volt, 50/60 Hz single phase electric motor.
Operates at Any Angle
May be used at any angle due to the fully enclosed rubber lined reservoir.

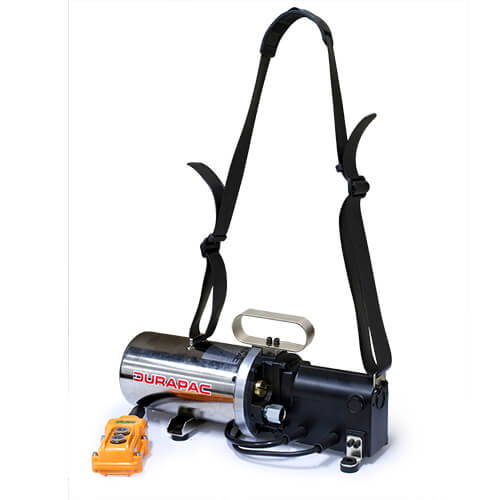

Easily Portable
The power unit is lightweight and easily portable using the shoulder strap and handle.
Optional Pressure Switch
An optional pressure switch allows the cylinder to be stopped at set pressure and return automatically.
Remote Pendant
The remote pendant actuates Advance when ON switch is pressed and the motor starts, auto Retract when ON switch is released.
Safety Valve
The pump features a factory set safety pressure relief valve.
| Model No. | 10 bar Flow Rate (Lpm) | 700 bar Flow Rate (Lpm) | Used with Cylinder | kW | Voltage (1 Ph.) | Hz | Amps | Usable Oil Capacity (L) | Pressure Rating (bar) | Valve Type | Control Switch | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPES3502AR | 2.0 | 0.2 | S/A | 0.35 | 230 | 50/60 | 2.5 | 1.6 | 700 | Internal "Pop Off" valve, Auto Retract type | Remote ON/OFF | 8.4 |
| SPES3502AR-115V | 2.0 | 0.2 | S/A | 0.35 | 115 | 50/60 | 6.0 | 1.6 | 700 | Internal "Pop Off" valve, Auto Retract type | Remote ON/OFF | 8.4 |
| Model No. | 145 psi Flow Rate (in3) | 10,150 psi Flow Rate (in3) | Used with Cylinder | hp | Voltage (1 Ph.) | Hz | Amps | Pressure Rating (psi) | Usable Oil Capacity (gal) | Electric Motor | Valve Type | Control Switch | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPES3502AR-115V | 122.0 | 12.2 | S/A | 0.47 | 115 | 50/60 | 6.0 | 10,150 | 0.4 | Commutator type | Internal "Pop Off" valve, Auto Retract type | Remote ON/OFF | 18.5 |
Piston Rod Speed v Cylinder Capacity (SPE 35 Series)
| Pressure Stage | Oil Flow (Lpm) | 10 Ton (mm per second) | 15 Ton (mm per second) | 20 Ton (mm per second) | 25 Ton (mm per second) | 30 Ton (mm per second) | 50 Ton (mm per second) | 75 Ton (mm per second) | 100 Ton (mm per second) | 150 Ton (mm per second) | 200 Ton (mm per second) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1st | 2.0 | 23.0 | 16.0 | 12.0 | 10.0 | 8.0 | 4.0 | 3.0 | 3.0 | - | - |
| 2nd | 0.2 | 2.0 | 1.6 | 1.2 | 1.0 | 0.8 | 0.4 | 0.3 | 0.3 | - | - |
Piston Rod Speed v Cylinder Capacity (SPE 35 Series)
| Pressure Stage | Oil Flow (in3) | 10 Ton (in per second) | 15 Ton (in per second) | 20 Ton (in per second) | 25 Ton (in per second) | 30 Ton (in per second) | 50 Ton (in per second) | 75 Ton (in per second) | 100 Ton (in per second) |
|---|---|---|---|---|---|---|---|---|---|
| 1st | 122.00 | 0.91 | 0.63 | 0.47 | 0.39 | 0.31 | 0.16 | 0.12 | 0.12 |
| 2nd | 12.20 | 0.08 | 0.06 | 0.05 | 0.04 | 0.03 | 0.02 | 0.01 | 0.01 |
SPE-Series Performance
 |
