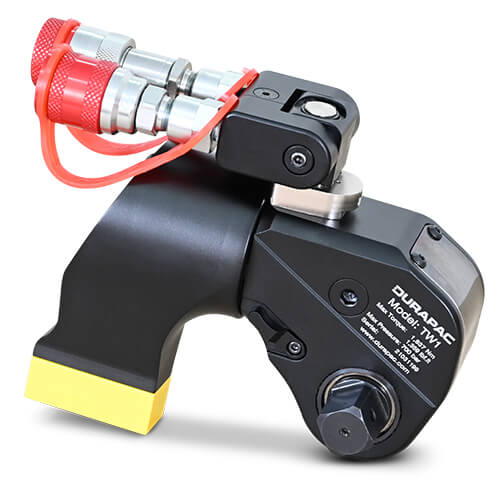

TW-Series Square Drive

The TW-Series Square Drive Hydraulic Torque Wrenches are compact, easy to use and versatile. TW-Series Torque Wrenches are available in ¾" to 2 ½" square drive models, with a torque range from 112 to 72,000 Newton Metres (82 to 53,280 ft/ lbs).

TW5

Strong & Light-Weight

The titanium-aluminium alloy and super high strength steel alloy construction means increased strength and durability while minimising weight.

360º x 180º Swivel

All models are fitted with a 360° x 180º swivel with screw couplings.

Reversible Square Drive

A reversible square drive is used for tightening and loosening applications.

Reaction Pawl Design

Enhanced efficiency and accuracy is achieved by the reaction pawl design.

Accuracy

Accuracy within + / - 3%.

Extended Reaction Arm

An extended reaction arm is available as an optional extra.
TW5
INSTRUCTIONS
SPECIFICATIONS
CATALOGUE
Model No. Square Drive Range of Torque (Nm) @ 700 bar Range of Torque (lbf.ft) @ 700 bar Bolt Size Range (mm) Weight (kg)
TW07 ¾" 112-1,120 82-829 14-30 1.8
TW1 ¾" 183-1,837 135-1,359 16-36 2.5
TW3 1" 451-4,512 334-3,346 22-48 5.0
TW5 1-1/2" 752-7,528 557-5,571 27-56 8.0
TW8 1-1/2" 1,078-10,780 797-7,977 30-64 11.0
TW10 1-1/2" 1,551-15,516 1,148-11,482 36-72 15.0
TW152-1/2" 2,063-20,627 1,521-15,21339-8021.0
TW202-1/2" 2,666-26,664 1,973-19,731 42-90 26.5
TW25 2-1/2" 3,472-34,725 2,569-25,697 48-100 35.0
TW35 2-1/2" 4,866-48,666 3,601-36,013 64-120 50.0
TW502-1/2" 7,200-72,0005,328-53,280 72-12587.0
Please view the catalogue page for product dimensions and drawings.

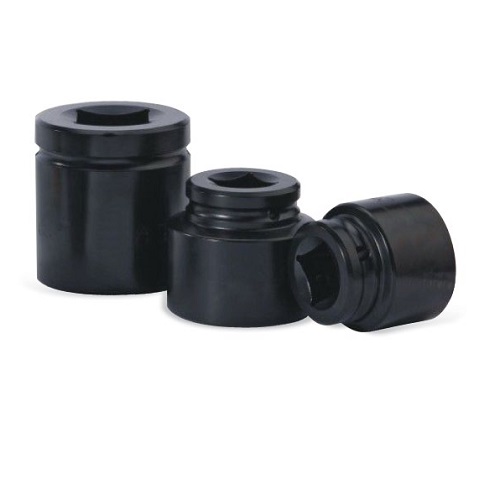

Torque Wrench Couplings

Model No. ImageThread DescriptionSuits Tool Model No.
CH-2 1/8"-NPT Male Male half screw coupling complete with metal dust cap TW07, TW1 , LPC2
CR-2 1/8"-NPT Male Female half screw coupling complete with metal dust capTW07, TW1 , LPC2
CS-2 1/8"-NPT Male Coupling set with metal dust caps
includes CH-2 and CR-2 		TW07, TW1 , LPC2
CH-4 1/4"-NPT Female Male half screw coupling complete with metal dust capTW3 THROUGH TW50 LPC4 THROUGH LPC30
CR-4 1/4"-NPT Male Female half screw coupling complete with metal dust capTW3 THROUGH TW50 LPC4 THROUGH LPC30
CS-4 Coupling set with metal dust caps includes CH-4 and CR-4 TW3 THROUGH TW50 LPC4 THROUGH LPC30
Note - Snap couplings are available. Consult Durapac for further information.

Torque Wrench Hoses

Model No. Length (m)
TWH-04 4
TWH-06 6
TWH-10 10
TWH-15 15
Notes -:
Twin hose set to suit torque wrenches complete with male and female screw couplers at both ends
700 bar working pressure. 2,800 bar min. burst
