A range of cylinder accessories are available, including Base & Piston Rod Clevises, Cylinder Jacking Bases, etc.
BASE CLEVISES
| Model No. | Cylinder Capacity (ton) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Suits Models |
|---|---|---|---|---|---|---|---|---|
| CBC-5 | 5 | 44 | 47 | 14 | 16 | 16 | 25 | RG 5 ton |
| CBC-10 | 10 | 63 | 66 | 25 | 22 | 25 | 35 | RG 10 ton |
| CBC-15 | 15 | 76 | 66 | 25 | 22 | 25 | 35 | RG 15 ton |
| CBC-25 | 25 | 95 | 79 | 38 | 31 | 31 | 41 | RG 25 ton |
PISTON ROD CLEVISES
| Model No. | Cylinder Capacity (ton) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Suits Models |
|---|---|---|---|---|---|---|---|---|---|
| CPC-5 | 5 | 28 | 41 | 14 | 16 | 16 | 19 | 3/4"-16UNF | RG 5 ton |
| CPC-1015 | 10/15 | 42 | 61 | 25 | 22 | 25 | 28 | 1"-8UNC | RG 10/15 ton |
| CPC-25 | 25 | 57 | 74 | 38 | 31 | 31 | 35 | 1 1/2"-16UN | RG 25 ton |

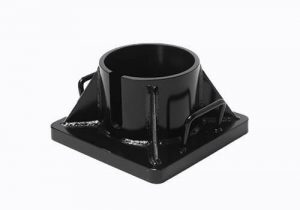

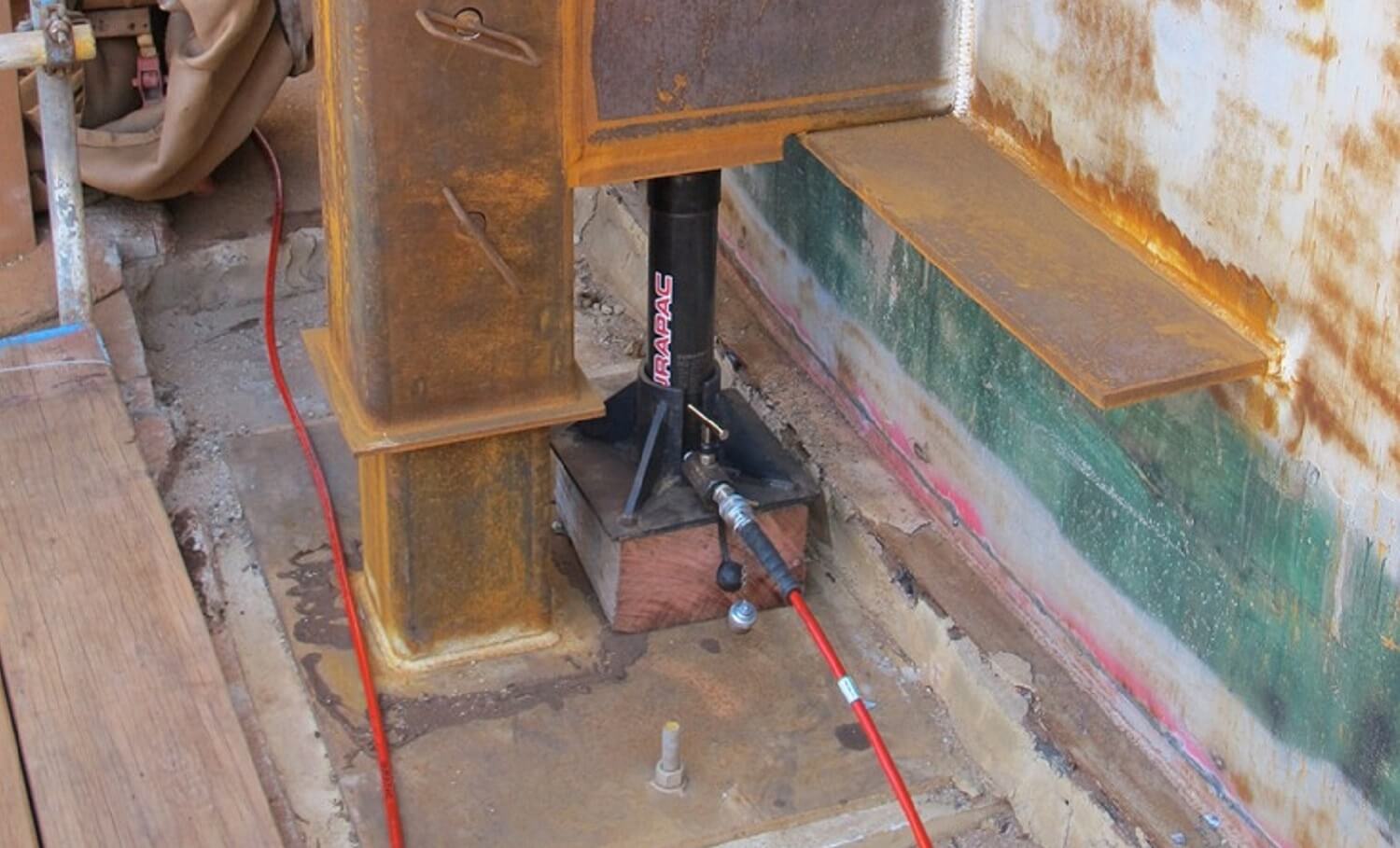

CYLINDER JACKING BASES
| Model No. | Cylinder Capacity (ton) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Suits Models |
|---|---|---|---|---|---|---|---|
| CB-10 | 10 | 228 | 228 | 135 | 58 | 20 | RG 10 ton |
| CB-25 | 25 | 279 | 279 | 140 | 86 | 26 | RG 25 ton |
| CB-50 | 50 | 300 | 300 | 100 | 130 | 41 | RG 50 ton |
| CB-50A | 50 | 300 | 300 | 100 | 128 | 41 | RSLC 50 ton |
MOUNTING BLOCKS
| Model No. | Cylinder Capacity (ton) | A (mm) | B (mm) | C (mm) | D (mm) | Suits Models |
|---|---|---|---|---|---|---|
| CMB-5 | 5 | 1 1/2"-16UN | 88 | 76 | 25 | RG 5 ton |
| CMB-10 | 10 | 2 1/4"-14UN | 114 | 88 | 25 | RG 10 ton |
| CMB-15 | 15 | 2 3/4"-16UN | 101 | 114 | 38 | RG 15 ton |
| CMB-25 | 25 | 3 5/16"-12UN | 127 | 165 | 50 | RG 25 ton |
BASE ATTACHMENT
BASE ATTACHMENT - ZAM1245
THREAD ADAPTOR
THREAD ADAPTOR - ZAM1246

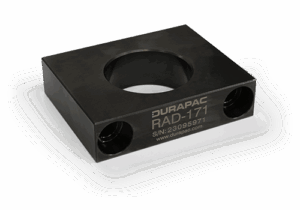

FOOT MOUNTING FOR USE WITH RETAINING NUT
| Model No. | Cylinder Capacity (ton*) | Cylinder Capacity (kN) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | H (mm) | Suits Models |
|---|---|---|---|---|---|---|---|---|---|---|
| RAD-141 | 4 | 35 | 35.1 | 76.2 | 58.0 | 10.5 | 20.0 | 57.0 | 31.8 | RDP 4 ton |
| RAD-171 | 9 | 80 | 50.8 | 101.6 | 78.0 | 13.5 | 25.0 | 82.5 | 44.5 | RDP 9 ton |
| RAD-181 | 16 | 142 | 66.8 | 127.0 | 95.2 | 20.0 | 35.0 | 100.0 | 52.4 | RDP 16 ton |
| RAD-191 | 25 | 222 | 82.6 | 158.8 | 117.5 | 26.5 | 45.0 | 125.0 | 63.5 | RDP 25 ton |

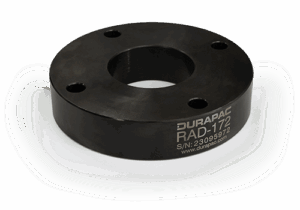

FLANGE MOUNTING FOR USE WITH RETAINING NUT
| Model No. | Cylinder Capacity (ton*) | Cylinder Capacity (kN) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Suits Models |
|---|---|---|---|---|---|---|---|---|
| RAD-142 | 4 | 35 | 35.1 | 98.6 | 78.5 | 10.4 | 19.0 | RDP 4 ton |
| RAD-172 | 9 | 80 | 50.8 | 120.7 | 98.6 | 10.4 | 25.4 | RDP 9 ton |
| RAD-182 | 16 | 142 | 66.8 | 143.0 | 115.9 | 13.5 | 35.0 | RDP 16 ton |
| RAD-192 | 25 | 222 | 82.6 | 165.1 | 135.6 | 16.8 | 44.5 | RDP 25 ton |
OPTIONAL CLEVIS ENDS
Note: 2 x Clevis and Pin Sets required per cylinder
