TTP-Series Track Link Pin Pusher & Installer

The TTP-Series Pin Pusher is specially designed for tracked machines, tractors, loaders, shovels, excavators, etc. It is suitable to use with most modern machines including JCB, Caterpillar, Komatsu and Poclain manufactured track machines.

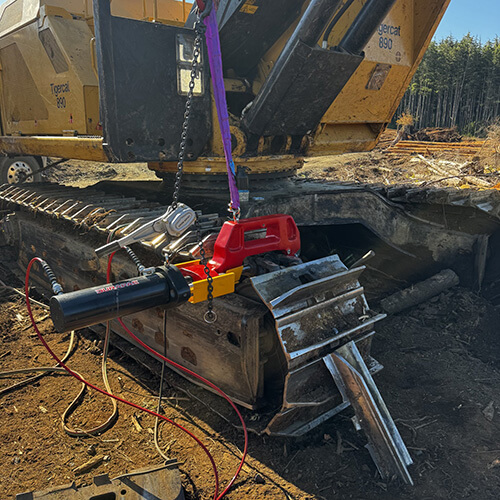

TTP-100

TTP acessories

20T x 12mm stroke flat jack

TTP-100 cropped

Tooling

Each unit is supplied with tooling.

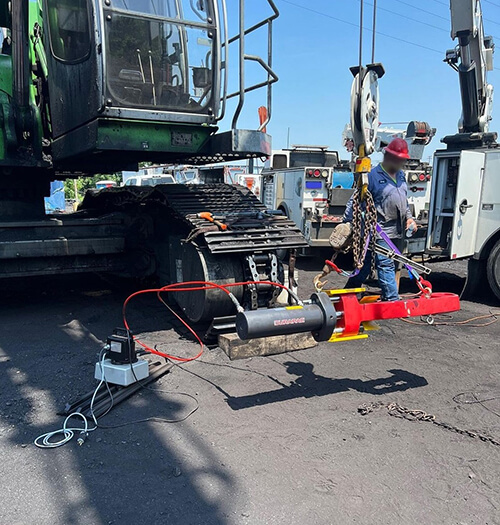

Smooth Operation

Hydraulic force ensures smooth operation, thereby avoiding damage to the components of the track assembly.

Includes

1 x cast steel 'C’ frame, 1 x double acting hydraulic cylinder, 2 x tie rod and 2 x nuts for connecting 'C’ frame and cylinder, 1 x chain lever hoist, 2 x lifting slings and eyebolts for handling, tooling sets, 20T flat jack and storage case.

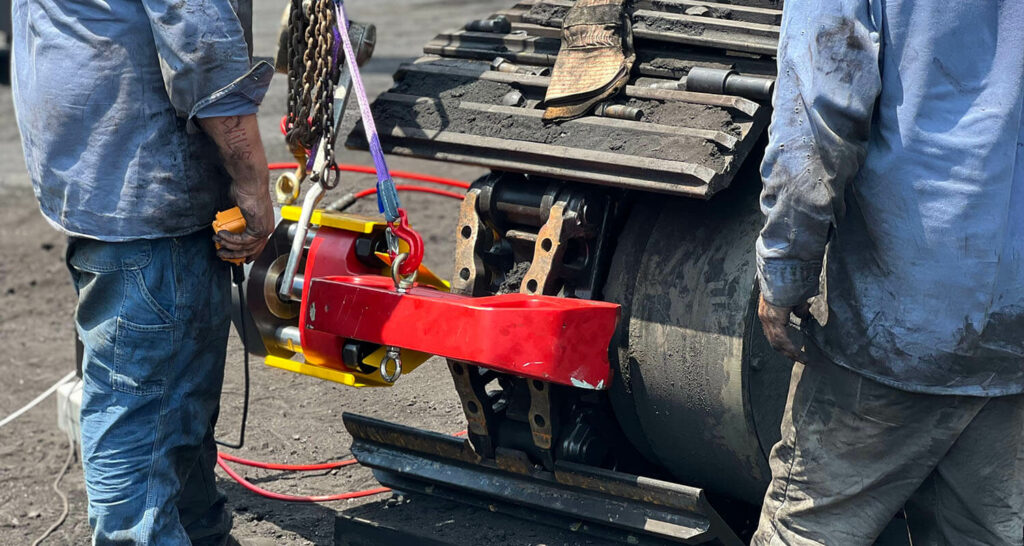

Durability

The 'C’ frame is of cast steel construction and has a 'U’ cut out at the front end where the aligning adaptor is fitted.

Portability

The Track Link Pin Pusher is supplied with a robust storage case to house all components including tooling.

Double Acting Cylinder

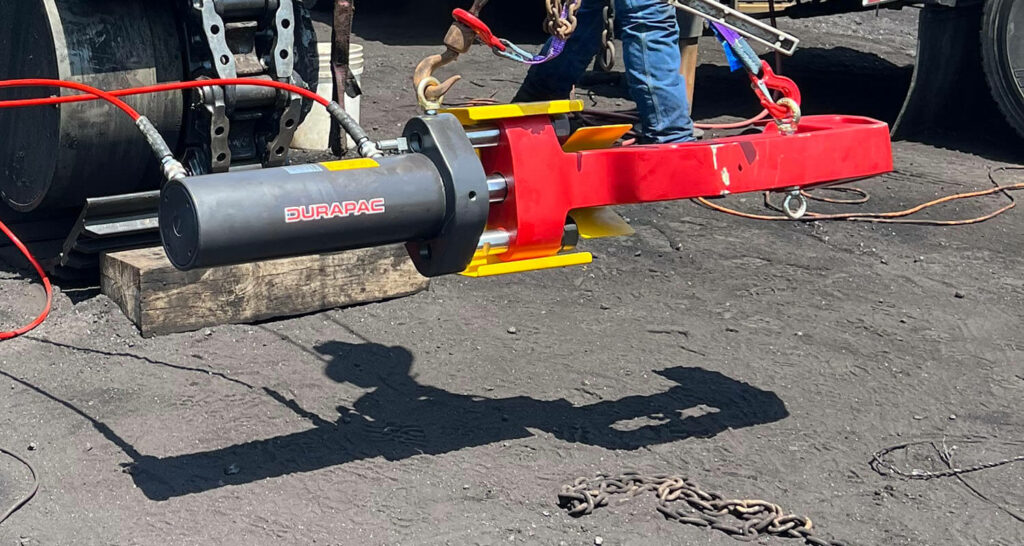

The double acting hydraulic cylinder is made in alloy steel and has long stroke with which the master pin can be pushed or installed in one stroke. Industry standard high flow couplings included.

TTP-100

Model Number	Capacity (ton)	Stroke (mm)	Pressure Rating (bar)	Effective Area (cm²)	Oil Capacity (cc)	Assembly Length (mm)	Approx. Weight (kg)*
TTP-50	50	250	700	70.88	1,772	1,400	85
TTP-100	100	350	700	132.7	4,645	1,750	205
TTP-150	150	350	700	213.8	7,484	2,103	372
TTP-200	200	350	700	283.5	9,923	2,245	630

*Frame & Cylinder Assembly

Shipping Details

Model Number	Approx. Shipping Weight (kg)	Dimensions (cm)
TTP-50	300	L 150 x W 60 x H 65
TTP-100	500	L 170 x W 60 x H 75
TTP-150	700	L 190 x W 75 x H 75
TTP-200	1,100	L 205 x W 95 x H 95

Recommended Pump (Ordered Separately)

Suits Model No.	Pump Type	Pump Model No.	Image
TTP-50, TTP-100	Hand	P-2800D
TTP-50, TTP-100	230V/50/1 Electric with Gauge & Remote Pendant (Standard Supply)	SPEM45054L
TTP-150	230V/50/1 Electric with Gauge & Remote Pendant (Standard Supply)	PEM8414
TTP-200	230V/50/1 Electric with Gauge & Remote Pendant (Standard Supply) 20 Litre Oil Tank	PEM8424
TTP-50	Air Hydraulic	DPA-40D
All TTP models	Air Hydraulic	DPR-174
All TTP models	Petrol	PPM2014

Hydraulic Hoses (Specify Length, Sold Separately)

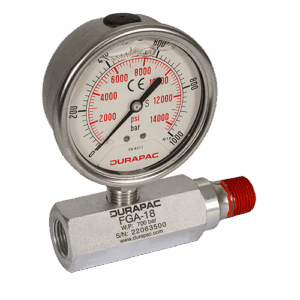

Pressure Gauges (Sold Separately Unless Otherwise Stated)
