Durapac In Line Flow and Pressure Control Valves allow the system designer great flexibility and control.

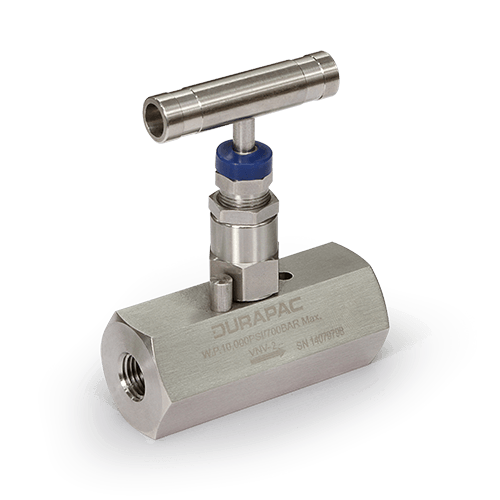

Available options include a needle type flow control valve, in line adjustable pressure relief valve, 2 - 8 outlet needle valve blocks and check valve with manual bypass.

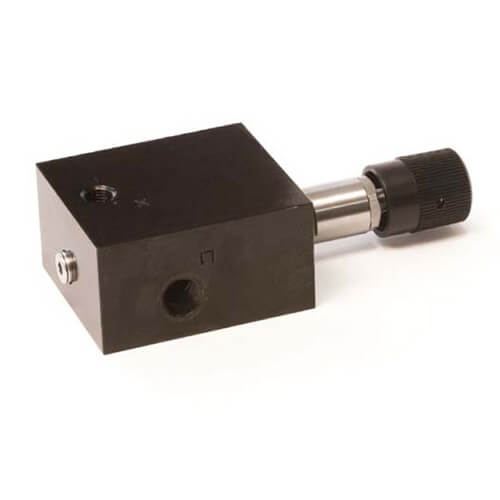

VCB-1 – Load lowering counterbalance valve for smooth controlled lifting and lowering. Pilot pressure adjusting range 50-350 bar. Ports 3/8″-BSP parallel female (pilot port 1/4″-BSP parallel female). Supplied with 2 each 3/8″-BSPP x 3/8″-NPT male nipples

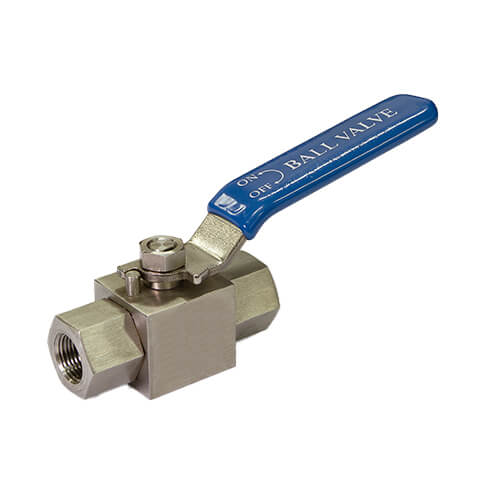

VBV-1 – 3/8″-NPT ball valve, stainless steel with PEEK seats

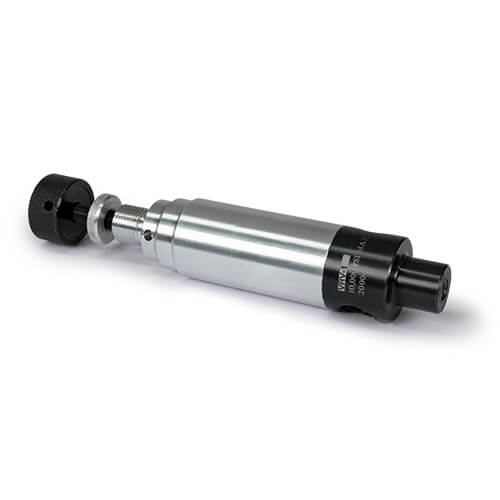

VRV-1 – 3/8″-NPT pressure relief valve, adjustable from 300 – 10,000 psi (drain port is 1/8″-NPT)

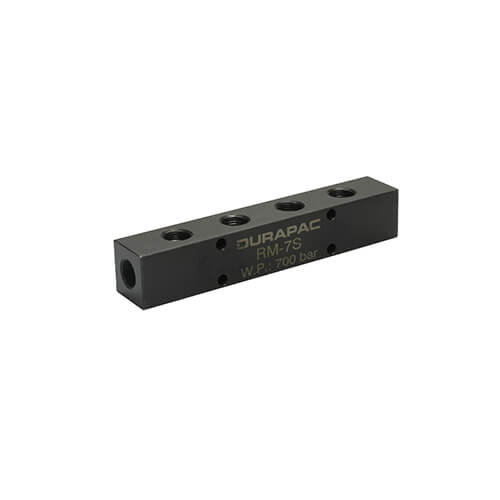

RM-7S – 7 port steel bodied return manifold – 7 x 3/8″-NPT female ports

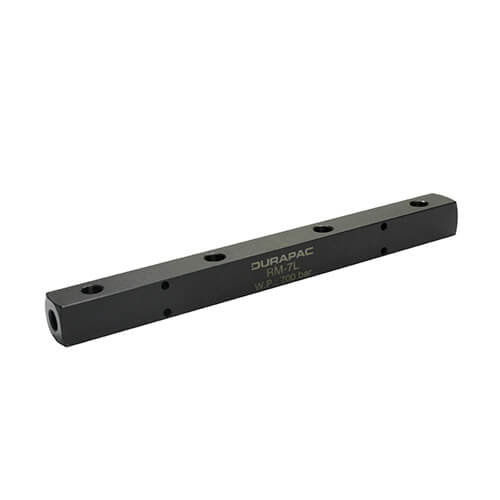

RM-7L – 7 port steel bodied return manifold – 7 x 3/8″-NPT female ports

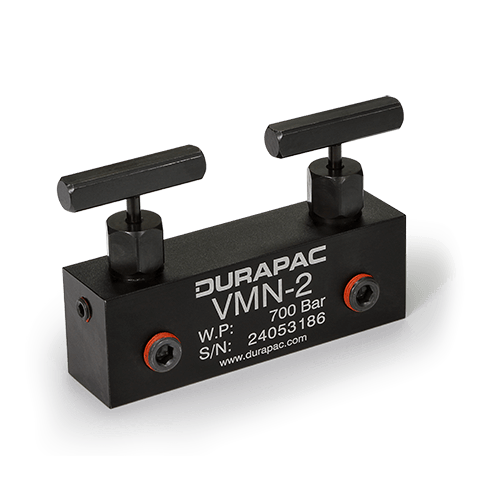

VMN-2 – 2 way aluminium bodied manifold with needle valves – 2 x 3/8″-NPT female outlet ports, 1 x 3/8″-NPT female inlet port (centrally located opposite to the 2 outlet ports). Depth 65 mm, Width 150 mm, Height 105 mm

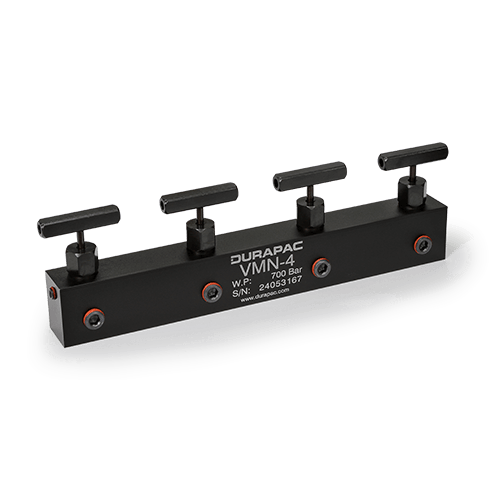

VMN-4 – 4 way aluminium bodied manifold with needle valves – 4 x 3/8″-NPT female outlet ports, 1 x 3/8″-NPT female inlet port (centrally located opposite to the 4 outlet ports). Depth 65 mm, Width 352 mm, Height 105 mm

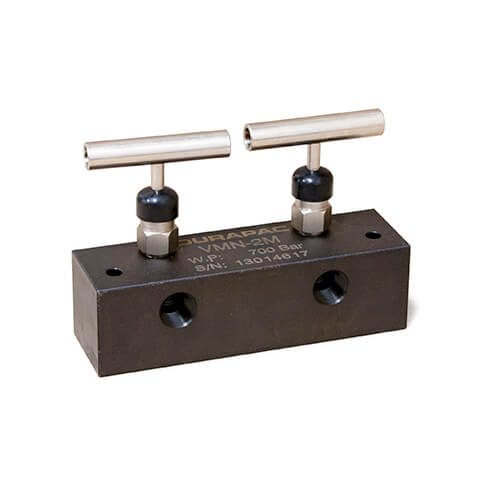

VMN-2M – 2 way steel bodied manifold with needle valves – 2 x 3/8″-NPT female outlet ports, 1 x 3/8″-NPT female inlet port (centrally located opposite to the 2 outlet ports)

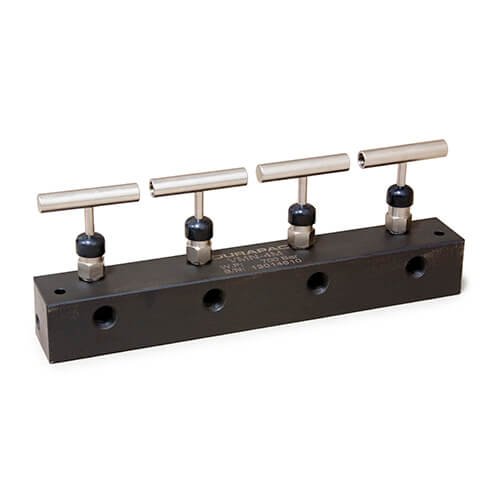

VMN-4M – 4 way steel bodied manifold with needle valves – 4 x 3/8″-NPT female outlet ports, 1 x 3/8″-NPT female inlet port (centrally located opposite to the 4 outlet ports)
VMN-2M-GF – 2 way steel bodied manifold with needle valves 2 x 3/8”-NPT female outlet ports, 1 x 3/8″-NPT female inlet port (centrally located opposite to the 2 outlet ports). Includes FGA-1 Gauge Adapters & PG-63 Gauges
VMN-4M-GF – 4 way steel bodied manifold with needle valves 4 x 3/8”-NPT female outlet ports, 1 x 3/8″-NPT female inlet port (centrally located opposite to the 4 outlet ports). Includes FGA-1 Gauge Adapters & PG-63 Gauges

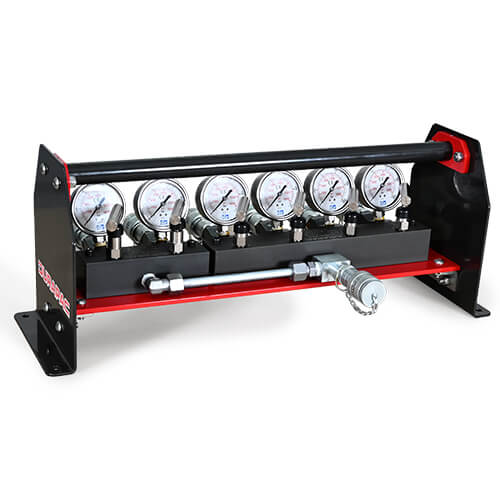

VMN-6M-GF – 6 way steel bodied manifold with needle valves 6 x 3/8”-NPT female outlet ports, 1 x 3/8″-NPT female inlet port (centrally located opposite to the 6 outlet ports). Includes FGA-1 Gauge Adapters & PG-63 Gauges

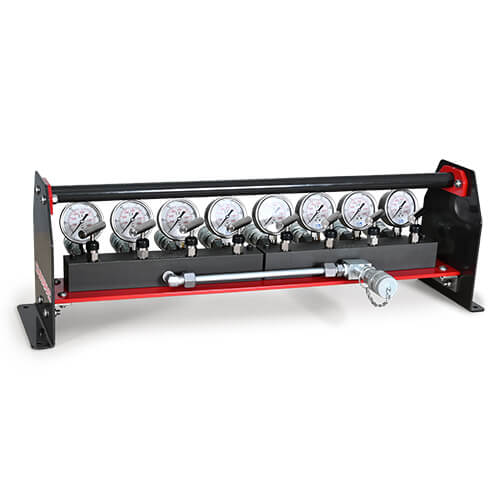

VMN-8M-GF – 8 way steel bodied manifold with needle valves 8 x 3/8”-NPT female outlet ports, 1 x 3/8″-NPT female inlet port (centrally located opposite to the 8 outlet ports). Includes FGA-1 Gauge Adapters & PG-63 Gauges
