The PG-Series Hydraulic Pressure Gauges are recommended for monitoring all hydraulic systems.
Models are available from 63 - 150 mm face diameter and feature high quality stainless steel construction. Analogue models are liquid filled to increase longevity and are accurate to within 1% excluding model PG-63 (1.6%). The battery powered PGD-75 digital pressure gauge can be programmed with a cylinder effective area, quickly set to read in force measurements (kN, tonne, kg) or pressure measurements (bar, psi). It is accurate to within 0.25% and includes pressure peak hold functionality.
PGD-75 – 75 mm diameter, 0-800 bar / 0-11,600 psi, 1/4″-NPT Male
PG-63 – 63 mm diameter, 0-1,000 bar / 0-14,500 psi, 1/4″-NPT Male
PG-100 – 100 mm diameter, 0-1,000 bar / 0-14,500 psi, 1/4″-NPT Male
PG-150 – 150 mm diameter, 0-1,000 bar / 0-14,500 psi, 1/4″-NPT Male
PG-100-40K – 100 mm diameter, 0-2,700 bar / 0-40,000 psi, 9/16″-18UNF Female
PG-100-60K – 100 mm diameter, 0-4,000 bar / 0-60,000 psi, 9/16″-18UNF Female

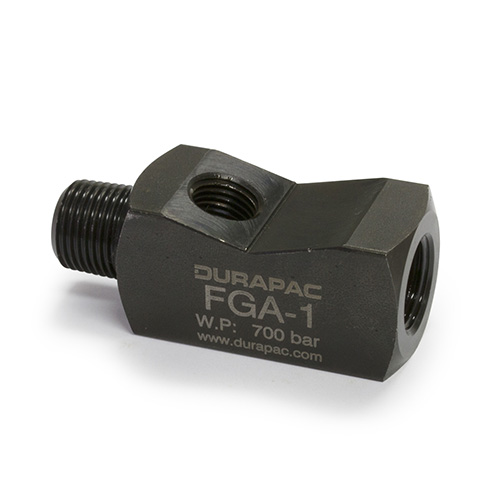

FGA-1 – 3/8″-NPT male x 3/8″-NPT female x 1/4″-NPT female gauge adaptor on 16o angle

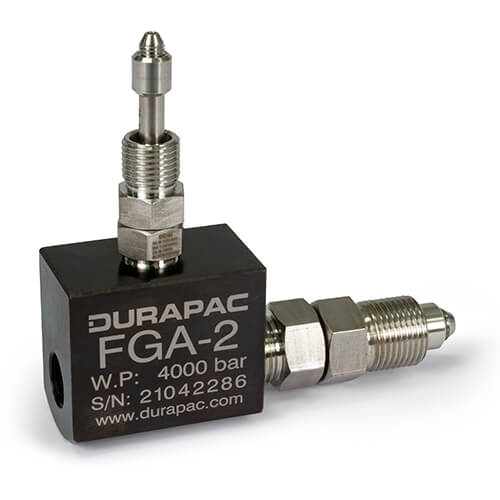

FGA-2 -3/4″-16UNF x 9/16″-18UNF x 9/16″-18UNF 4,000 bar W.P gauge adaptor. Includes connection nipples to suit pressure gauge and hand pump
