ACD-Series D/A, Aluminium

The ACD-Series is a Double Acting, Lightweight, Aluminium Cylinder that is ideal for use in applications where weight and portability are paramount. They are perfect for bridge lifting, machinery maintenance and other non-production applications.

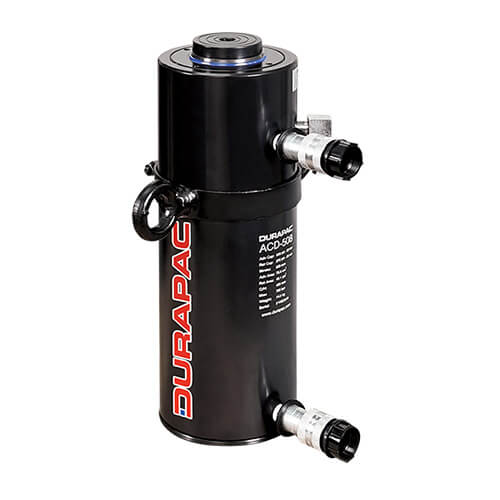

ACD-508

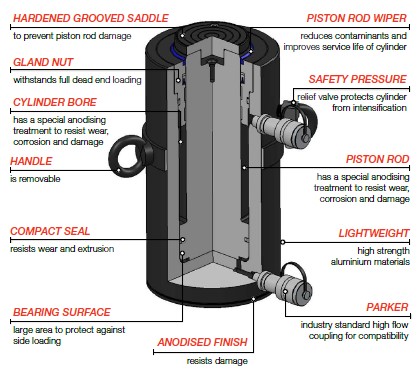

ACD Cross Section

ACD-508

Hardened Grooved Saddle

The grooved saddle is hardened to prevent piston rod damage. Optional tilt saddles are also available.

Gland Nut

The gland nut withstands full dead end loading.

Handle

The handle is removable.

Bearing Surface

The large bearing surface protects against
side loading.

Special Anodising Treatment

The cylinder bore and piston rod have a special anodising treatment to resist damage.

Lightweight

Lightweght, high strength aluminium materials.

ACD-508

Model Number	Cylinder Capacity ton*	Cylinder Capacity Advance kN	Cylinder Capacity Retract kN	Stroke (mm)	Cylinder Effective Area Advance (cm²)	Cylinder Effective Area Retract (cm²)	Oil Capacity Advance (cm³)	Oil Capacity Retract (cm³)	Collapsed Height (mm)	Extended Height (mm)	Outside Diameter (mm)	Cylinder Bore Diameter (mm)	Piston Rod Diameter (mm)	Base to Advance Port (mm)	Top to Return Port (mm)	Standard Saddle Diameter (mm)	Saddle Protrusion from Piston Rod (mm)	Optional Tilt Saddle Model Number	Optional Tilt Saddle Diameter (mm)	Optional Tilt Saddle Height** (mm)	Weight (kg)
ACD-204	20	214	78	100	31.2	11.5	312	115	260	360	95	63	50	25	55	48	15	TSAC-20	50	27	5
ACD-2010	20	214	78	250	31.2	11.5	779	288	430	680	95	63	50	55	55	48	15	TSAC-20	50	27	8.5
ACD-306	30	303	140	150	44.2	20.4	663	295	335	485	100	75	55	25	63	53	18	TSAC-30	55	27	7
ACD-308	30	303	140	200	44.2	20.4	885	393	385	585	100	75	55	25	63	53	18	TSAC-30	55	27	8.5
ACD-506	50	538	275	150	78.5	40.1	1178	360	350	500	135	100	70	25	75	67	18	TSAC-50	74	27	12.5
ACD-508	50	538	275	200	78.5	40.1	1570	480	400	600	135	100	70	25	75	67	18	TSAC-50	74	27	14.5
ACD-1006	100	1056	404	150	153.9	58.9	2309	464	375	525	190	140	110	30	85	106	20	TSAC-100	103	34	27
ACD-1506	150	1558	501	150	227	73	3405	681	390	540	230	170	140	40	85	137	21	TSAC-150	133	40	41
ACD-2006	200	2156	943	150	314.2	137.4	4712	1476	415	565	270	200	150	45	85	146	28	TSAC-200	150	45	58

* Nominal Cylinder Capacity in ton - see kN values for actual capacity
** Total cylinder collapsed height with optional tilt saddle equals (Cylinder Height - Saddle Protrusion + Tilt Saddle Height)

ACD-Series Seal Kits

Seal Kit to Suit	Part Number
ACD 20 TON SERIES	ZAA1072
ACD 30 TON SERIES	ZAA1054
ACD 50 TON SERIES	ZAA1055
ACD 100 TON SERIES	ZAA1056
ACD 150 TON SERIES	ZAA1057
ACD 200 TON SERIES	ZAA1058
