Various Applications
Ideal for operating hydraulic crimpers, cutters, and cylinders for jacking, spreading, and pushing applications.
Ready for Action

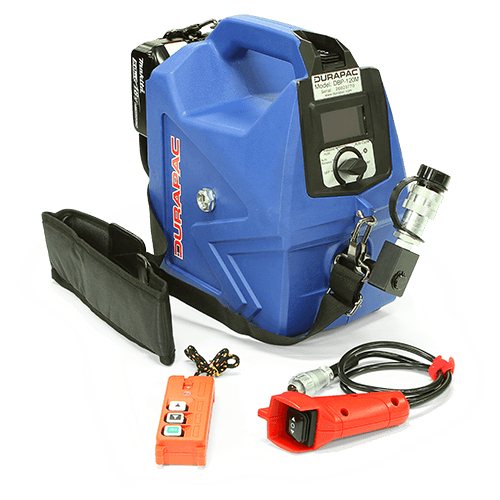

The standard power unit includes a remote pendant, 2 x 18 V batteries, charger, and a shoulder strap. Also includes onboard storage for both Batteries & the Remote Control.
Cable Spiking Option
A wireless remote pendant is also available, for cable spiking and other applications where a wireless remote is preferred.
High Capacity Li-ion Batteries
Operates with powerful, high-capacity Lithium-ion batteries featuring individual capacity detection for A and B batteries.
OLED Display
OLED display for pump pressure, battery capacity & maintenance warning alerts.
Safety Features
Buzzer alert sounds if action is incomplete or failed & losing pressure. Emergency pressure release button. Onboard Operation Switch is deactivated while being operated by Remote Control.
| Model Number | Min. Flow Rate Low Pressure (L/min) | Min. Flow Rate High Pressure (L/min) | Oil Capacity (cc) | Pressure Rating (bar) | Battery (Volt/Ah) | Control Switch | Dimensions W x L x H (mm) | Weight with 2 x Batteries^ (kg) | Weight without Battery (kg) |
|---|---|---|---|---|---|---|---|---|---|
| DBP-120M | 1.6 | 0.36 | 1,500 | 700 | 18 / 4.0 | Onboard Switch or Remote Pendant+ | 203 x 280 x 330 | 9.0 | 7.5 |
^ Add 0.2 kg for Standard Remote & 0.35 kg for both Remotes
