Guillotine-Type Cutting
Superior guillotine-type cutting and a flip-top latch allows for easy insertion of cutting material.
Two Stage Pump
Incorporates a two stage pump.
Easily Replaced Blades
The blades are easily replaceable.
180° Rotation
Spring return and a 180° rotating head.
Ease of Use
They are compact, lightweight, easy to use.
Heavy Duty Carry Bag
They are supplied in a heavy duty canvas carry bag.
| Model No. | Operation | Wire Rope 6x7 (mm) | Wire Rope 6x12 (mm) | Wire Rope 6x19 (mm) | Soft Steel Bar (mm) | Reinforcing Rod (mm) | Copper Cable (mm) | Aluminium Cable (mm) | ACSR (mm) | Guy Wire 1x7 (mm) | Guy Wire 1x19 (mm) | CCP Cable (mm) | Max. Pressure (bar) | Oil Required (cc) | Max. Output (ton) | Cylinder Stroke (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

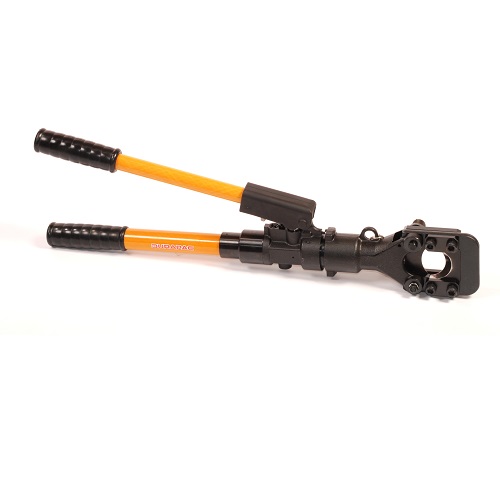

| HC-45S | Self-contained | 22 | 25 | 25 | 20 | 16 | 45 | 45 | 45 | 16 | 20 | - | 700 | 145 | 10.0 | 50.0 | 7.0 |
