Tooling
Each unit is supplied with tooling.

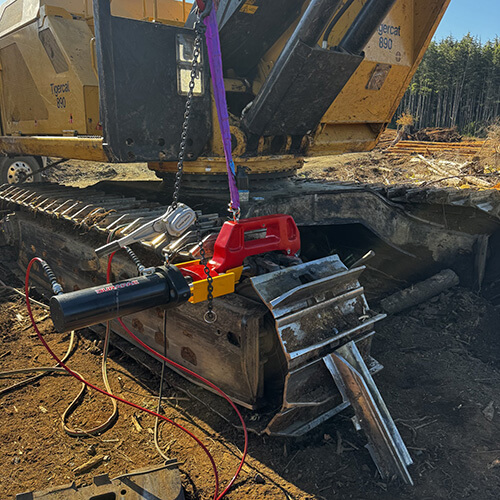

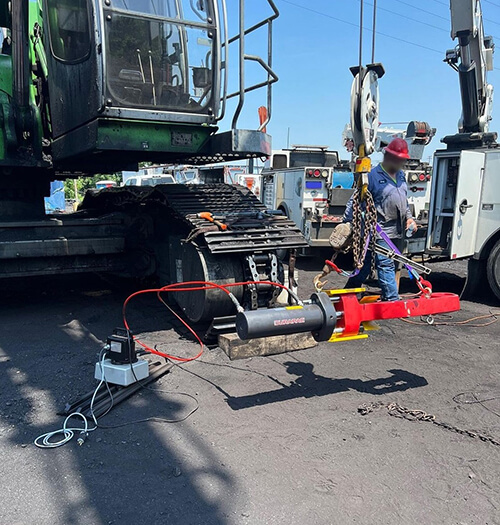

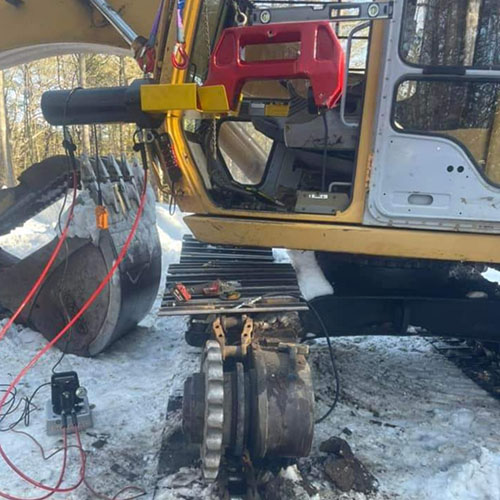

Smooth Operation

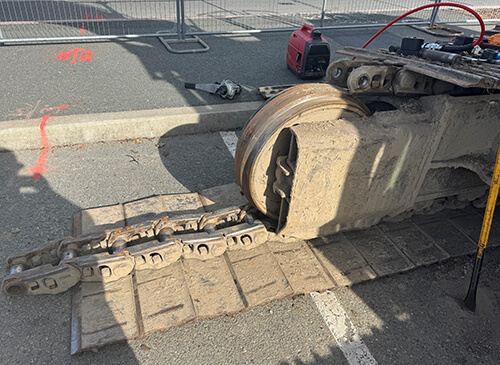

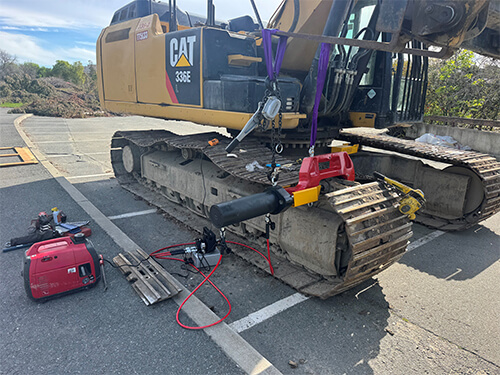

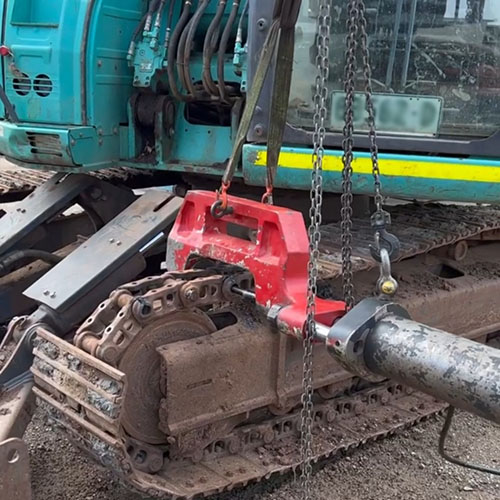

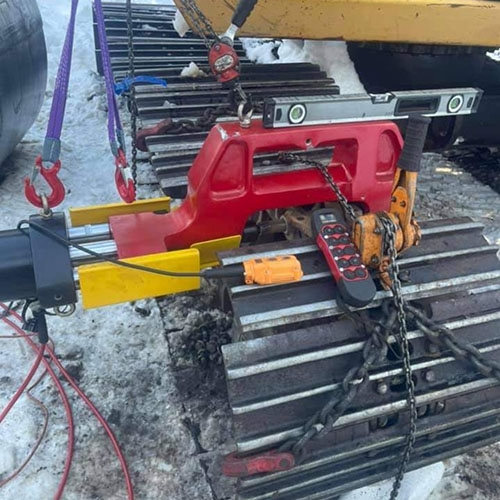

Hydraulic force ensures smooth operation, thereby avoiding damage to the components of the track assembly.
Includes

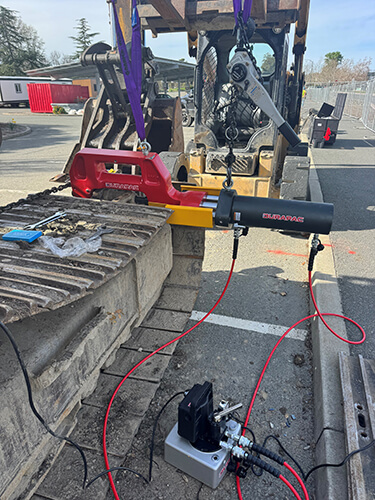

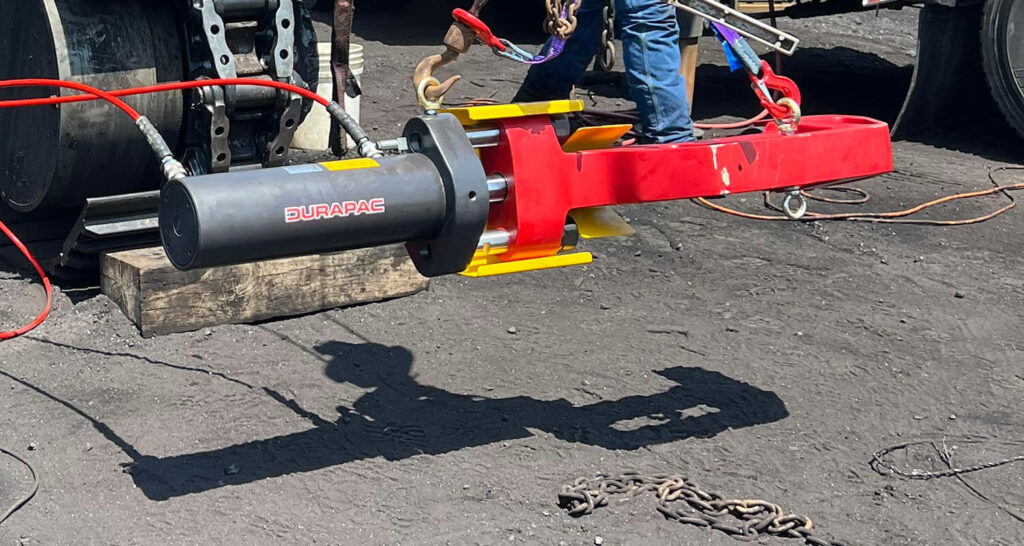

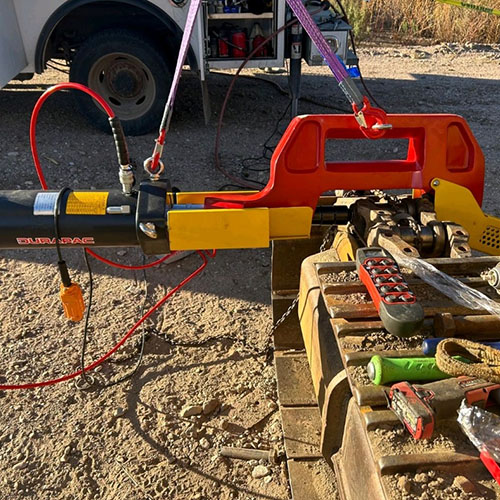

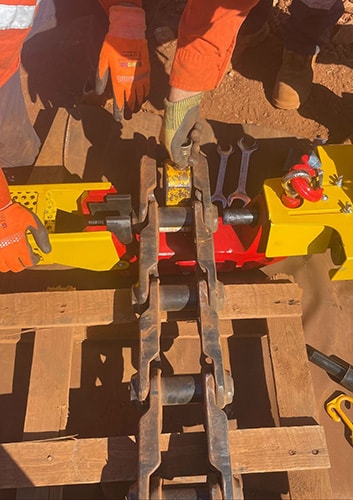

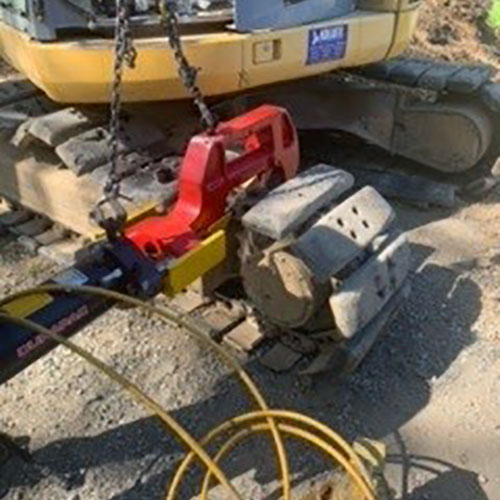

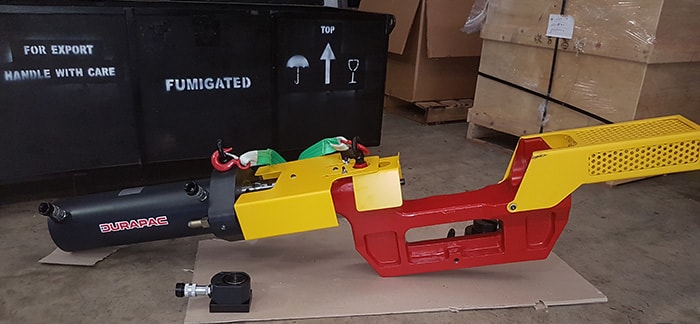

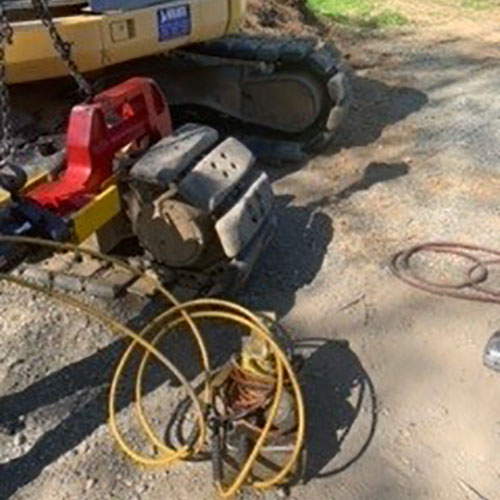

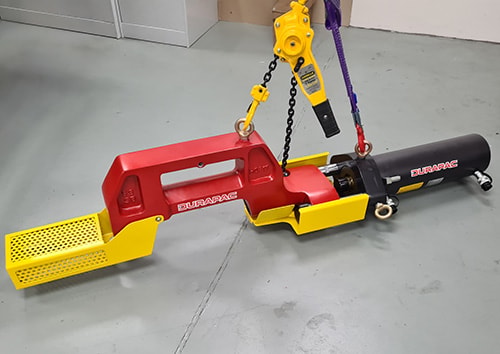

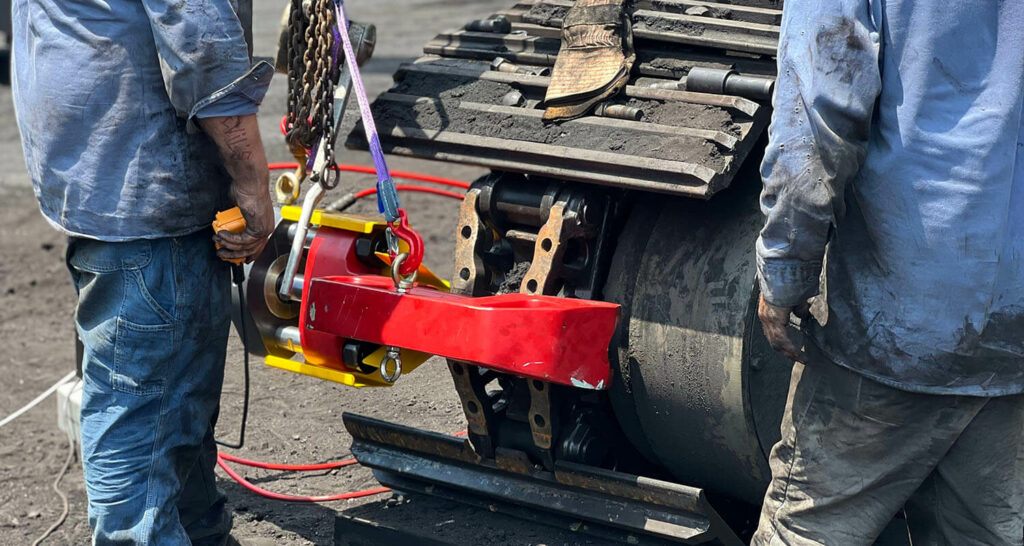

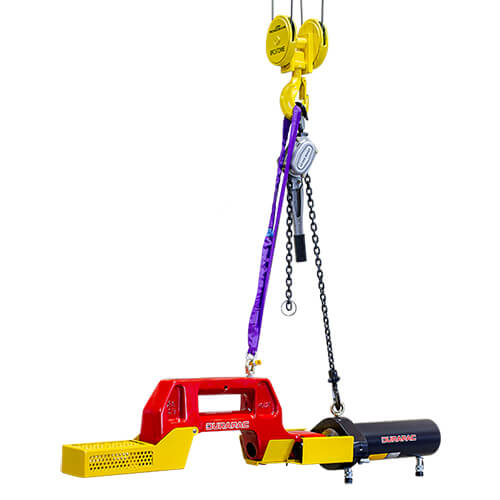

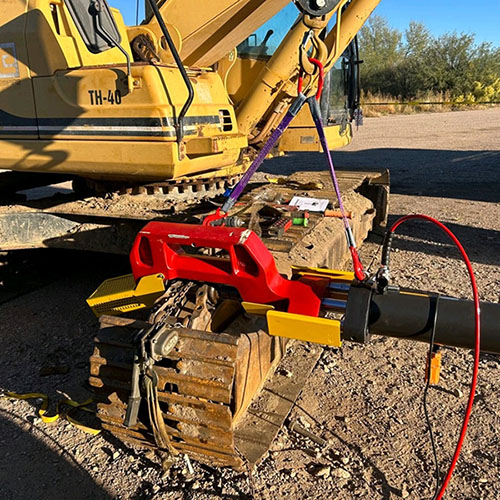

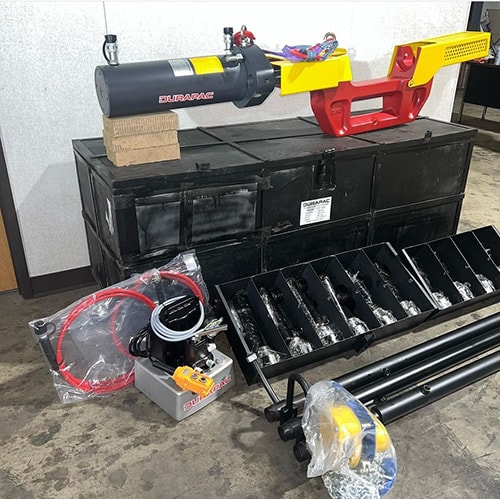

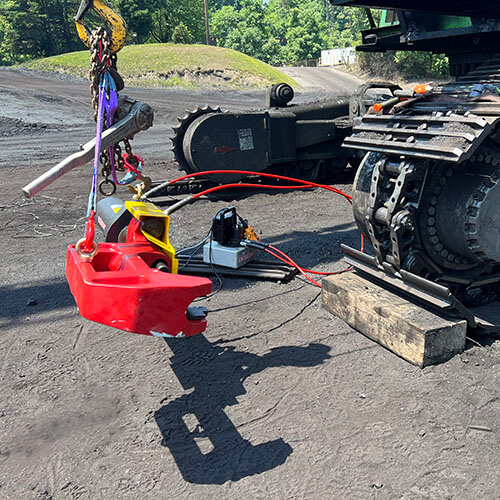

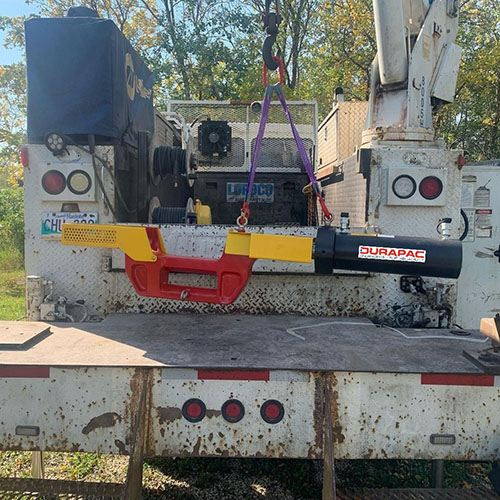

1 x cast steel 'C’ frame, 1 x double acting hydraulic cylinder, 2 x tie rod and 2 x nuts for connecting 'C’ frame and cylinder, 1 x chain lever hoist, 2 x lifting slings and eyebolts for handling, tooling sets, 20 T flat jack and storage case.
Durability

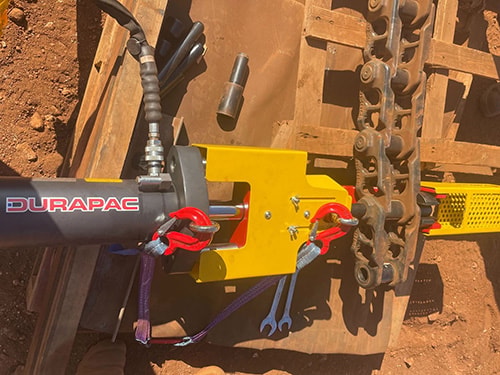

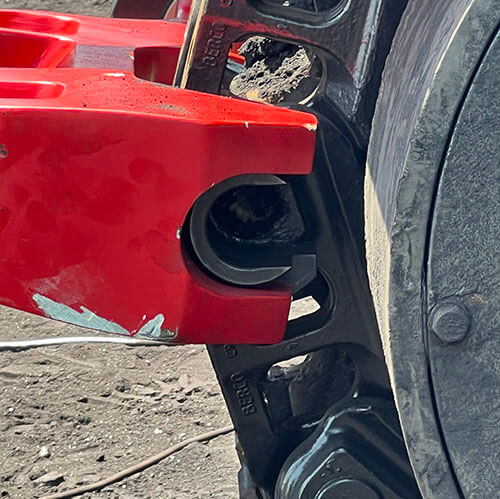

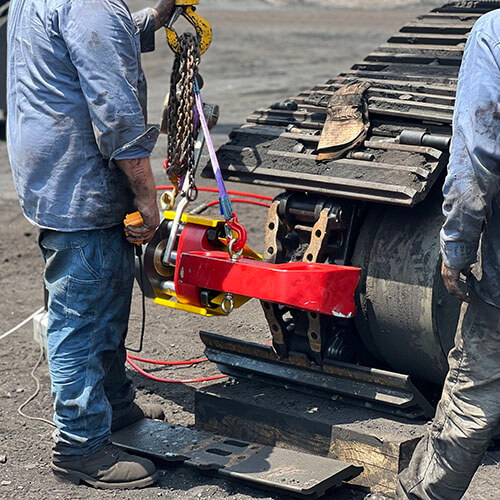

The 'C’ frame is of cast steel construction and has a 'U’ cut out at the front end where the aligning adaptor is fitted.
Portability

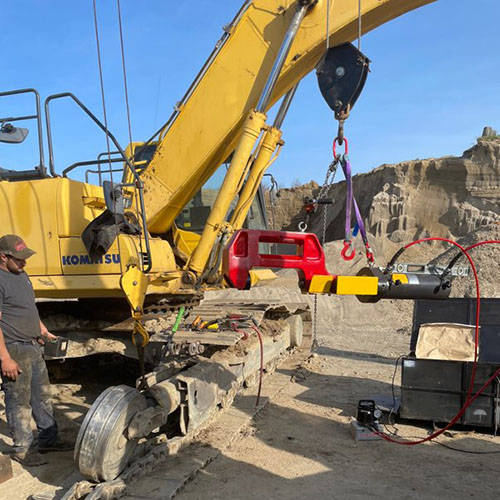

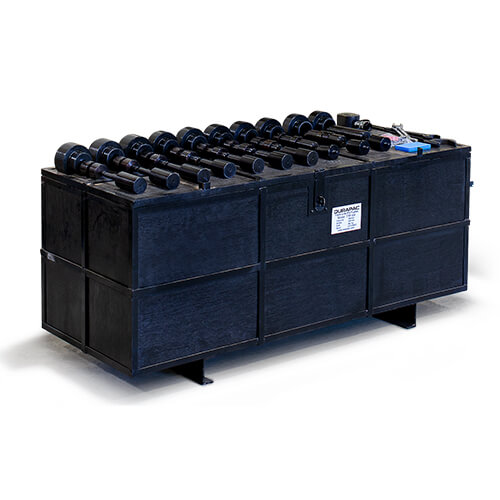

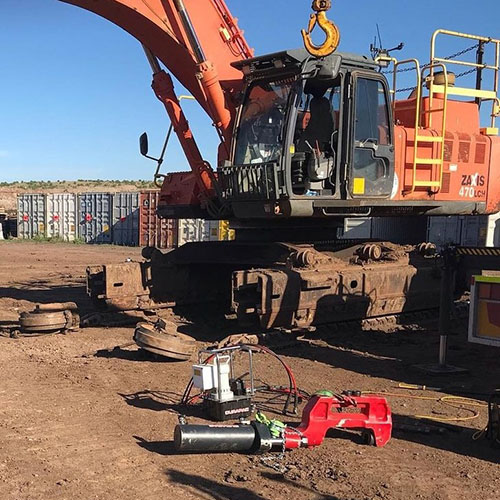

The Track Link Pin Pusher is supplied with a robust storage case to house all components including tooling.

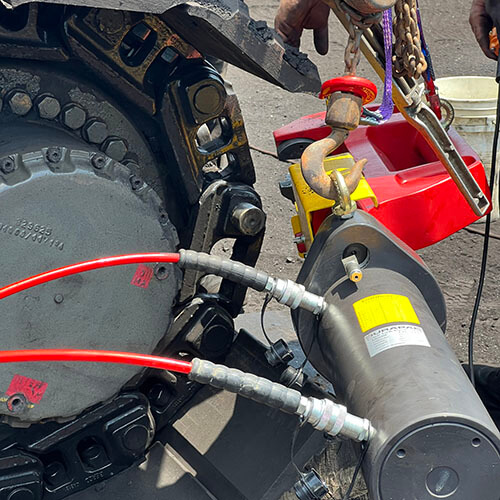

Double Acting Cylinder
The double acting hydraulic cylinder is made in alloy steel and has long stroke with which the master pin can be pushed or installed in one stroke. Industry standard high flow couplings included.
| Model Number | Capacity (ton) | Stroke (mm) | Pressure Rating (bar) | Effective Area (cm2) | Oil Capacity (cc) | Assembly Length (mm) | Weight (kg)* | Approx. Shipping Weight (kg) | Dimensions W x L x H (cm) |
|---|---|---|---|---|---|---|---|---|---|
| TTP-50 | 50 | 250 | 700 | 70.88 | 1,772 | 1,400 | 85 | 300 | 60 x 150 x 65 |
| TTP-100 | 100 | 350 | 700 | 132.70 | 4,645 | 1,750 | 205 | 500 | 60 x 170 x 75 |
| TTP-150 | 150 | 350 | 700 | 213.80 | 7,484 | 2,103 | 372 | 700 | 75 x 190 x 75 |
| TTP-200 | 200 | 350 | 700 | 283.50 | 9,923 | 2,245 | 630 | 1,100 | 95 x 205 x 95 |
Recommended Pump (Ordered Separately)
| Suits Model No. | Pump Type | Pump Model No. | Image |
|---|---|---|---|
| TTP-50, TTP-100 | Hand | P-2800D |  |
| TTP-50, TTP-100 | 230V (or 115V), 50/60 Hz, 1 Ph.* Electric with Gauge & Remote Pendant (Standard Supply) | SPEM45054L SPEM45054L-115V* |  |
| TTP-150 | 230V (or 115V), 50/60 Hz, 1 Ph.* Electric with Gauge & Remote Pendant (Standard Supply) | PEM8414 PEM8414-115V* |  |
| TTP-200 | 230V (or 115V), 50/60 Hz, 1 Ph.* Electric with Gauge, Remote Pendant & 20 L Oil Tank | PEM8424 PEM8424-115V* |  |
| TTP-50 | Air Hydraulic | DPA-40D |  |
| All TTP models | Air Hydraulic | DPR-174 |  |
| All TTP models | Petrol | PPM2014 |  |
Hydraulic Hoses (Specify Length, Sold Separately)
Pressure Gauges (Sold Separately Unless Otherwise Stated)
TTP Accessory Options - Suits All TTP Models
| Accessory Model Number | Image | Description |
|---|---|---|
| HPS-0603CR |  | 3 M Red Hose with CH-6 Male Coupling one end and 3/8"-NPT Male thread at the other end. (2 required, 2 x HPS-0603CR should be ordered) |
| HPS-0606CR | | 6 M Red Hose with CH-6 Male Coupling one end and 3/8"-NPT Male thread at the other end. (2 required, 2 x HPS-0606CR should be ordered) |
| FGA-18 + PG-63** |  | Gauge Adaptor (3/8"-NPT male x 3/8"-NPT female x 1/4"-NPT female) plus Pressure Gauge (63 mm diam. 0-1,000 bar / 0-14,500 psi 1/4"-NPT male |
