PAMH-Series Bolt Tensioning Power Units

The PAMH-Series Bolt Tensioning Power Units are perfectly designed for bolt tensioning applications utilising DURAPAC® DBT-Series Bolt Tensioners at 1,500 bar. The PAMH1514 is a lightweight single acting pump suited to applications where air is the preferred power source.

PAMH1514 Back

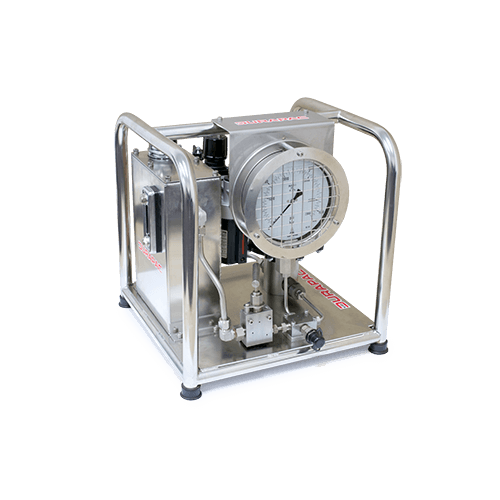

PAMH1514 Front

PAMH-1514_Front_NO-SHADOW

Stainless Steel Base and Frame

Stainless steel base and frame resists corrosion and allows for easy handling.

Liquid Filled Pressure Gauge

Liquid filled pressure gauge range is 0-1,600 bar / 0-23,000 psi.

Sight Glass

Sight glass incorporating a temperature gauge.

Filter, Regulator & Lubricator

Filter, regulator and lubricator with gauge are supplied on the air inlet.

Stainless Steel Reservoir

The stainless steel reservoir has 5.6 litres of usable oil.

Oil Outlet

The oil outlet is fitted with a 1/4" DBT116M quick release nipple.

PAMH1514

Model Number	Used with Cylinder	Pressure Rating (bar)	Compression Ratio	Oil Flow (cm³/stroke)	Air Pressure Range (bar)	Air Consumption (Lpm)	Oil Port Thread	Oil Capacity (L)	Dry Weight (kg)
PAMH1514	S/A	1,500	1:310	1.2	5-7	793	G 1/4"	5.6	25
