Australian Designed and Built
Australian designed and built to meet AS/NZS 2693:2007 standard for vehicle jacks, it also meets AS/NZS 2538:2004 standard for vehicle support stands.
Globally Patented Technology
Supported and serviced through local distribution and service partners in all major markets.

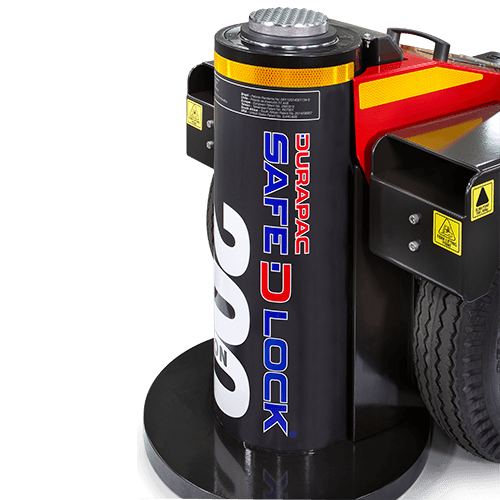

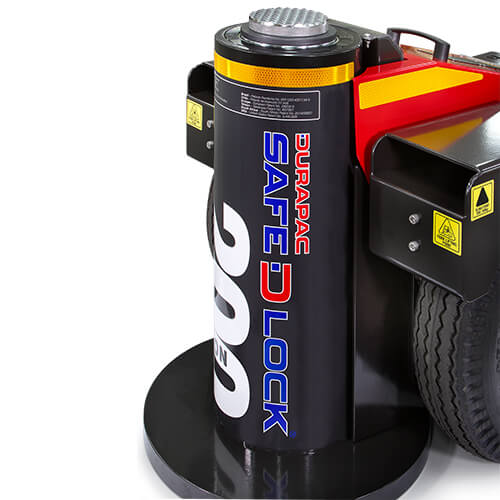

Mechanical Quadrant Locks
Hold a minimum 3 x rated jack capacity without failure.

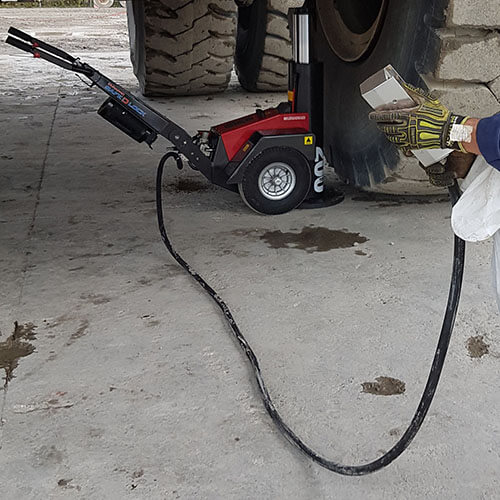

Aluminium Remote Pendant

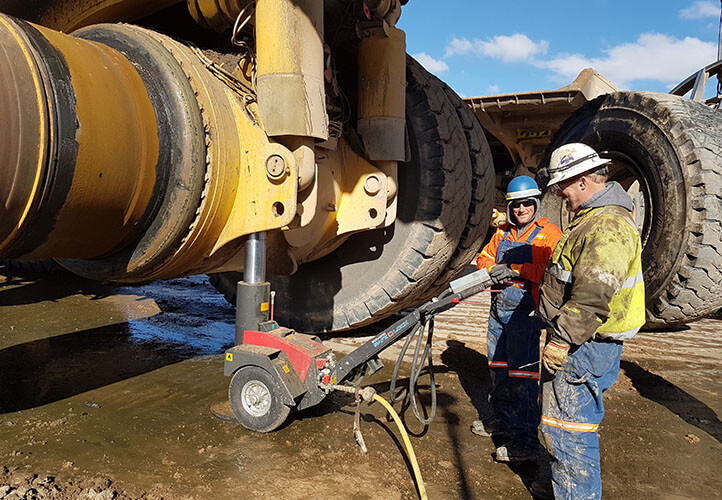

Lock and unlock remotely. A 5 metre long remote lead allows the operator to be safely away from the lifting area during lifting lowering and locking. A magnetized back allows the Remote Pendant to be attached to the side of the truck or SDL, allowing free hands for other work.

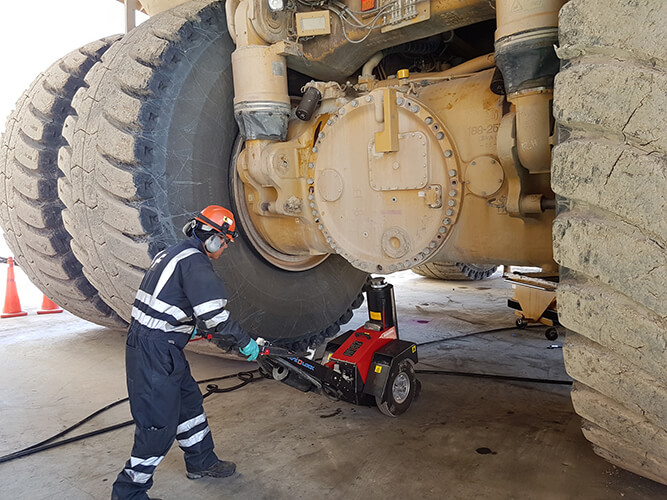

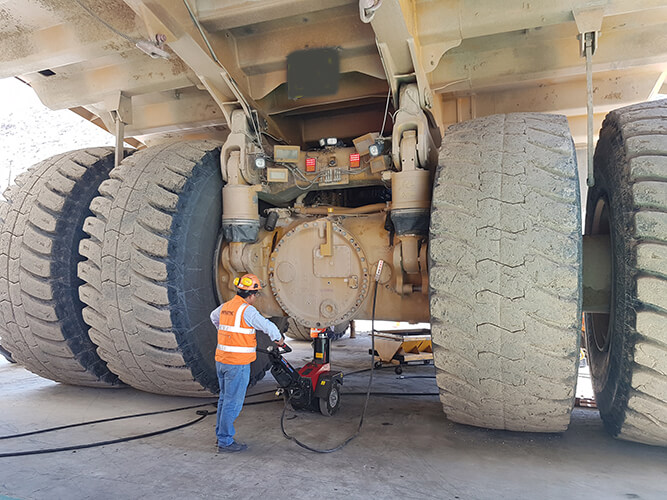

+ POWERDRIVE
Dual independent DC motors powered
by two M18 Red Lithium™ batteries drive the wheels and can self-propel up slopes of 5 degrees.
Controlled Load Lowering
A counterbalance valve allows for smooth, controlled lowering of the load.
| Model Number | Jack Capacity Metric (tonne) | Jack Capacity US (ton)* | Jack Capacity (kN) | Cylinder Effective Area (cm2) | Collapsed Height (mm)** | Stroke (mm) | Maximum Lift Height (mm)*** | Oil Tank Capacity (L) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SDL-07068-PD | 70 | 77 | 686 | 143 | 680 | 404 | 1,408 | 24 | 390 |
| SDL-07081-PD | 70 | 77 | 686 | 143 | 812 | 535 | 1,680 | 24 | 420 |
| SDL-10068-PD | 100 | 110 | 980 | 143 | 680 | 404 | 1,408 | 24 | 390 |
| SDL-10081-PD | 100 | 110 | 980 | 143 | 812 | 535 | 1,680 | 24 | 420 |
| SDL-15068-PD | 135 | 150 | 1,324 | 254 | 680 | 400 | 1,408 | 24 | 470 |
| SDL-15096-PD | 135 | 150 | 1,324 | 254 | 964 | 685 | 1,680 | 24 | 550 |
| SDL-20068-PD | 181 | 200 | 1,781 | 254 | 680 | 400 | 1,408 | 24 | 470 |
| SDL-20096-PD | 181 | 200 | 1,781 | 254 | 964 | 685 | 1,680 | 24 | 550 |
| SDL-20096-PD-620 | 181 | 200 | 1,781 | 254 | 960 | 685 | 2,100 | 24 | 590 |
* Nominal Cylinder Capacity in ton - see kN values for actual capacity
** Includes load cap height of 22 mm
*** Maximum lift height for AS/NZS 2538:2004 Vehicle Support Stand Rating
Optional Extensions, Tilt Saddles & Load Caps
| Model Number | Capacity (Tons) | Description | Diameter (mm) | Height (mm) | Spigot Depth (mm) | Spigot Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| SDE100-100 | 70/100 | 100 mm Extension | 126 | 100 | 60 | 50 | 7 |
| SDE100-150 | 70/100 | 150 mm Extension | 126 | 150 | 60 | 50 | 7 |
| SDE100-200 | 70/100 | 200 mm Extension | 126 | 200 | 60 | 50 | 7 |
| SDE100-300 | 70/100 | 300 mm Extension | 126 | 300 | 60 | 50 | 13 |
| SDE100-400 | 70/100 | 400 mm Extension | 126 | 400 | 60 | 50 | 13 |
| SDLC-100 | 70/100 | Serrated Steel Load Cap * | 112 | 22 | 60 | 50 | 3 |
| SDS-100N | 70/100 | Serrated Tilt Saddle | 108 | 50 | 60 | 50 | 5 |
| SDE150-150 | 150 | 150 mm Extension | 126 | 150 | 60 | 50 | 7 |
| SDE150-200 | 150 | 200 mm Extension | 126 | 200 | 60 | 50 | 7 |
| SDE150-250 | 150 | 250 mm Extension | 126 | 250 | 60 | 50 | 7 |
| SDE150-300 | 150 | 300 mm Extension | 126 | 300 | 60 | 50 | 13 |
| SDE150-350 | 150 | 350 mm Extension | 126 | 350 | 60 | 50 | 13 |
| SDLC-150 | 150 | Serrated Steel Load Cap * | 126 | 22 | 60 | 50 | 3 |
| SDS-150/200N | 150/200 | Serrated Tilt Saddle | 126 | 59 | 60 | 50 | 5 |
| SDE200-100 | 200 | 100mm Extension | 141 | 100 | 60 | 50 | 8 |
| SDE200-150 | 200 | 150mm Extension | 141 | 150 | 60 | 50 | 8 |
| SDE200-200 | 200 | 200 mm Extension | 141 | 200 | 60 | 50 | 15 |
| SDE200-300 | 200 | 300 mm Extension | 141 | 300 | 60 | 50 | 15 |
| SDE200-400 | 200 | 400 mm Extension | 141 | 400 | 60 | 50 | 15 |
| SDE200-500 | 200 | 500 mm Extension | 141 | 500 | 60 | 50 | 15 |
| SDLC-200 | 200 | Serrated Steel Load Cap* | 126 | 22 | 60 | 50 | 4 |
WARNING - Do not stack extensions
