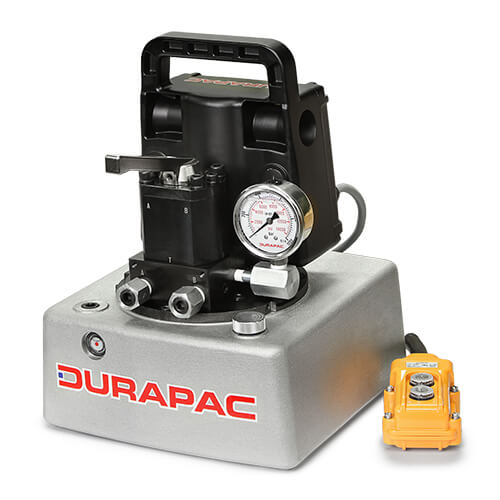

SPEM45054L – 4 Way Manual Valve – D/A

The SPEM45054L 45 Series, Electric Hydraulic Power Unit delivers 2.5 Lpm up to 70 bar and 0.35 Lpm up to 700 bar pressure on double acting cylinders and tools.

SPEM45054L

Power

The power unit is driven by a 0.45 kW, 115 or 230 Volt, 50/60 Hz single phase electric motor.

Multi Purpose

Ideal for lifting and maintenance applications.

Easily Portable

The power unit is lightweight, easily portable and has a carry handle integrated into the shroud.

Optional Pressure Switch

An optional pressure switch allows the cylinder to be stopped at a set pressure.

Pump Function

4 way manual valve to actuate Advance/Hold/Retract functions.

Remote Pendant

Motor ON/OFF function.

SPEM45054L

Model No.	70 bar Flow Rate (Lpm)	700 bar Flow Rate (Lpm)	Used with Cylinder	kW	Voltage (1 Ph.)	Hz	Amps	Usable Oil Capacity (L)	Pressure Rating (bar)	Valve Type	Remote Pendant Function 2.5 M	Weight (kg)
SPEM45054	2.5	0.35	D/A	0.45	230	50/60	4.5	2	700	4w/3p Manual	MOTOR ON/OFF	18.1
SPEM45054L	2.5	0.35	D/A	0.45	230	50/60	4.5	4	700	4w/3p Manual	MOTOR ON/OFF	19.6
SPEM45054-115V	2.5	0.35	D/A	0.45	115	50/60	11.0	2	700	4w/3p Manual	MOTOR ON/OFF	18.1
SPEM45054L-115V	2.5	0.35	D/A	0.45	115	50/60	11.0	4	700	4w/3p Manual	MOTOR ON/OFF	19.6

Model No.	1,015 psi Flow Rate (in³)	10,150 psi Flow Rate (in³)	Used with Cylinder	hp	Voltage (1 Ph.)	Hz	Amps	Valve Type	Usable Oil Capacity (gal)	Pressure Rating (psi)	Remote Pendant Function 8 ft	Weight (lbs)
SPEM45054-115V	152.50	21.35	D/A	0.6	115	50/60	11.0	4w/3p Manual	0.5	10,150	MOTOR ON/OFF	39.9
SPEM45054L-115V	152.50	21.35	D/A	0.6	115	50/60	11.0	4w/3p Manual	1.0	10,150	MOTOR ON/OFF	43.1

Piston Rod Speed v Cylinder Capacity (SPE 45 Series)

Pressure Stage	Oil Flow (Lpm)	10 Ton (mm per second)	15 Ton (mm per second)	20 Ton (mm per second)	25 Ton (mm per second)	30 Ton (mm per second)	50 Ton (mm per second)	75 Ton (mm per second)	100 Ton (mm per second)	150 Ton (mm per second)	200 Ton (mm per second)
1st	2.5	29.0	21.0	15.0	13.0	10.0	5.0	4.0	3.0	2.1	1.6
2nd	0.35	4.0	3.0	2.0	2.0	1.4	0.8	0.6	0.4	0.3	0.2

- not recommended

Piston Rod Speed v Cylinder Capacity (SPE 45 Series)

Pressure Stage	Oil Flow (in³)	10 Ton (in per second)	15 Ton (in per second)	20 Ton (in per second)	25 Ton (in per second)	30 Ton (in per second)	50 Ton (in per second)	75 Ton (in per second)	100 Ton (in per second)	150 Ton (in per second)	200 Ton (in per second)
1st	152.50	1.14	0.83	0.59	0.51	0.39	0.20	0.16	0.12	0.08	0.06
2nd	21.35	0.16	0.12	0.08	0.08	0.06	0.03	0.02	0.02	0.01	0.01

- not recommended
