Tall SDL Lifting Jack & Stand

The Tallest Safe D Lock^® (SDL) jack + POWERDRIVE safely achieves extended lifting heights and is a rated vehicle jack stand for heavy mining vehicles.

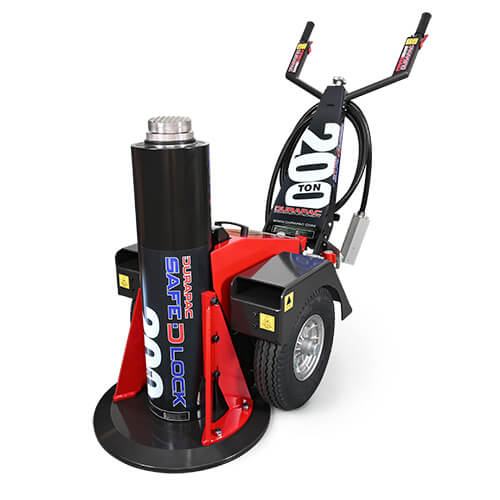

SDL-200960-PD-620_updated-to-200-sticker_SHADOW

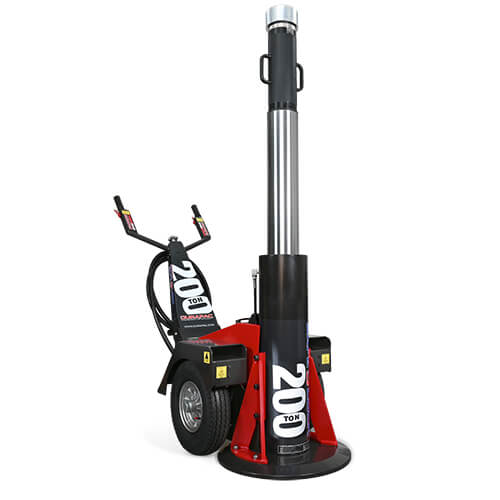

SDL-200960-PD-620_with-extensions_&_200-sticker_SHADOW

SDL-200960-PD-620_updated-to-200-sticker_NO-SHADOW

Extended Height

2,100mm extended height. Even when fully extended, this jack is compliant with Australian Standards for Vehicle Jacks and Support.

Gusset Supported Cylinder

These jacks have the tallest rated lockable height in our range due to the larger base plate and strengthened gusset supported cylinder.

Mechanical Quadrant Locks

Hold a minimum 3 x rated jack capacity without failure.

Aluminium Remote Pendant

Lock and unlock remotely. A 5 metre long remote lead allows the operator to be safely away from the lifting area during lifting lowering and locking. A magnetized back allows the Remote Pendant to be attached to the side of the truck or SDL, allowing free hands for other work.

+ POWERDRIVE

Dual independent DC motors powered
by two M18 Red Lithium™ batteries drive the wheels and can self-propel up slopes of 5 degrees.

Australian Designed and Built

Australian designed and built to meet AS/NZS 2693:2007 standard for vehicle jacks, it also meets AS/NZS 2538:2004 standard for vehicle support stands.

SDL-20096-PD-620 Extended

Model Number	Jack Capacity Metric (tonne)	Jack Capacity US (ton)*	Jack Capacity (kN)	Cylinder Effective Area (cm²)	Collapsed Height (mm)**	Stroke (mm)	Maximum Lift Height (mm)***	Oil Tank Capacity (L)	Weight (kg)
SDL-20096-PD-620	181	200	1,781	254	960	685	2,100	24	590

* Nominal Cylinder Capacity in ton - see kN values for actual capacity
** Includes load cap height of 22 mm
*** Maximum lift height for AS/NZS 2538:2004 Vehicle Support Stand Rating

Optional Extensions, Tilt Saddles & Load Caps

Model Number	Capacity (Tons)	Description	Diameter (mm)	Height (mm)	Spigot Depth (mm)	Spigot Diameter (mm)	Weight (kg)
SDS-150/200N	150/200	Serrated Tilt Saddle	126	59	60	50	5
SDE200-100	200	100mm Extension	141	100	60	50	8
SDE200-150	200	150mm Extension	141	150	60	50	8
SDE200-200	200	200 mm Extension	141	200	60	50	15
SDE200-300	200	300 mm Extension	141	300	60	50	15
SDE200-400	200	400 mm Extension	141	400	60	50	15
SDE200-500	200	500 mm Extension	141	500	60	50	15
SDLC-200	200	Serrated Steel Load Cap*	126	22	60	50	4

* Supplied as standard
WARNING - Do not stack extensions
