TJ-Series Toe

The TJ-Series Toe Jacks are a premium range ideally suited to lifting heavy machinery or equipment when access height is restricted. Toe lift capacities range from 2 - 25 ton and all models (except the TJ-2) feature a spring return piston.

Ease of Use

All jacks have been designed for ease of use and handling.

Carbon Steel Base

The carbon steel base is welded to ensure increased resistance to high pressure and provide greater durability.

360° Rotation

The pump handle rotates 360° on models 2 -15 ton. An operating handle is included for all models.

Internal Stroke Limiter

The internal stroke limiter prevents piston rod over-extension.

Lifting Toe

The lifting toe is manufactured from high
strength alloy steel.

Chrome Plated

The chrome plated steel piston rod resists corrosion and extends jack life.
Model No. Jack Capacity ton* Jack Capacity kN Jack Width (mm) Jack Depth (mm) Toe Length (mm) Toe Width (mm) Collapsed Height (mm) Min. Toe Height (mm) Stroke (mm) Weight (kg)

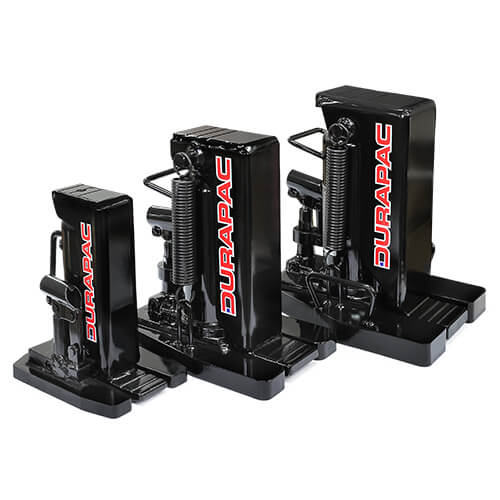

TJ-2 219.91451854550235141189

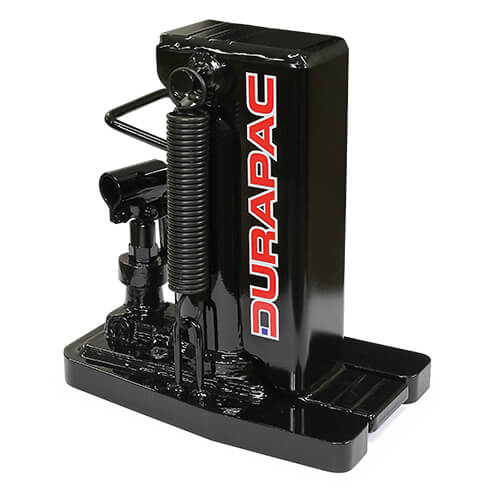

TJ-5 549.018527055702952512323
TJ-10 1098.023029560803303014132

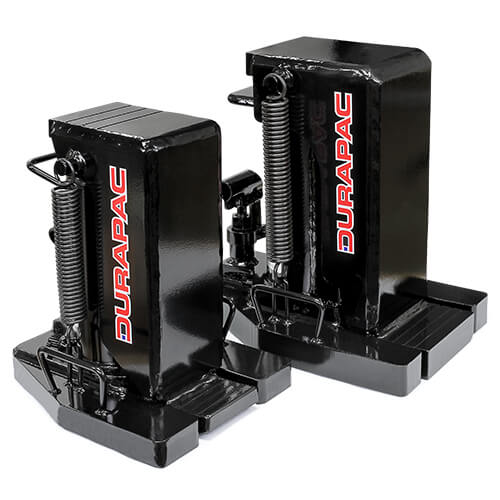

TJ-15 15147.0250315581003402816548

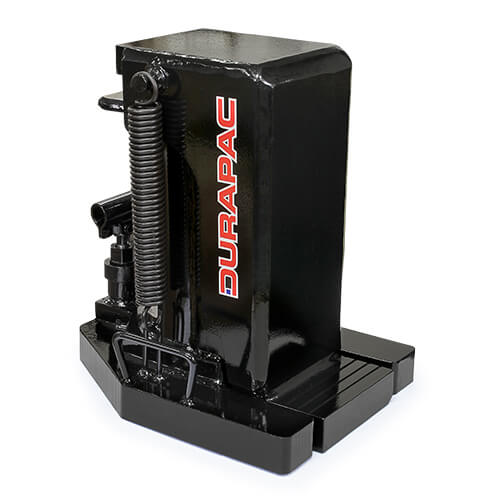

TJ-25 25245.1280345651453823812980
* Nominal Jack Capacity in ton - see kN values for actual capacity
