Power Pole Hydraulic Jacking System

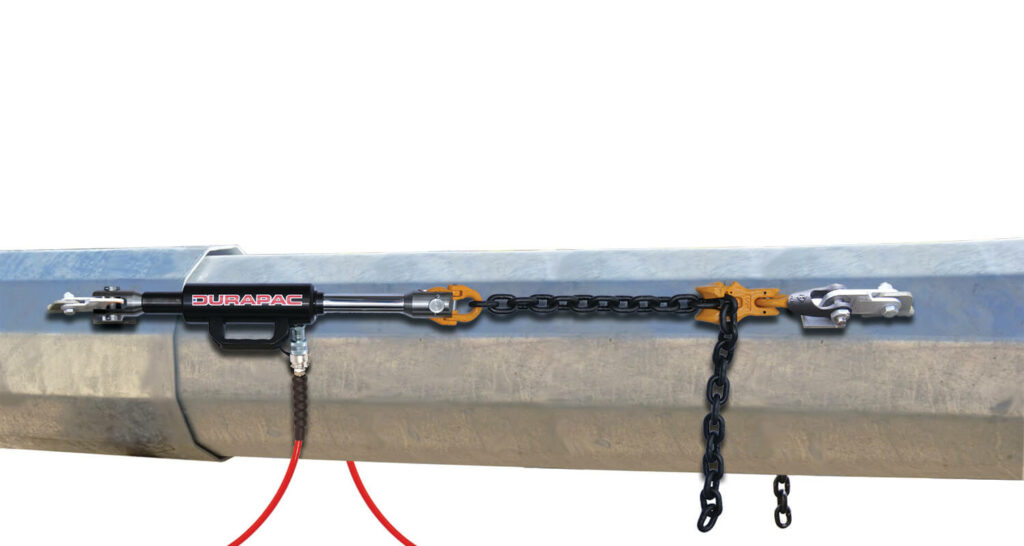

A Power Pole Hydraulic Jacking System has been designed in conjunction with industry specialists for the joining of steel power/communication pole sections using pulling lugs*, horizontally prior to erection.

Currently available in 20 or 40 tonne capacity with 2 x 10 Tonne or 2 x 20 Tonne capacity cylinders:

  • 20 Tonne: 2 x Pulling Cylinders – Durapac RAP-106 – Maximum system pulling force “20 tonne”
  • 40 Tonne: 2 x Pulling Cylinders – Durapac RAP-206 – Maximum system pulling force “40 tonne”

Due to varying manufacturers and designs of steel poles, the pulling lug* connections and clevis fittings are designed on application but following are possible components/options:

  • 2 x Durapac Pressure Gauges for adjustable force/pressure valve and accurate pressure settings
  • 1 x Durapac VMN-2 Needle Flow Control Valves for independent cylinder control
  • 1 x Durapac HPS-0606C 6 metre high pressure thermoplastic hose

Power Unit/Pump Options:

  • ELECTRIC – Durapac SPES4505NCL  Electric Power unit with VRV-1 adj pressure valve ***Specifically setup for pole jacking***
  • BATTERY – Durapac BP114A – 50.4 VDC high capacity lithium-ion internal battery with wireless remote control
  • MANUAL – Durapac P-2200 – 2 speed, steel bodied, hand operated pump

Optional Extras:

  • Force/pressure charts
  • Equipment storage case

* See solution for when jacking bolts are used
